Specifications

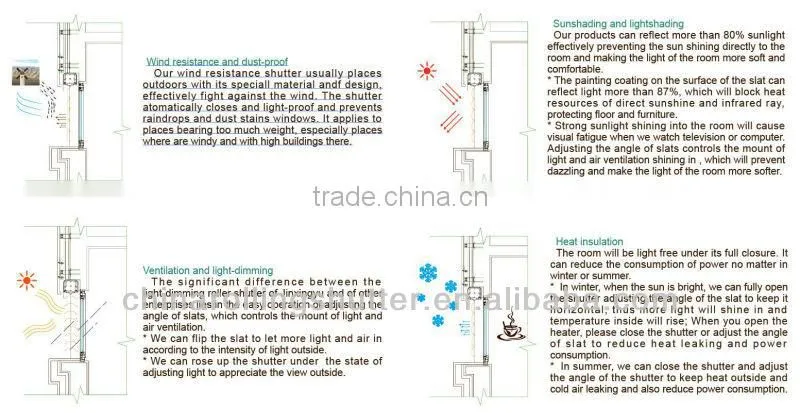

It is a product can be used in all-weathers for sun shading.The function of products
Advantages

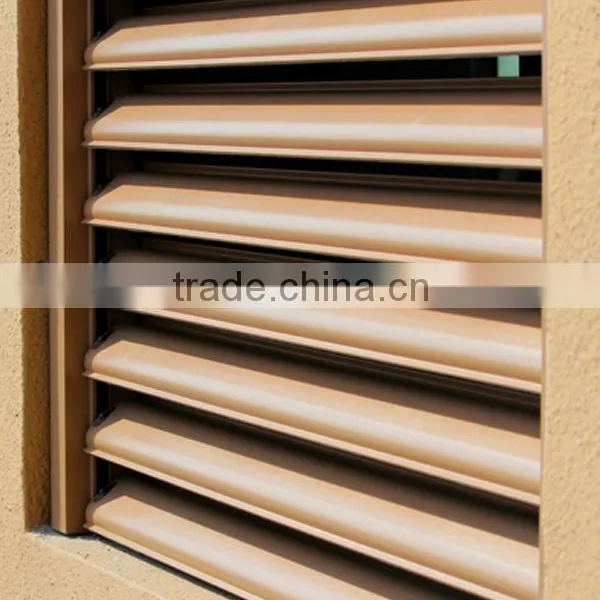

Modernized beauty design with slats
* Made with extruded aluminium magnesium alloy, thickness: 0.60mm, far more stronger than The normal blinds.
* Polyester painting, anti-scratch and rusty.
* Arch –style design, more strong wind-resistance.
* Turn around within 0-90 degree, it locks automatically when close completely.
Noise-resist design

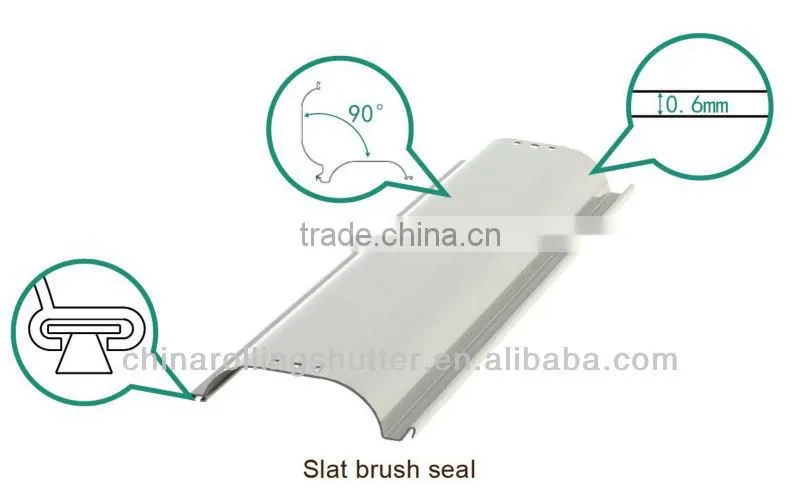

* At the bottom of every slat has a brush which can reduce the noise and friction when running.
* Guides with brush seal in both sides, to reduce the friction and noise when running.
Locks for wind-resistance system
* Wind-resistance lock system installed in the guides to fix the slats protecting the slats falling from guides.
Elegant appearance
* Slat operation and mechanism all hide in the side guides, simple and safety.
* Compact design, modernization.
High quality materials, more superior performance
* Aluminium box use with high strength extruded aluminium alloy, more strong for winds.
* Aluminium guides use high strength extruded aluminium alloy with strengthen strip, more strong for winds.
Reliance and durability
* Unique internal transferring way of side rail, more safe and reliable, with better capacity of wind resistance.

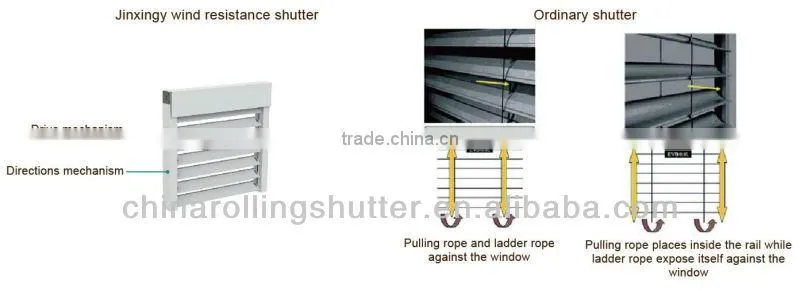

* Instead of using the ladder rope and pulling rope of traditional shutter, we choose durable chains to run.

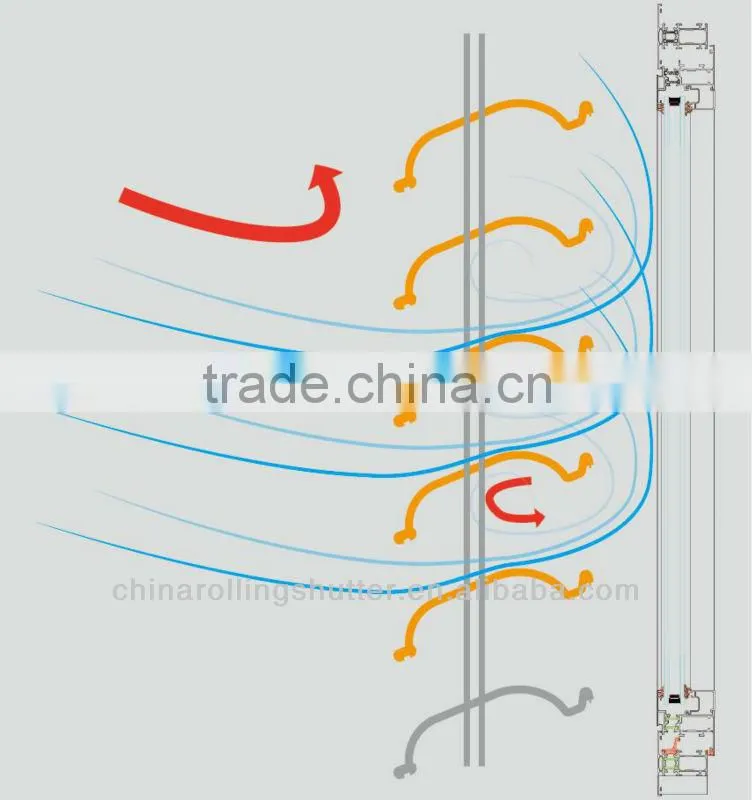

The sketch of the wind resistance shutter slat of fighting against wind
Under specified wind pressure, our sunshading products will not deform and demage;
Under safe wind pressure, our sunshading products will not derail to cause hidden danger.
The scale of wind resistance is 6 with the wind pressure of 600Pa, which equals to 25m/s of wind speed and 10 scale of wind power.

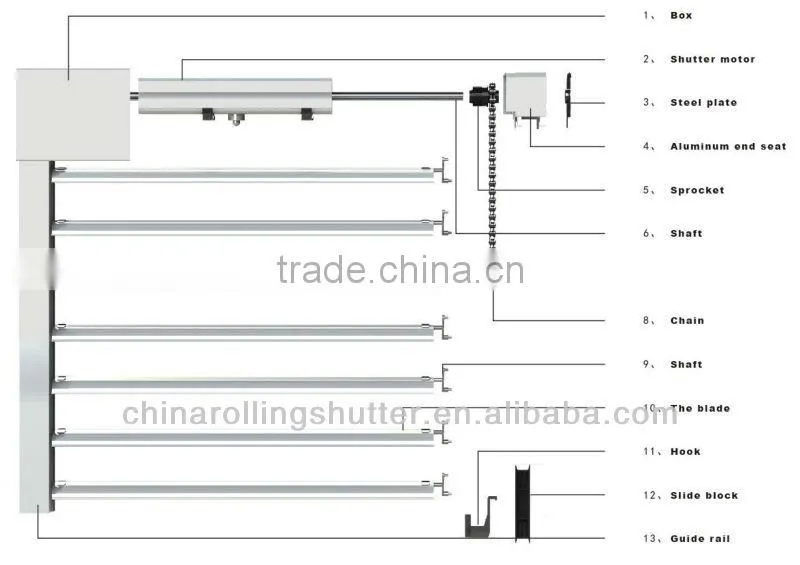

The Structure of Wind Resistance Shutter

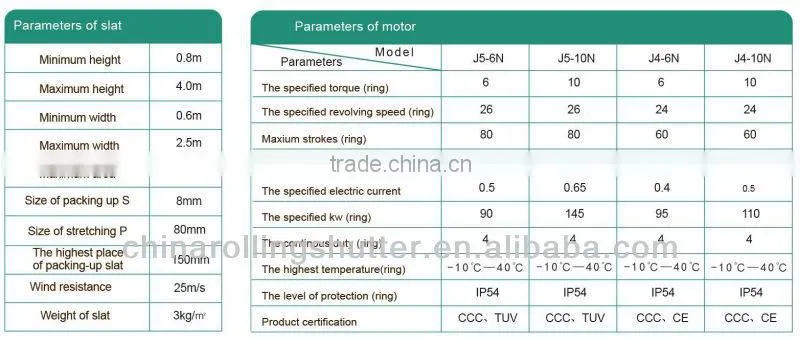

The parameters of wind resistance shutter slat
Installation Methods

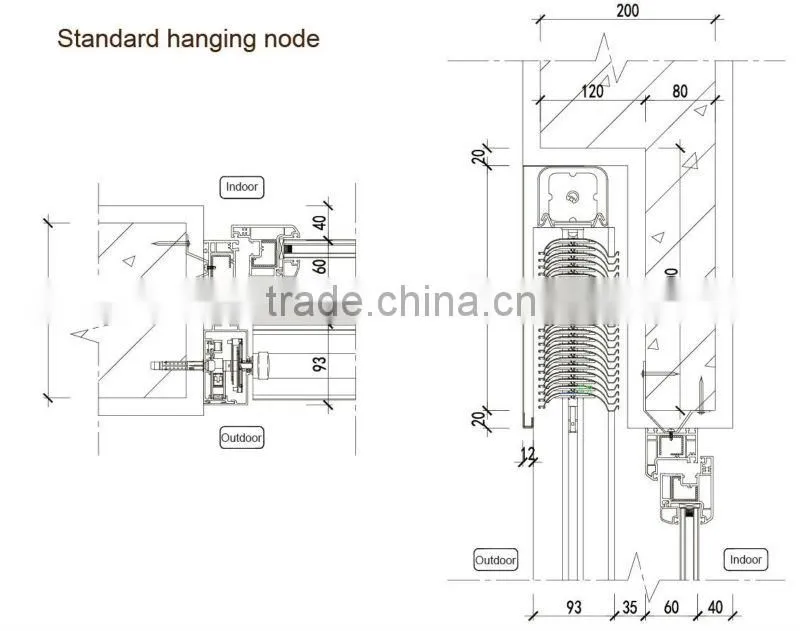

Blinds width 12 cm, conventional 20 cm main structure installable, thickening unnecessary;
Concrete hanging Structure of 30 cm highness and 8 cm thickness is added to at the lower position of structural beam, in order to improve indoor perception;
Production & processing based on real measurement of actual tunnel opening painted size;
Anchor bolt rear fastening installation; Comparatively high requirements on squareness of both sides of wall painting of tunnel opening;
Applicable interface types: coating, lacquer, tiles.

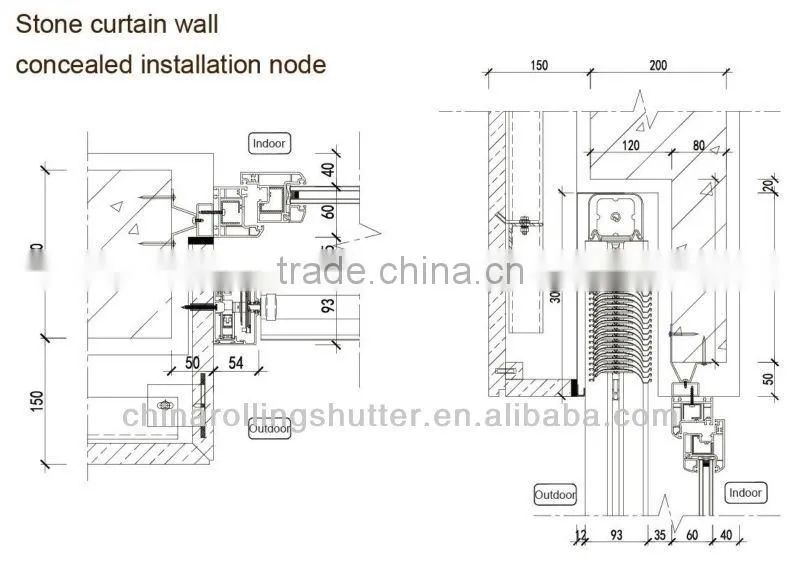

Blinds width 12 cm, conventional 15 cm of curtain wall control size, thickening unnecessary;
Concrete hanging Structure of 30 cm highness and 8 cm thickness is added to at the lower position of structural beam, in order to improve indoor & outdoor perception;
Production & processing based on real measurement of finished surface size of actual stone tunnel opening;
Exclusive stone anchor bolt rear fastening installation;
Comparatively high requirements on squareness of both sides of wall painting of stone tunnel opening.

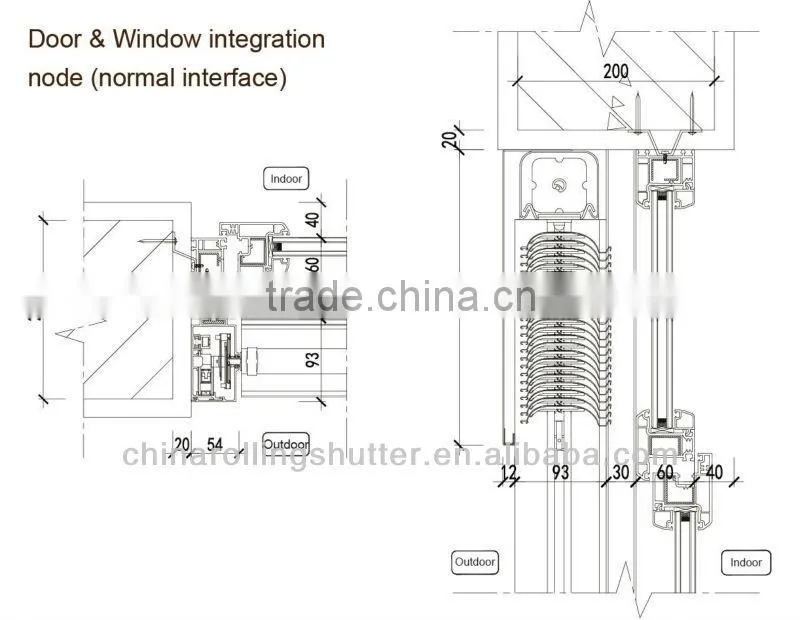

Blinds width 12 cm, conventional 20 cm main structure installable, thickening unnecessary;
Fixed window(frosted glass optional) installed as high as blinds casing at the top of door&window in order to improve indoor perception and meanwhile solve problems of high building indoor maintenance;
Produce & process based on door&window drawing scale; Connecting customer-built profile with window frame;
Inserting regulating block into blind guiding rail to correct it and clamping the bolt;
Finally buckling decorative strip to conceal all fastening screws and nuts;
Applicable interface types: coating, really shiqi, tiles.

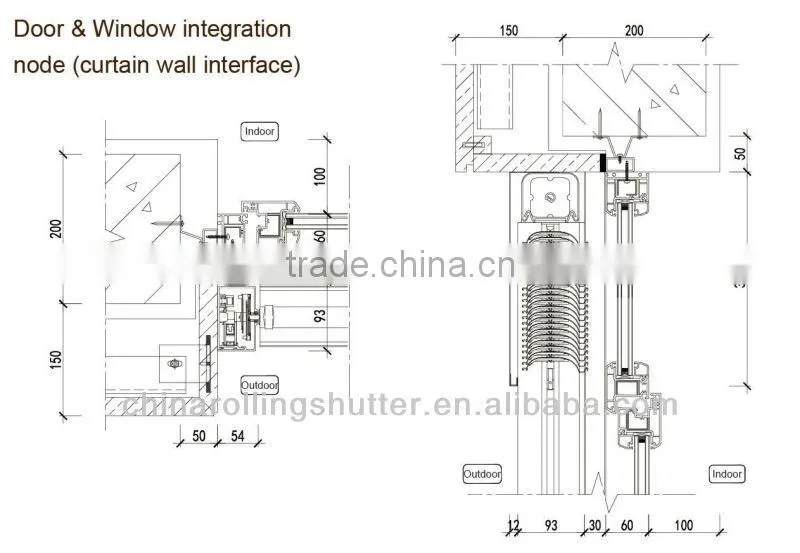

Blinds width 12 cm, conventional 15 cm of curtain wall normal control size, thickening unnecessary;
Construction integration with door&window, without any adjustment of related units construction node;
Construction space increase avoiding the possible problem of windowsill absence might caused by installation of external solar shading;
Fixed window(frosted glass optional) installed as high as blinds casing at the top of door&window in order to improve indoor perception and meanwhile solve problems of high building indoor maintenance;
Production & processing based on door&window drawing scale; Connecting customer-built profile with window frame; inserting regulating block into blind guiding rail to correct it and clamping the bolt;
Finally buckling decorative strip to conceal all fastening screws and nuts.
