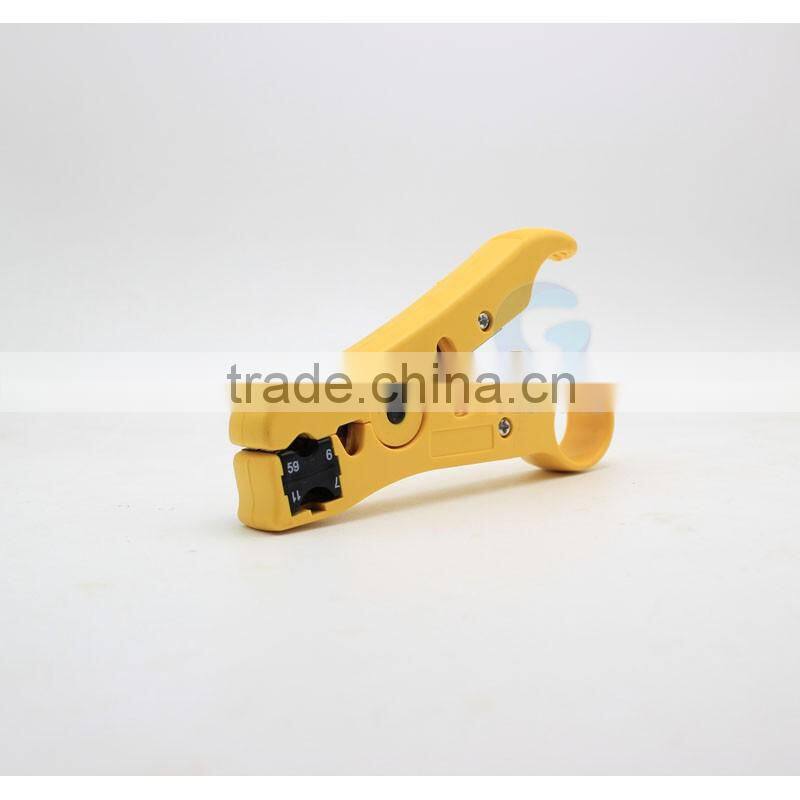

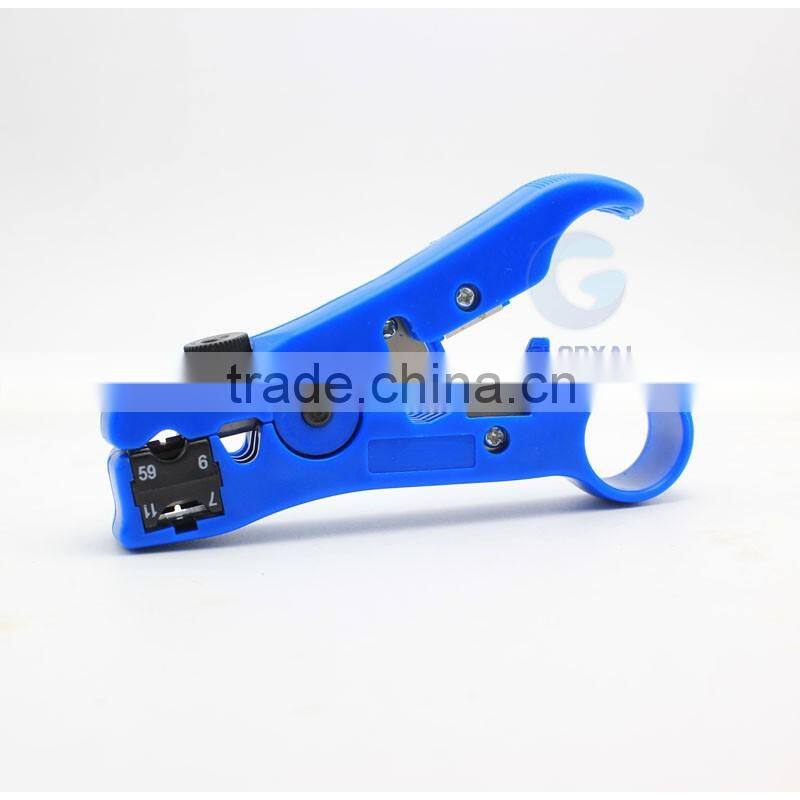

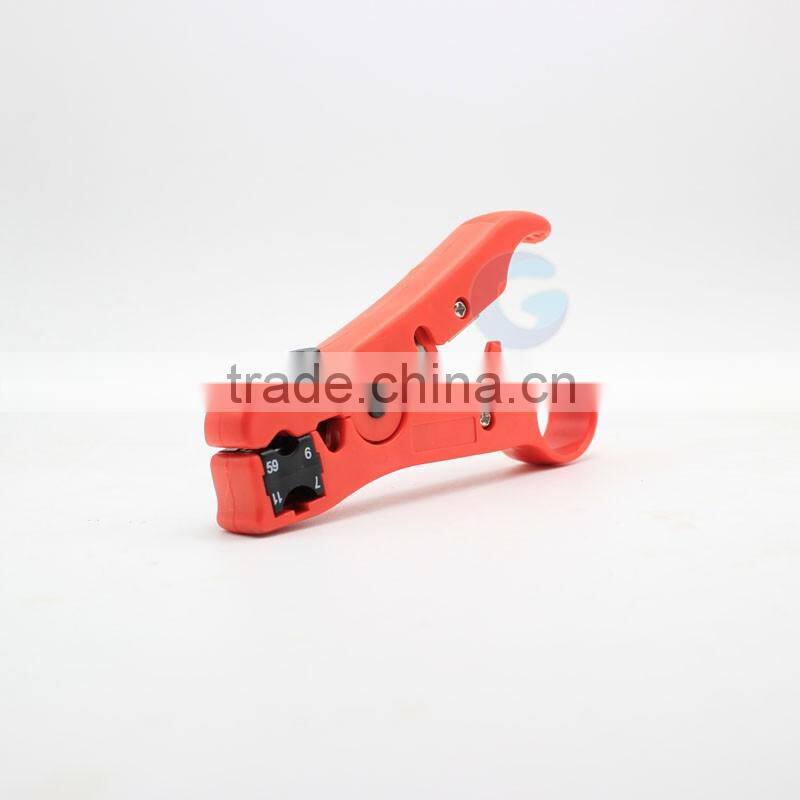

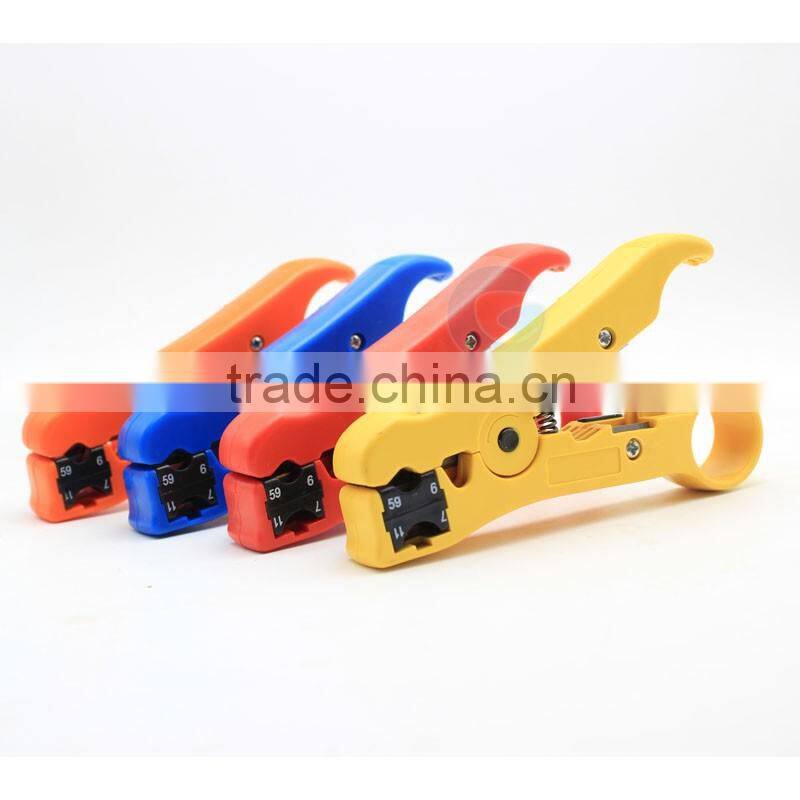

Network tool multi function UTP STP RG59 RG6 coaxial wire stripper

Network tool multi function UTP STP RG59 RG6 coaxial wire stripper

Features:

1.Strip outer jacket of UTP cable and cat5 round telephone cable

2.Strip rg59/6/7/11 coaxial cable

3.Strip flat telephone cable

4.Cable cutter function

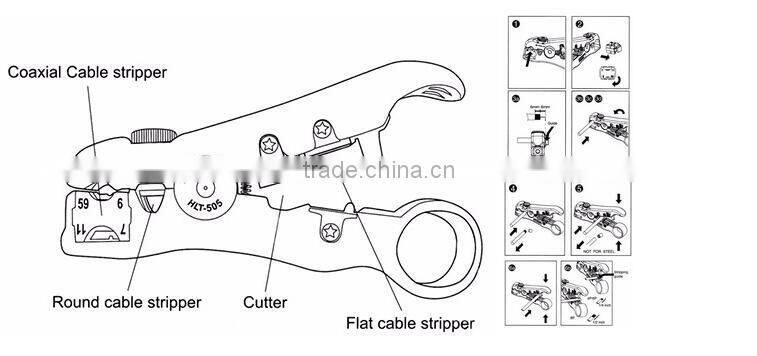

Instruction

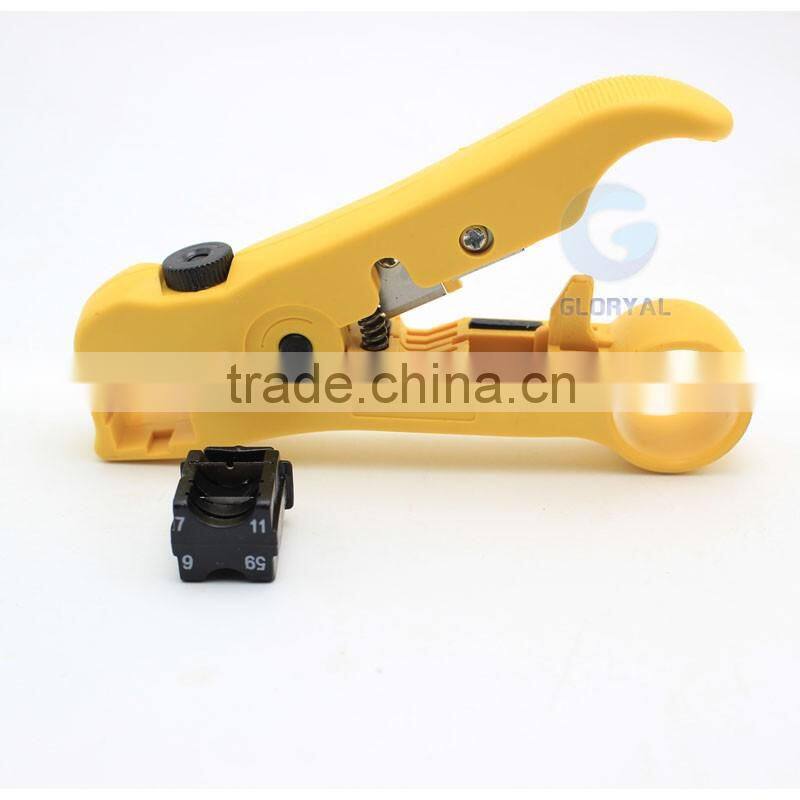

1. Push the cassette out of the housing, push from the front of the cassette.

2. Cassette is reversible, one side is available for RG-59/6 and another side is for RG-7/11

3. For stripping coaxial cable:

a. Insert the cable until it aligns with the cable guide.

b. Insert your index finger into the stripper's finger ring, rotate the stripper by counter clockwise 3-5 times.

c. Open the jaws and remove the cable. Pull away the outer jacket and dielectric to expose the inner conductor.

d. Stripping distance is designed for 6mm, for each dielectric and inner conduct.

4. For stripping round networking cable:

a. Insert the cable into the second stripping hole, rotate 1-3 times at counter clockwise, and then open the jaw and

remove the outer jacket.

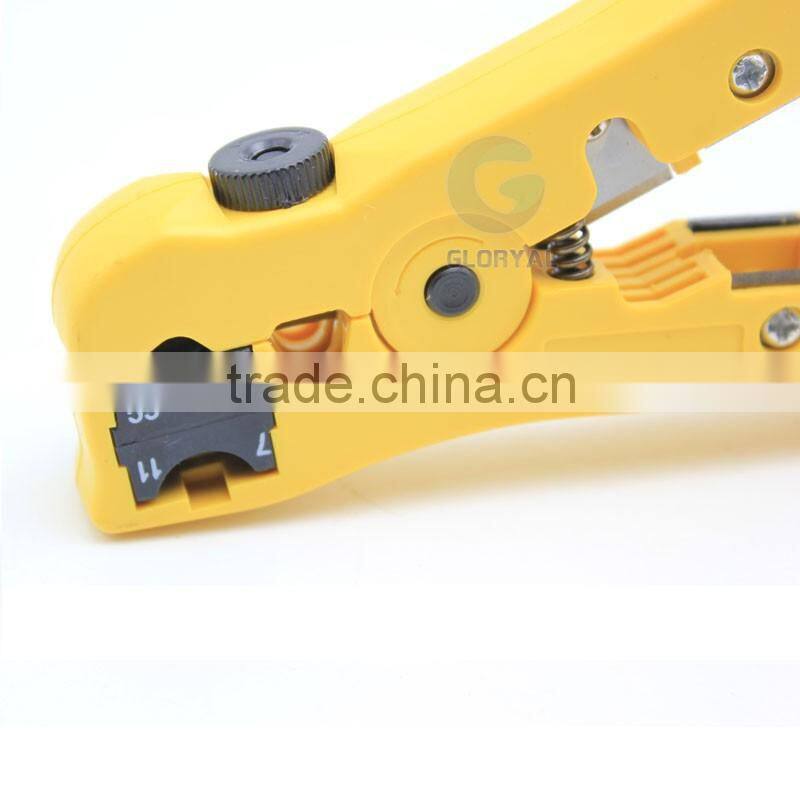

b. The black color adjusting knob is for adjusting the blade's depth. Turn clock wise for increasing the blade's depth

and counter clockwise for reducing the depth.

5. For cutting coaxial cable, round networking cable or flat telephone cable, place the cable in position and then

squeeze the handles.

6. For stripping flat cable, insert the cable between the stripper blades. Squeeze handles, cable must be kept

perpendicular and then pull from the tool.

a. Insert 4p/6p cable into the two-blade side of the tool's stripper until it touches the stop guide.

b. Insert 8p cable into the two-blade side of the tool's stripper and let it extend a little pase the lower cut blade.
