Help CenterAG-XB-Y1200 CE Approved Medical 2-channel Electronic Large Volume Infusion Ivac Pump
Related Products
-
AG-M001 CE ISO Approved Anti-decubitus Hospital Bed MattressNegotiableMOQ: 100 Sets -
AG-M008 Hospital Waterproof Mattress With LegsNegotiableMOQ: 100 Pieces
-
AG-M010 CE ISO Approved Water-proof Medical MattressUS$ 10 - 100MOQ: 100 Pieces
-
AG-IRW003A Hospital Baby Radiant WarmerNegotiableMOQ: 10 Sets
-
AG-SS009 Material Stainless Steel IV Pole StandNegotiableMOQ: 10 Pieces
Specifications
ivac pump1 iv electronic ivac pump
2 Medical livac pump
3 CE ivac pump
4 ISO ivac pump
ivac pump

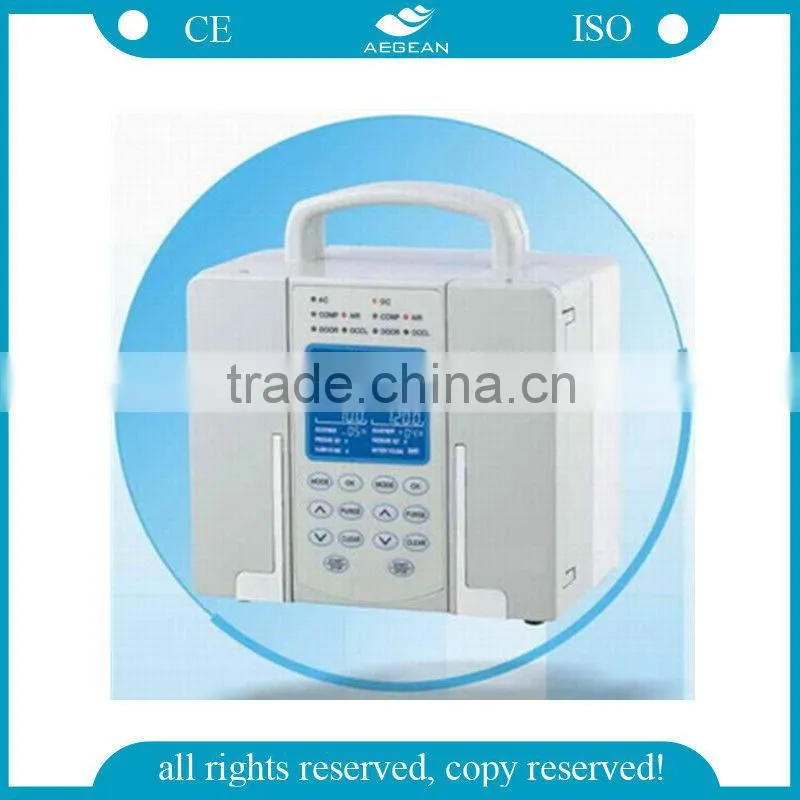

AG-XB-Y1200 CE Approved Medical 2-channel electronic large volume infusion ivac pump
Keen Alarms
Once the pump works, the alarms (Air, Occlusion, Low battery, door open, infusion complete) start. The pressure of the occlusion can be adjusted through the pressure sensor for suiting different kinds of infusion set.
Adopting to a wide range of voltage
The AG series pump can work normally, when the voltage is from 90V to270V
KVO function
When completing infusion, the pump can switch into KVO automatically
Low power consumption and noise
The total power consumption is less than 18VA and the noise is lowered a lot because of fine circuit design and reasonable mechanical drive
Fine after-sale services
We provide two-year free maintenance and lifelong maintenance for the pump. You can be assured to use the product.
| Flow Rate Range | 0.1-1200Ml/h |
| Matched Tube Type | Match all types(PVC), The special tube should contact supplier |
| Adj. Infusion Range | 999Ml |
| Infusion Precision | ±3%(Adj.) |
| KVO Speed | 1-3Ml/h |
| Beep & Led Alarms | Power switch/occlusion/air in tube/door open/infusion finished/low battery/no operate/tube error installed/ no medicine liquid/tube spoilage |
| Drop Ctl Precision | No |
| Drop Scan Sensor | No |
| Air Scan Sensor | Ultrasonic |
| Pressure Range | 30Kpa-160Kpa (High, Middle, Low Adj.) |
| Beep Adj.Range | High, low |
| Ac Power | AC100V-240V±10% 50Hz-60Hz |
| Insider Battery | NI-MH Battery(12V): Infusion time≈4hours with battery Lithium cell(12V): Time≈6-12hours with battery |
| Power consumption | Less than 18VA |
| Security Classification | Class I, BF type |
| Working Condition | Temperature±5°C-+40°C Humidity 20%-90% |
| Purge | Yes |
| Ml/h: drop/min | Auto Change |
| Dimension | 188*115*196mm |
| Weigh (kg) | 3.8 |

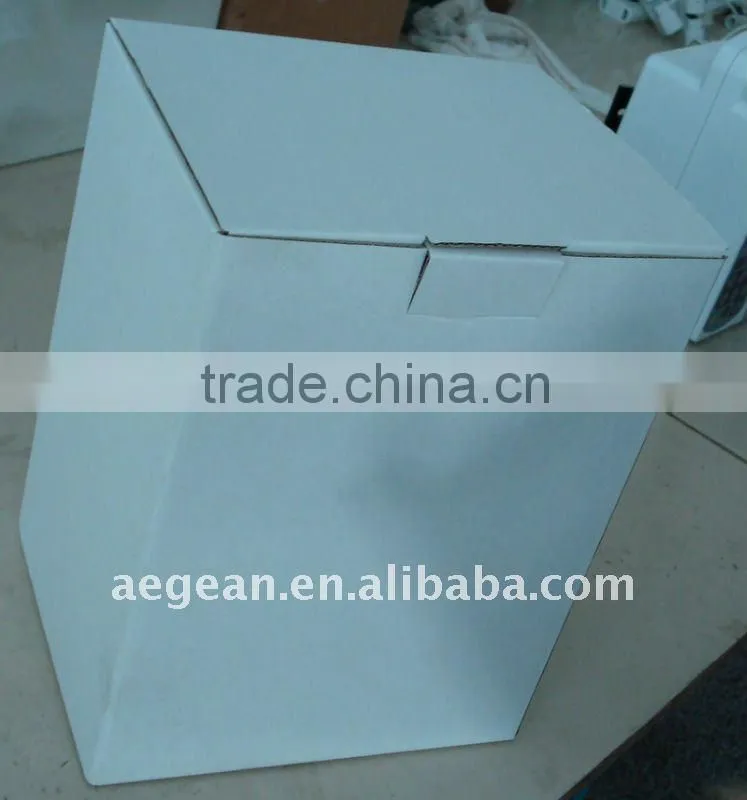

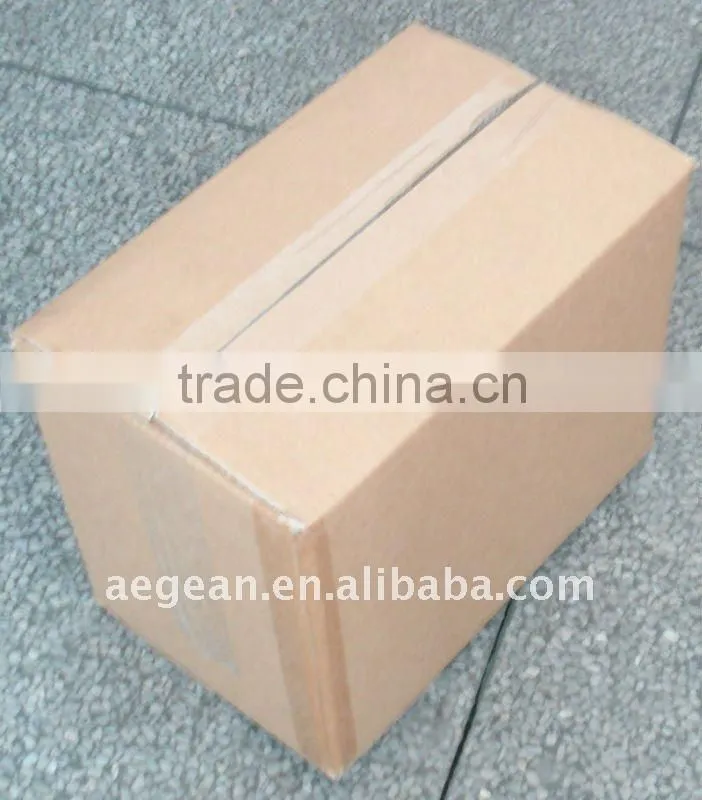

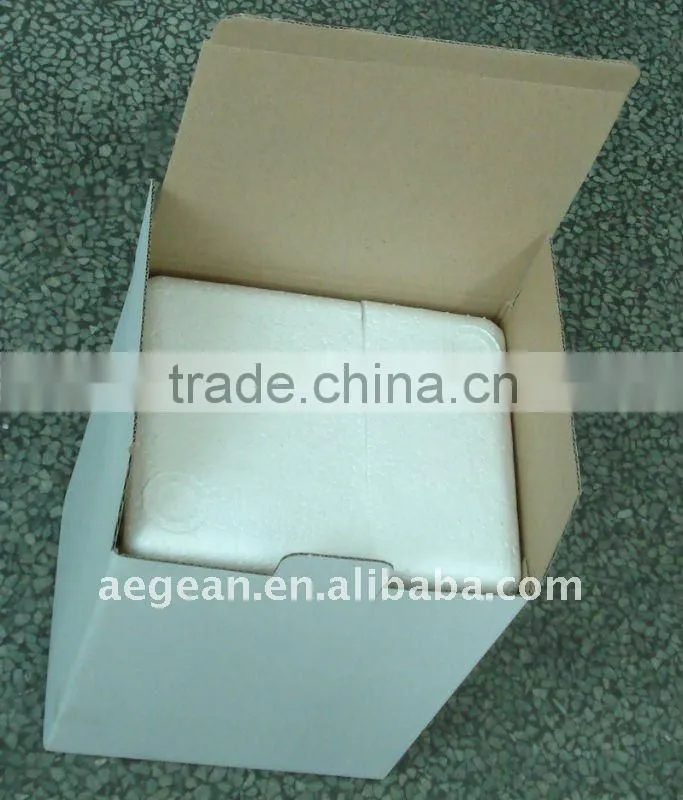

Packing:

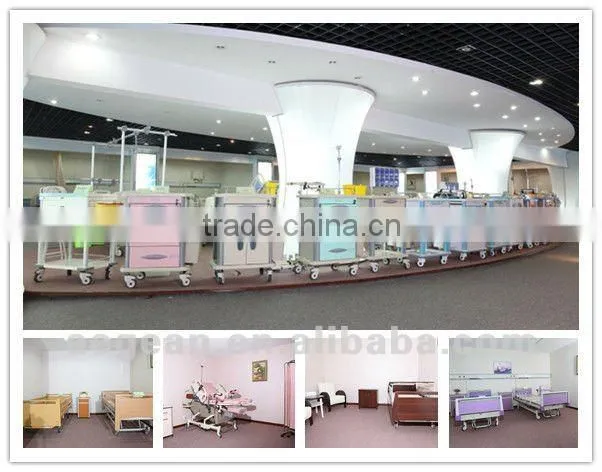

Show Room
Foreign friends

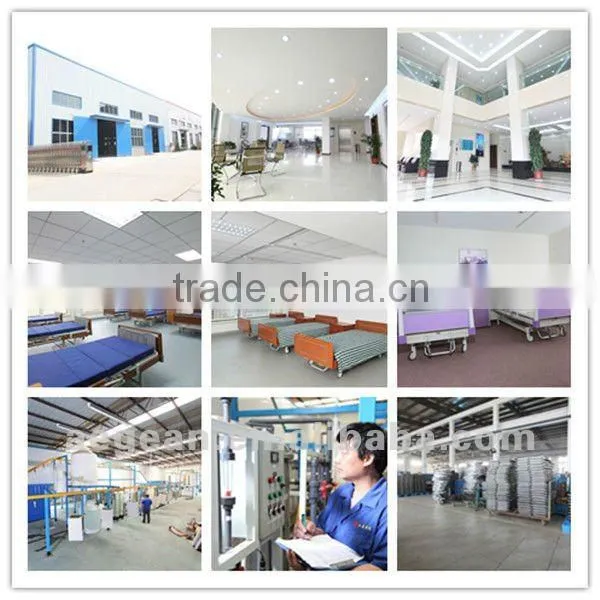

Factory
Process of production
