Half Auto Candle Machinery and Equipment Filling Line

Specifications

Detailed Product Description

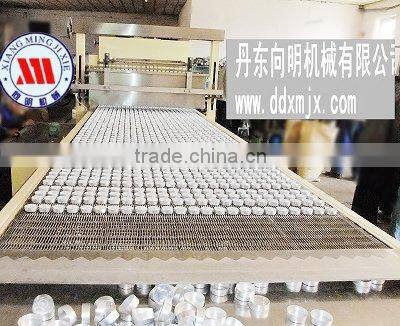

 Candle Making Machine Half Automatic Filling Line: Half Automatic Filling Line making machinery

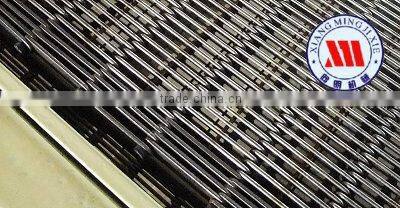

 conveyor belt length is 32M, width is 1M

 Half Automatic Filling Line:

 1 Suitable for paraffin, palm wax, stearic acid

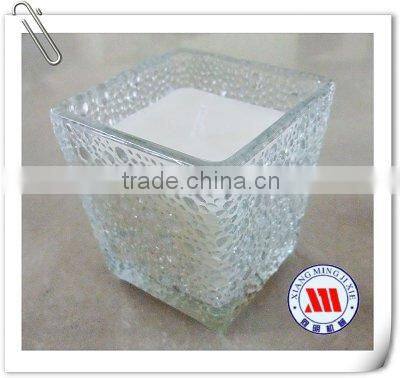

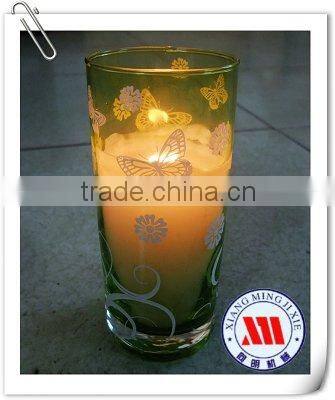

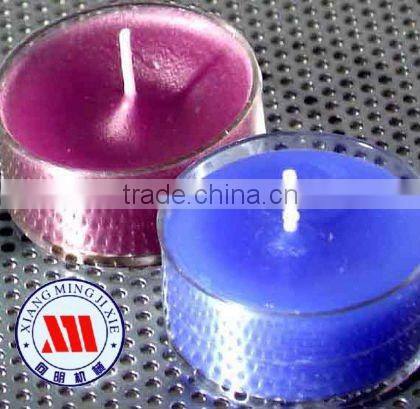

 2 Suitable for T-light cup, glass or other container
 3 Filling line

 4 High quality candle machine

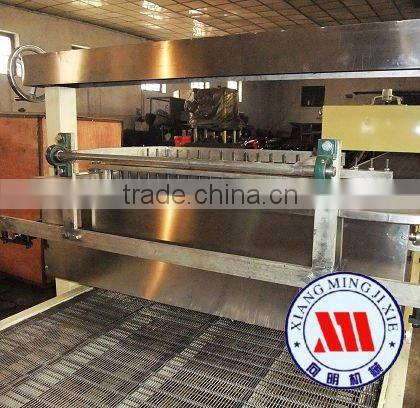

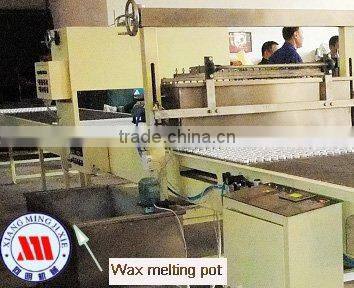

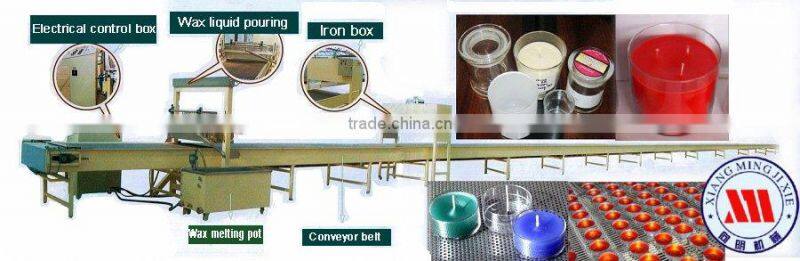

 The product consists of carrying trap, pour-in box, wax-melting box and smoothing box.

 The wax liquor will be hold up to the filling head through the lift pump in the pour-in box and sent

 to the bottom of the pour-in box by the carrying trap. The pour-in value will be open as soon as

 the photoswitch detect the container and the pour-in is over.

 The pour-in products will be cooling across the carrying trap and will be moved to the bottom of

 smoothing box if they don't need to be poured-in twice, in which the surface of the wax products

 will be smoothed to the best pour-in level ( or put the smoothing box in front of the pour-in box )

 The product is suitable for pouring in the container which the diamter is below 110mm.

 The product is easy to operate and the digital display makes it easy to set the pouring-in

 temperature and time. It is widely used in cadle enterprises.

 Model Type: XM-GZX1000

 Output: 18000pcs/hour (small tealight)

 Power Supply: 380V

 General Power: 15.3kw

 Gross Weight: 1800kg

 The production of 12 meters, 24 meters, 28 meters, 36 meters, 48 meters.

 We have supplied our machines to many countries, such as Vietnam, Malaysia, Thailand, India, South Africa, South America, Russia, Oceania and so on. According to our experiences we can

choose a suitable machine for you. We have been in this field for more than 15 years, based on

our strong machining tool facilities, high level technicians, patents and know-how, our candle machines have been enjoying it's famous reputation both in domeatic and international markets.

We think we can have a very good opportunity to cooperate between our two party companies   for using our tea light machine line or other candle machines in order to lower your production

expenses and increase your candles qualities.
