AG-BU007 Carrying Ultrasound Scanner B Mode Ultrasonic

Name: AG-BU007 Carrying Ultrasound Scanner B Mode Ultrasonic
Brand: AEGEAN B mode ultrasonic
SKU: 108894565
Availability: InStock

US$ 1,629 - 1,659 MOQ: 1 Set

Key Specifications

Type:

Portable Ultrasonic Diagnostic Devices

Brand Name:

AEGEAN B mode ultrasonic

Model Number:

AG-BU007 B mode ultrasonic

Jiangsu Aegean Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Type Portable Ultrasonic Diagnostic Devices

Brand Name AEGEAN B mode ultrasonic

Model Number AG-BU007 B mode ultrasonic

Place of Origin Jiangsu, China

B mode ultrasonic

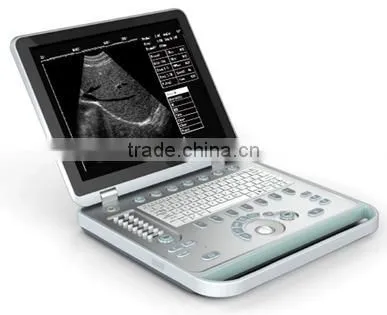

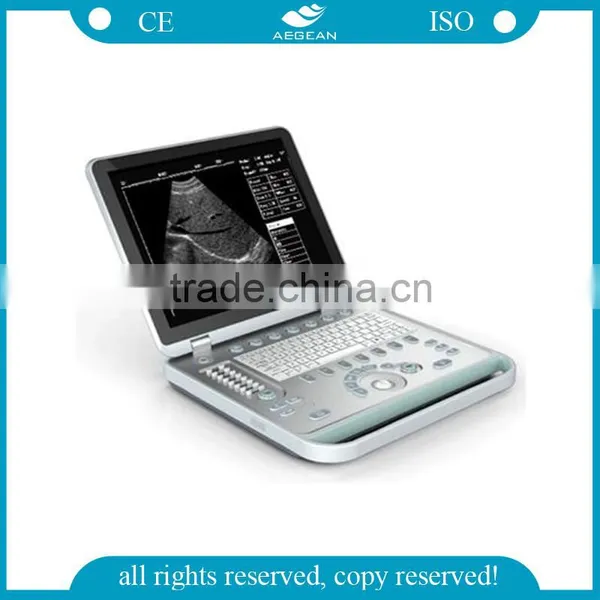

AG-BU007 carrying ultrasound scanner B mode ultrasonic

Product Description

Display size: 15 inch TFT
Scanning manner: Electronic convex array, electronic linear array
Working frequency: 2.0MHz~10MHz
Display mode: B, B+B, B+M, M, 4B
Scanning range: Convex array 60°~150°
Amplification factor:1.0, 1.2, 1.5,2.0
Gain control: 8 segments TGC and overall gain can be adjusted respectively
Image processing: 8 γ corrections, frame correlation, point correlation, line correlation, digital filtering, digital edge enhancement and pseudo color processing, etc
Image gray-scale: 256 levels
Scanning line number: 512 lines/frame
Frame rate: 30 frames/second
Digital scanning conversion: 512×512×8 bits
Memory capacity: ≥2GB
Conventional measurements: distance, perimeter, area, volume
Obstetric measurement: gestational weeks (BPD, GS, CRL, FL, HL, OFD, TTD, AC), expected date of confinement and fetus weight, etc.
Report function: auto make report
Battery capacity: 3000mAH/7.4V,can work more than 2 hours
Display screen: 15" TFT
Output interface: USB port, video.
Overall size: 362mm×340mm×60mm
Total weight: 4Kg(with battery)
