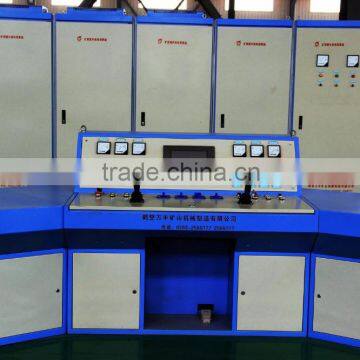

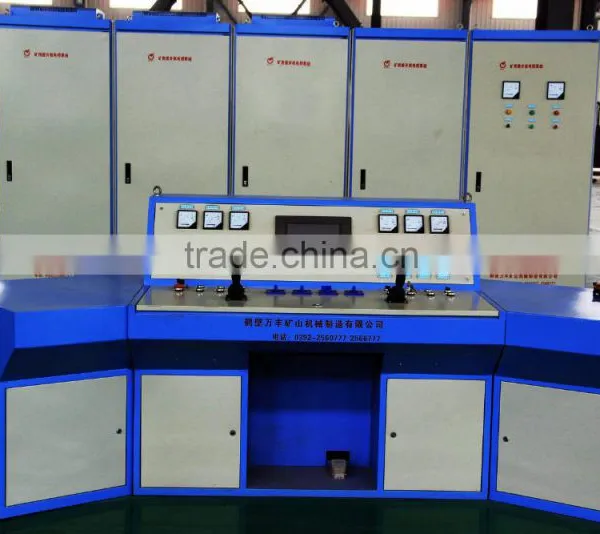

Mine Hoist Winder Equipment for Sale photo-2

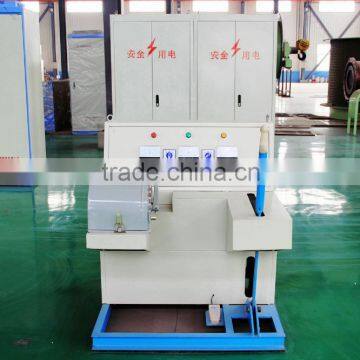

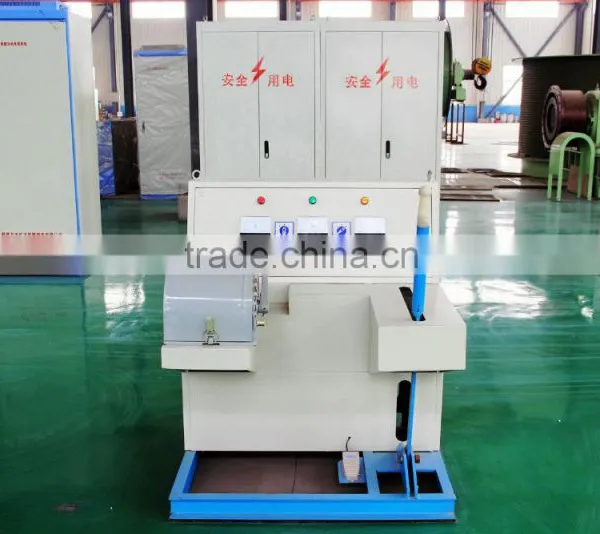

Mine Hoist Winder Equipment for Sale photo-3

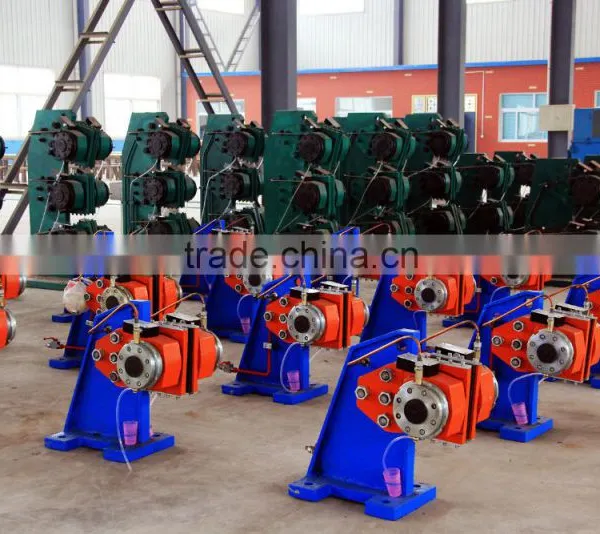

Mine Hoist Winder Equipment for Sale photo-4
Mine Hoist Winder Equipment for Sale photo-5
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
Wanfeng mine hoist winder equipment
Model Number:
JTP-1.6X1.5P mine hoist winder equipment
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Henan, China
Brand Name Wanfeng mine hoist winder equipment
Model Number JTP-1.6X1.5P mine hoist winder equipment
Condition New
After-sales Service Provided Engineers available to service machinery overseas

mine hoist winder equipment for sale







mine hoist winder equipment for sale  Product name of mine hoist winder equipment:





Product Presentation of mine hoist winder equipment:



The mine hoist are used to lift materials, equipment and people in coal mine ,iron mine, metal mine and non metal mine inclined roadway and small shaft.



Working Principle of mine hoist winder equipment:



The motor transmits power to the  drum which wrapped by wire rope through the reducer to lift and lower the



container. The speed is adjusted by electric drive. the braking of disc brake via hydraulic and electric system.



Position indicator system shows the depth of the container.  The control  system integrating the motor, electric



and hydraulic pressure supervises  and protects the whole equipment through a variety of sensors and control elements.Internal and external information transmission is carried out by the computer and the internet technology.





mine hoist winder equipment for sale  Parameters of mine hoist winder equipment:



Model

JTP-1.6X1.5P

Safety standards number

MCH090146

KCH090086

Drum

Quantity(pcs)

1

Diameter

1600mm

Width

1500mm

Wire rope

Max. diameter

26mm

Max. static tension

45KN

Max. differential static tension

/

Hoisting speed

1.94-2.57m/s

Rope Capacity of drum

Rope capacity of one layer

226m(with spare ropes)

Rope capacity of two layers

491m(with spare ropes)

Rope capacity of three layers

767m(with spare ropes)

Reducer

Speed Ratio

20/24/31.5

Motor

power

110-132KW

Rotate speed

730-970r/min

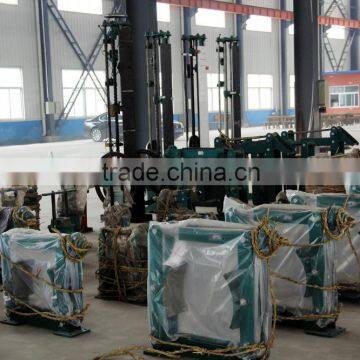

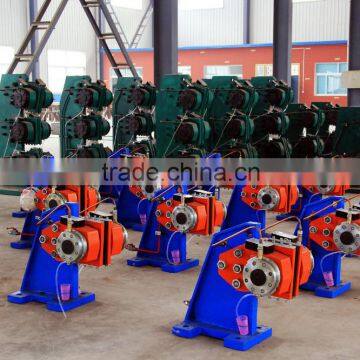

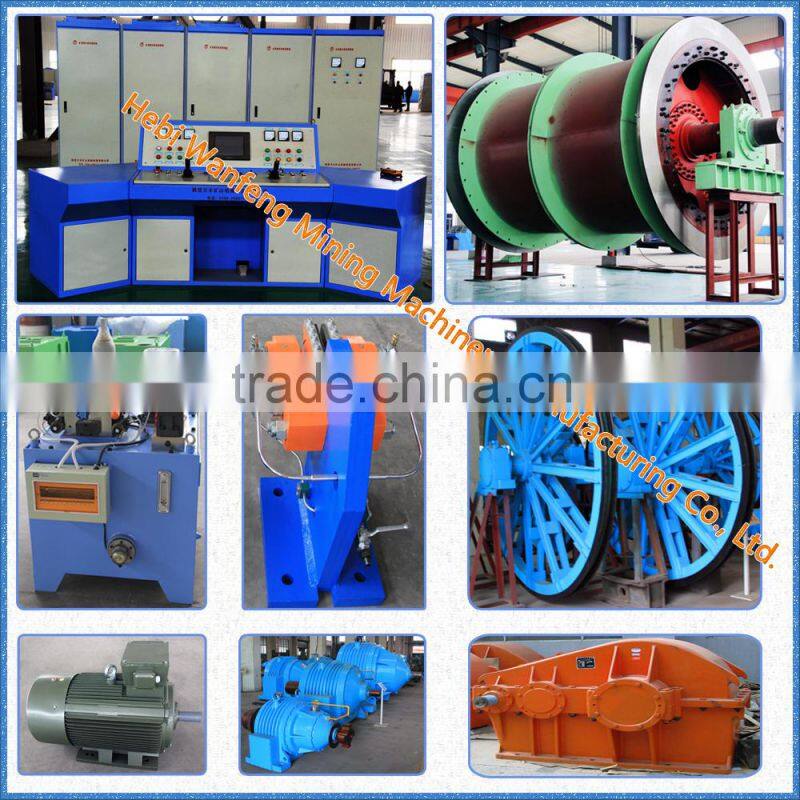

mine hoist winder equipment for sale  Product details of mine hoist winder equipment:



mine hoist winder equipment for sale



  mine hoist winder equipment for saleProduction process of mine hoist winder equipment:



mine hoist winder equipment for sale

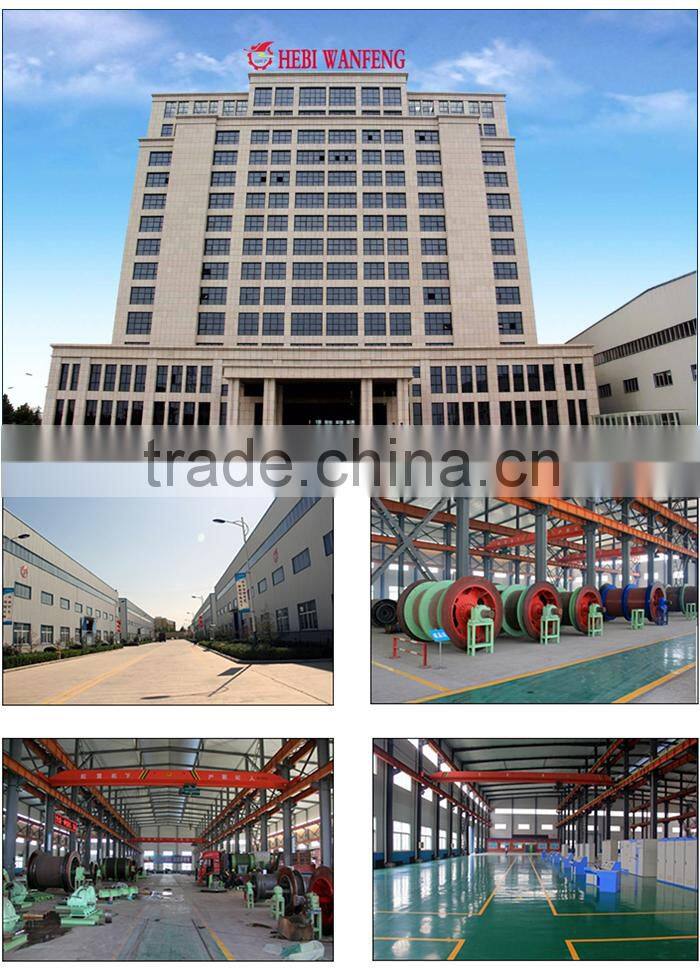

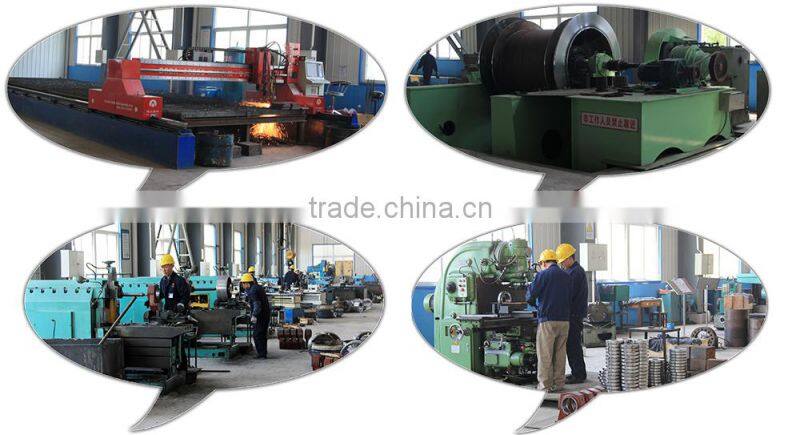

mine hoist winder equipment for sale Factory process of mine hoist winder equipment:

mine hoist winder equipment for sale



 mine hoist winder equipment for sale Certification of mine hoist winder equipment:



mine hoist winder equipment for sale

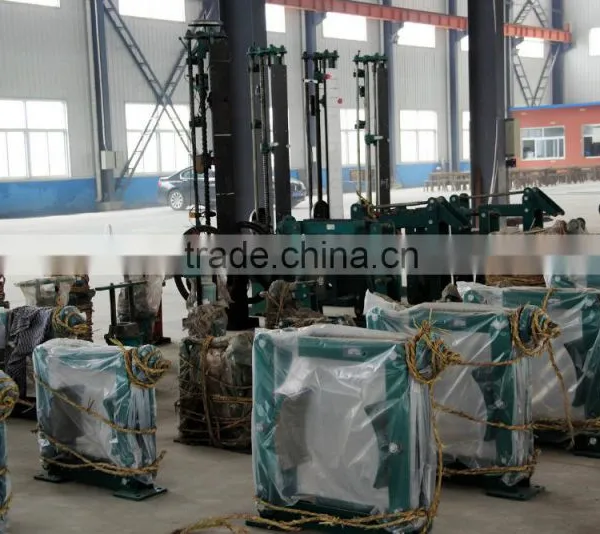

 mine hoist winder equipment for sale Package & shipping of  mine hoist winder equipment:

Packaging & Shipping

 mine hoist winder equipment for sale     mine hoist winder equipment for sale



mine hoist winder equipment for sale     mine hoist winder equipment for sale





Payment Terms:



50% T/T deposit in advance,the balance 50% is paid by T/T before dispatch





30% T/T deposit in advance,the balance 70% is paid by T/T before dispatch





We also accept the L/C at sight
