square steel tube bending machine
1) All parts are tested and assembled with strict quality control to meet the specification of ISO9001 and CE standard
2) Micro computer control
3) Direct Acting Hydraulic clamping
4) Easy Operator Interface and Easy Data Input
5) Large Program Storage Capacity
6) Automatically lock angle
7) Angle changing is controlled by coder
8) High Bending Accuracy
9) Self Diagnosis and Error Messages
10) Optional Boost Facility
Specification/Model |
SB-63NC |
Max bending diameter× wall thick |
Φ60×3mm for steel pipe
|
Max bending radius |
R300mm can be increased according to customers' option |
Min bending radius |
R95mm |
Max bending angle |
190° |
Standard core length of wear |
2000mm can be increased according to customers' option |
Control system |
Micro computer |
Number of tube elbow |
16 |
Store part number |
16*16 |
Oil motor power |
5.5kw |
Max pressure |
14MPa |
Size |
260*60*100cm |
Oil tank |
200L |
Weight |
1250kg |
Hydraulic system |
Magnetic valve |
Cooling |
Water cooling |

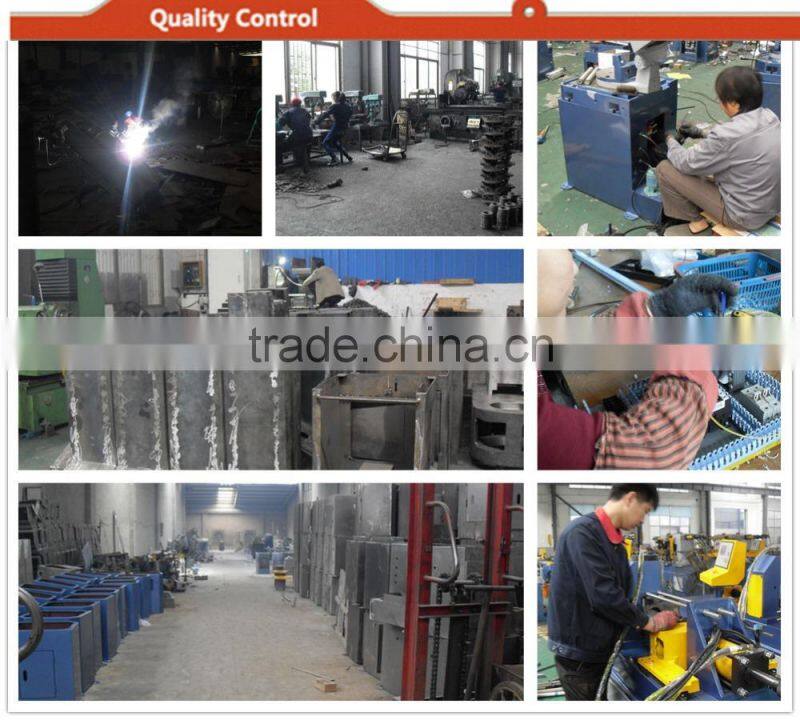

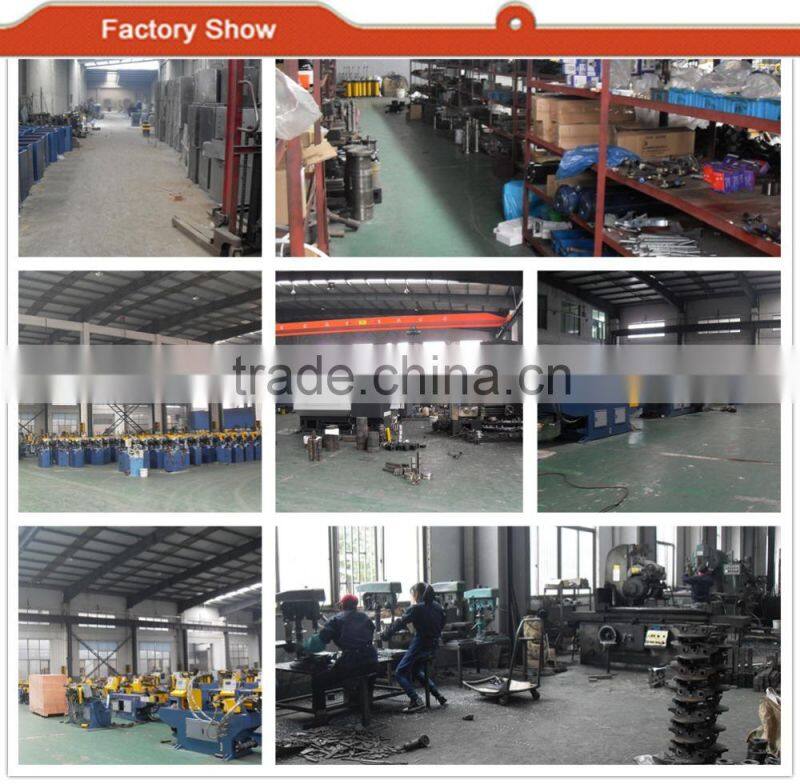

work shop

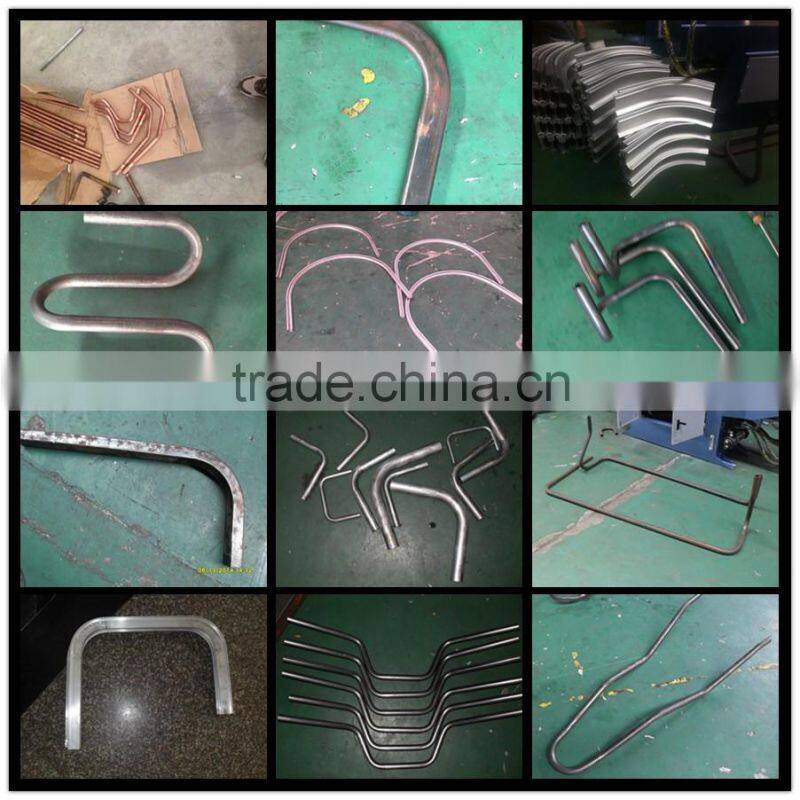

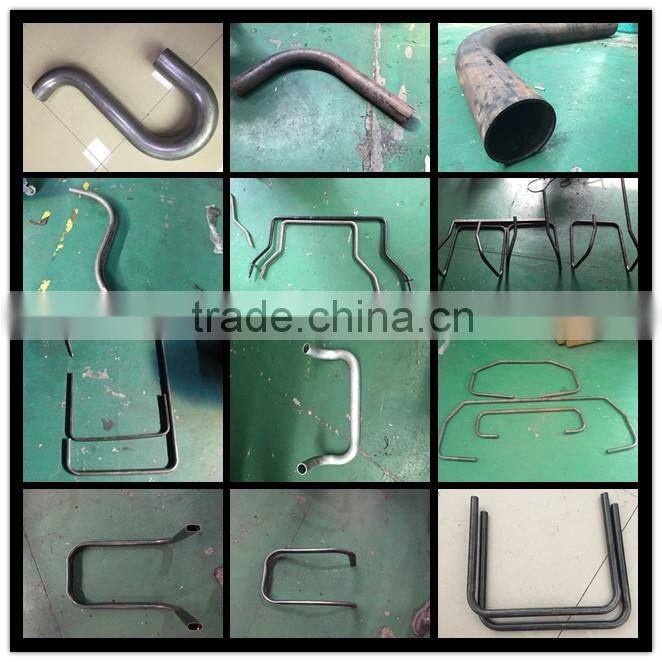

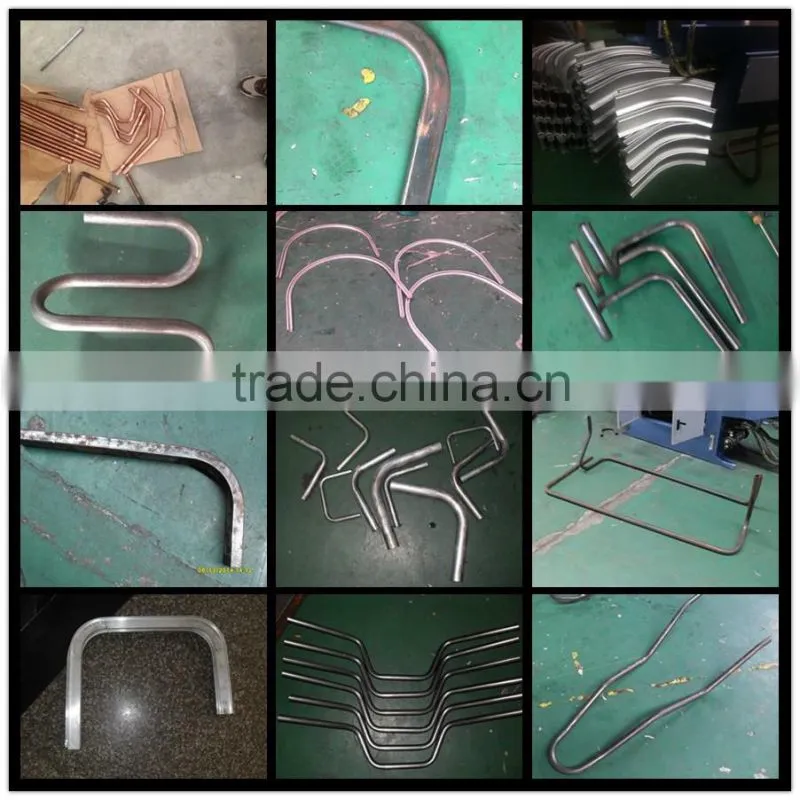

samples made by our machine
Customer visiting

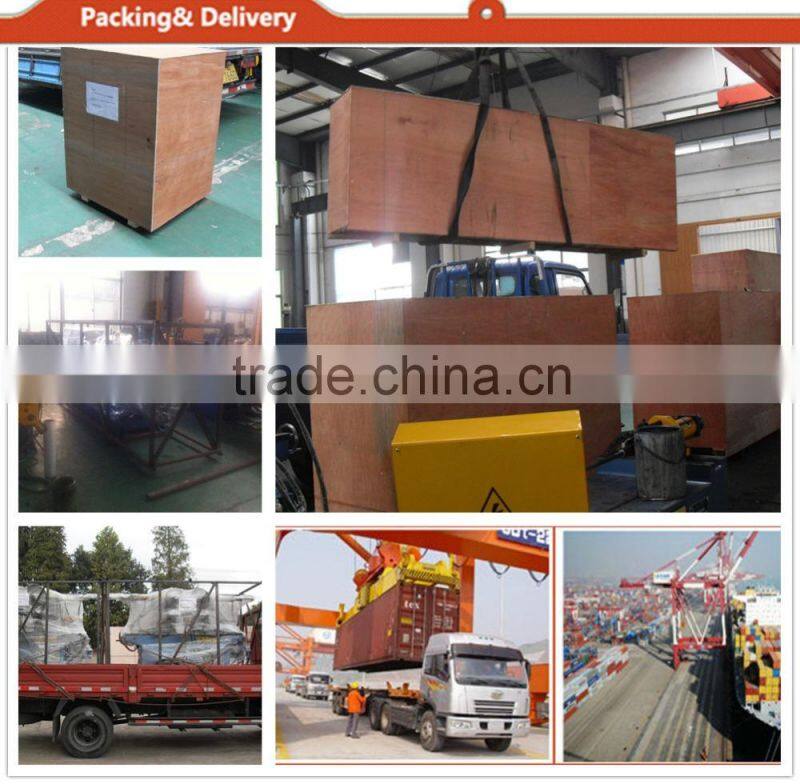

packing and shipping
