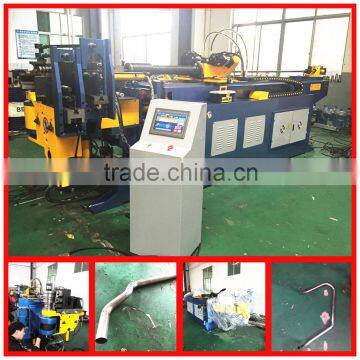

die bending machine
1.Electric control system: adopts famous controller in Japan, for example, the servo driver,servo motor, location mould group, CPU ad so on . From Mitsubishi which is of high capability and excellent steadiness.
2.Extra large CPU of Mitsubishi can store 400 groups of file editions. When the storage space is inadequate, transform software can be installed in the computer and then the files can be stored in hardware so as to expand edition groups indefinitely.
3. operating system is installed in the touch screen to match with Mitsubishi servo motor system. Therefore , apart from advantage of Mitsubishi servo driver, it owns the convenience of file management of operating system. It can also store the files in hadrware or disk to indefinitely expand edition groups(optional).
4.Function of automatically detecting error and fault, which is displayed on the screen for operators to cancel the fault easily.
5.All the process document are inputted by touch control screen.
6.Each bending tube can set compensation value, speed and gap between stripping according to the variety of different material.
7.Every bending of the tube can set separately compiles 5 move orders, 10 speed matched for operators' use. It will improve working efficiency and decrease interfere points of tube pieces.
8.Touch control screen can transform between Chinese and English. Display of other language.
9.Material feeding way can be selected in straight or clip feed according to different needs.
10.XYZ coordinate can be automatically changed into YBC process value.
11.Document are protected by key to prevent them from being amended by random.
12.Electric system is matched with heat exchanger for automatic cooling. You can also select numerical control air conditioner to maintain the use life of electric system.
13.It is equipment with automatic adding oil system to decrease friction between bending tubes, prolong use life of mandrel and guarantee the quality of bending tubes(optional).
14.On the machine stage can be added with communications interface and data machine, it is connected to Heli Cooperation by telephone lines for remote control of engineer to Real-time, monitoring , software updating , troubleshooting and so on(optional).
15.The position of material entrance, safety, input mould interfere and conduct module interfere of material feed trolley can be set by hand and automatically memorized to cancel man measurement error and lose of machine collision.
16.Material feed axis will automatically detect itself before its operation to avoid the clash with machine.
17.Decomposition action can be collected at the time of actual bending so as to observe interfere points, amend movement and improve efficiency.
Type |
SB-cnc75 |
Max bending diameter |
Φ75×4T (steel pipe) Φ 60*3.5mm (stainless steel pipe) |
Layer number |
1 (same bending radius) |
Axis number |
2 automatic feeding+rotary+ bending by servo machine |
Max core lenghth of wear |
2500mm |
Max not feedthrough distance |
Feed with unlimited length |
Max bending angle |
190° |
Max bend radius |
330mm |
motor |
7.5kw |
Pipe number of files |
200 |
Control method |
PLC |
Bend method |
Oil cylinder |
Cooling system |
Water cooling (fan cooling is available) |
machine size |
320*120*130cm |
machine weight |
1800kgs |
work shop
samples made by our machine
Customer visiting
packing and shipping
