Heat Exchanger Price

Name: Heat Exchanger Price
Brand: Kaisheng
SKU: 108879199

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

Kaisheng

Wuxi Kaisheng Electricity Petrochemical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Jiangsu, China

Brand Name Kaisheng

Model Number ks56

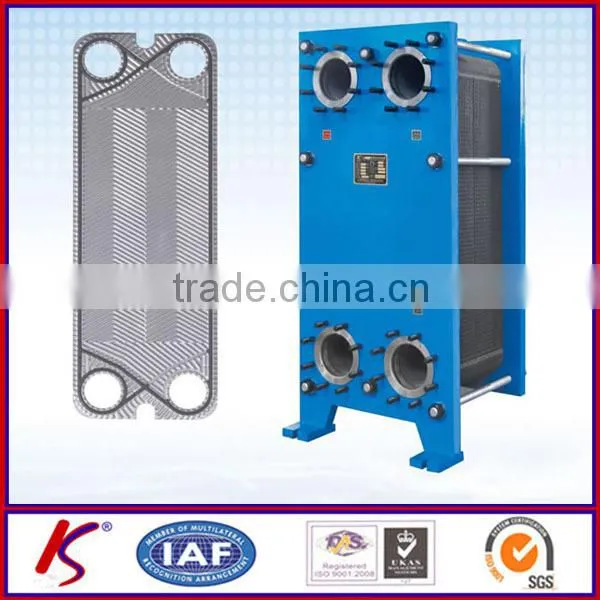

Structure Plate Heat Exchanger

Liquid Flow Rate 10-1300m3

Maximum Working Pressure 25bar

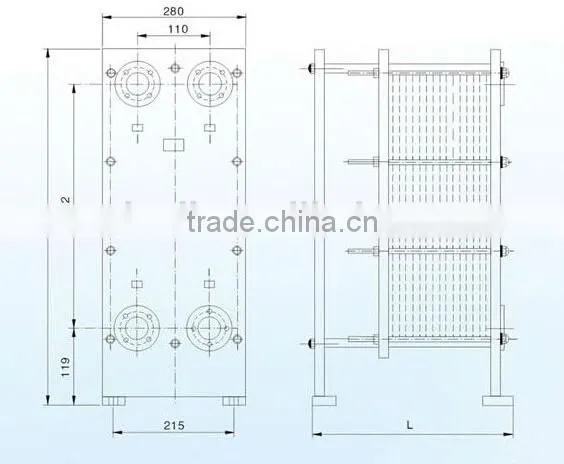

Dimension(L*W*H) 5100*1150*3100mm

Certification CE

Warranty 1year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

china heat exchanger for petroleum industry
304,316L,254SMO,titanium alloy
smaller space required,easy to maintain,assemble

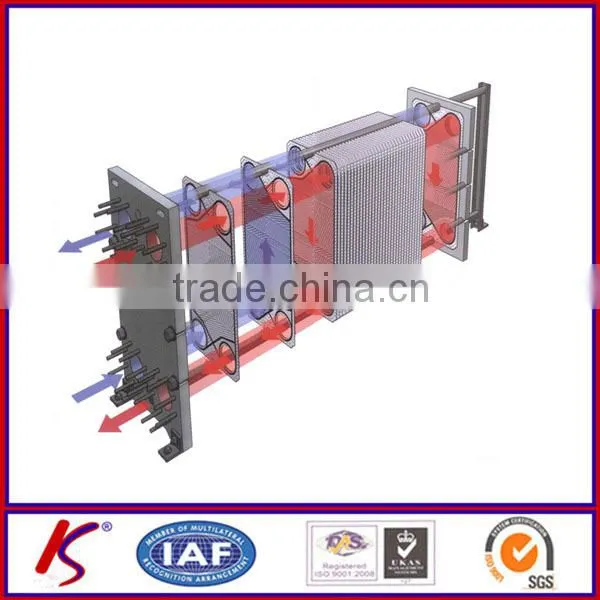

The plate heat exchanger consists of a pack of corrugated metal plates with portholes for the passage of the two fluids

between which heat transfer will take place. The plate pack is assembled between a fix frame plate and a movable pressure

plate and compressed by tightening bolts. The plates are fitted with a gasket which seals the interpolate channel and directs

the fluids into alternate channels. The number of plates is determined by the flow rate, physical properties of the fluids, pressure

drop and temperature program.

The plate corrugations promote fluid turbulence and support the plates against differentpressure. The frame plate and the pressure

plate are suspended from an upper carrying bar and located by a lower guiding bar, both of which are fixed to a support column.

Connections are located in the frame plate or, if either or both fluids make more than a single pass within the unit, in the frame

and pressure plates.

Material of Plate		Circulation Medium
Stainless Steel (SUS304.316 Etc)		Pure Water, Normal Water, Oil for eating, Mineral Oil
Ti, Ti-pd		Sea Water, Saline Water, Mineral Water
20Cr, 18Ni, 6Mo (254SMO)		Dilute Sulphuric Acid, Organic Water Solution
Ni		High-temp and concentration caustic soda
Hastelloy (C276, D205, B2G)		Concentration Sulphuric Acid, Hydrochloric acid, Phosphoric acid
Material of Gasket	Operating Temperature ° C		Circulation medium
NBR	-15~+135° C		Water, Sea Water, Mineral Oil, Salty Water
EPDM	-25~+180° C		Hot Water, Steam, Acid, Caustic
F26	-55~+230° C		Acid, Caustic, Fluid
TPF	0~+160° C		Concentrated Acid, Caustic, High-temperature Oil, Steam
