spiral wound gasketfor uneven load, untight compact, periodic change
in temperature and pressure vibration
good elasticity

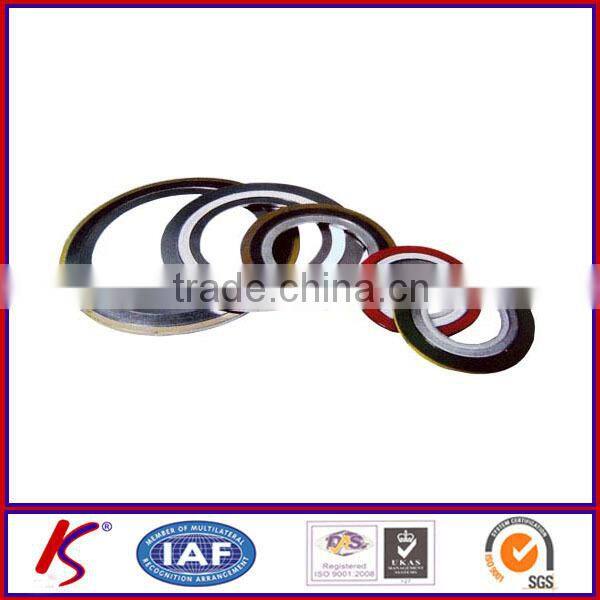

Most widely used spiral wound GASKET
The metal spirally-wound gasket adopts high-quality SUS304 or SUS316 ("V" or "W"shape) metal strips, other alloy materials and some flexible materials like
graphite, asbestos, PTE and non-asbestos, which are overlapped and wound spirally with each other.
The metal strips are fixed on the initial and terminal ends by means of spot welding. The metal spirally-wound
gasket has the best resilience among the semi-metal hermetic gaskets. Its structural density can be made
subject to different locking forces. Also the internal and external steel rings can be used to control its maximum compaction.
It's not demanding for the surface precision of the flange sealing surface contacting the spirally-wound gasket. It's especially applicable for such occasions as uneven load, slack joint, periodical changes of temperature
and pressure, impact or vibration. It's an ideal static seal element for flange connection in valves, pumps, heat exchangers,
towers, manholes,handholes and so on.
Application of spirally-wound gasket
Sealing of flange connection in pipelines, valves, pressure containers, condensers, heat exchangers, towers, manholes,
handholes and so on in such industries as petroleum, chemical engineering, metallurgy, electricity, shipping and machinery.
Type of metallic wrapping pad:
| |||||||||||||||||||||||||
Structural material of metallic wrapping pad:
Filling |
Steel band |
Inner ring |
Outer ring |
Asbestos wrapping |
SUS 304 |
Carbon steel |
Carbon steel |
Graphite wrapping |
SUS 316 |
SUS 304 |
SUS 304 |
Teflon wrapping |
SUS 316L |
SUS 316 |
SUS 316 |
|
|
SUS 316L |
SUS 316L |
Filling |
Temperature(°C) |
Max operating pressure(kg/cm2) |
Asbestos wrapping |
-200~550 |
250 |
Graphite wrapping |
-150~450 |
100 |
Teflon wrapping |
240~260 |
100 |
Wrapping pad thickness tolerance:
Item |
Thickness(mm) |
Tolerances(mm) |
Gasket thickness |
4.5, 3.2 |
+0.2 |
Ring thickness |
3.0 |
±0.24 |
Performance
