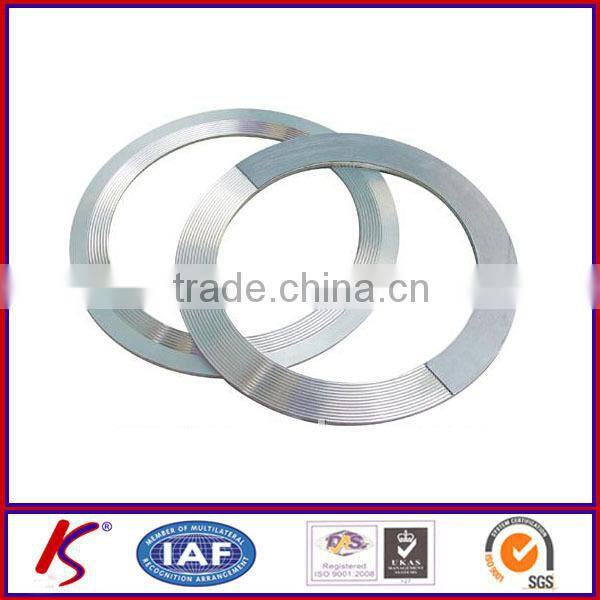

Fastener serrated tooth washer/pressure gasket
Serrated gaskets are processed a 90 - degree angle of waveform or jag by specific machinine on the ring.. The serrated washer/gaskets are suitable for high pressure, high temperature parts. It's featured by strong corrosion resistance and stable sealing effect. The metal serrated flange gaskets are widely applied in the flange and the connection of the chemical plants, power plants, nuclear power station, etc.
The technical parameter of sealing gasket
Type |
Sealing face |
PN |
Applying temperature |
Sealing face |
|
Wound gasket |
RF FM TG |
1.0-25.0 |
graphite≤500 graphite≤800 PTFE≤200 |
JB4705. SYJ14. JB/T4719. JB/T90 ANSIB16.20. JISB2404. JPI-7S |
|
Steel gasket |
Elliptical gasket |
Ring groove |
2.0-42.0 |
≤650 |
JB/T89. ANSIB16.20 |
|
Octagonal gasket | |||||
|
Wedge-shaped gasket |
APT-RX.BX |
2000LB |
API-std 6A |
||
Lens gasket |
lens |
|
JB90 DIN2696 |
||
Serrated gasket |
RF FM |
6.3-16.0 |
JB/T88. JPI-7S. DIN2697 |
||
Plate gasktiet |
RF FM |
6.3-16.0 |
Heat exchanger and boiler is for standby |
||
Graphite loading gasket |
RF FM TG |
0.25-6.4 |
C.S≤450 SS≤650 |
DIN2690 and various standards of rubber asbestos gasket and wound gasket |
|
Corrugated graphite gasket |
RF FM TG |
0.25-25.0 |
-200-650 |
Designed by our company referring to Germany documents and applied to sealing for various pipes, equipments and flanges. |
|
|
RF |
0.6-5.0 |
≤200 |
JIS |
|
Metaled gasket |
|
0.25-5.0 |
-20-450 |
JB/T4718. JB4706. ANSIB16.20. JIS |
|
|
RF FM TG |
0.25-5.0 1.0-5.0 1.6-5.0 |
≤350 |
JB/T4720 JB4704. SYT12. ANSIB16.21. JPI-7S. DIN2690. JTSB2202 etc. |
|
Graphite packing |
Apply to high temperature and high pressure valve |
≤450 |
Depends |
||
Asbstos packing |
Apply to high temperature and high pressure valve |
≤100 |
Depends |
||
PTFE packing |
Apply to high temperature and high pressure valve |
≤260 |
Depends |
||
