A6 6 Zones Lead Free Reflow Solder Oven for PCB Soldering

Name: A6 6 Zones Lead Free Reflow Solder Oven for PCB Soldering
Brand: Jaguar Automation
SKU: 108870683
Availability: InStock

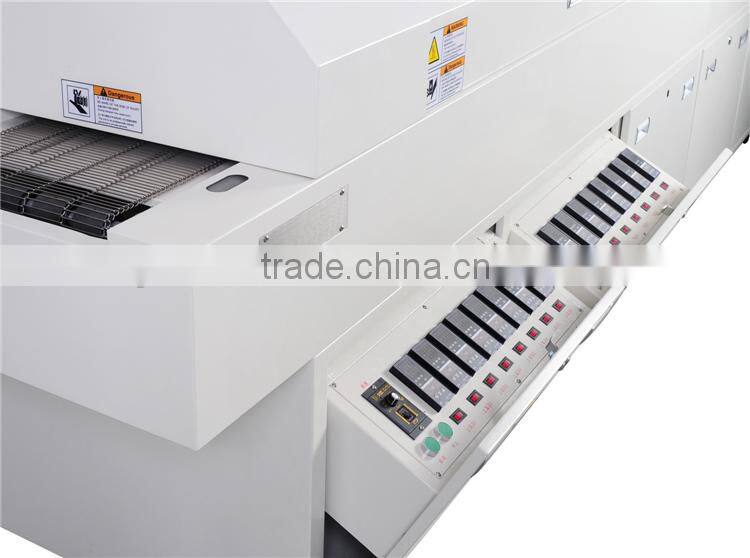

A6 6 Zones Lead Free Reflow Solder Oven for PCB Soldering thumbnail-1

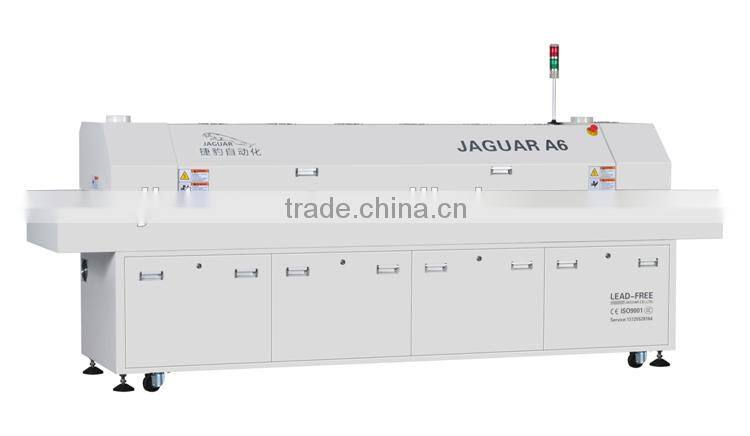

A6 6 Zones Lead Free Reflow Solder Oven for PCB Soldering photo-1

US$ 1 - 1.1 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Jaguar Automation

Model Number:

Contact Supplier Request Quote Chat Now

Shenzhen JAGUAR Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Jaguar Automation

Model Number A6

Product Description

A6 6 Zones Lead Free Reflow Solder Oven for PCB Soldering
Features:
A.The unique advanced long life heating system
1. The heating system adopt the Swedish nickel flippi

ng pipe which with high efficiency and energy saving. The peak wave length of radiation power is 4UM with curved surface reflector to accelerate the rising temperature speed, improve the thermal efficiency. And the special forced-air circulation system makes PCB and the component heated uniform and eliminates the "shadow effect" completely.
2. Special high temperature resistant protection system (the United States of America's high density insulation rock wool in heat preservation system and special iron in furnace. It suit for lead free welding and the welding area with rosin flux recovery system to protect environment.
3. Using imported Taiwan SanYue long axis of high temperature fan motor.
4. Whole oven are porous aluminum transfer the hot air to guarantee the hot air evenly to the PCB. The whole top oven can open completely easy to clean oven inside.

B.Smooth and reliable transmission system
1.The transmission system use STK adjustable speed motor imported from Taiwan matched with the 1:150 turbine reducer can running smooth and to speed 0-1500mm/min.frequency stepless speed regulation.
2. Independent wheel structure and support and match with accompany stainless belt to make the running smooth and the speed precision is up to20mm/min.
3. Special stainless belt: durable and wear-resistant, not easy to deform by long time use.
C.The Electrical control system is stable and reliable.
1. It adopts imported thermostat control which owns fuzzy control and PID intelligent precision control system. It can fast response the changes in external heat and ensure more temperature balanced by PID intelligent operation and automatic control heat.
2. Using Fanda thermocouple imported from Taiwan by each temperature zone, it can fast and sensitive induct the changes in each temperature zone, transfer and control timely, compensate the temperature balance in each zone.
3. Special SSR solid state relay matched with dedicated radiator improve the heat efficiency greatly and prolong the service time effectively. No contact output and the fuzzy control function by thermostat, can monitoring the changes in the outside temperature and calorific value, controlling the heating device by the minimum pulse, ensuring the high precision of temperature control & the uniform temperature in internal and the length, direction, temperature distribution ,all of these meet IPC standard.
4. Power is abundant, heat up fast, it's only need 20 minutes from room temperature to constant temperature.
5. Failure diagnosis and sound and light alarm.
Delay shutdown protection function, uniform cooling after the shutdown: prevent component deformation.
Specification:

Model	Jaguar A6
Outside dimension	35007001220mm
Standard color	computer grey
Weight	500KG
Number of heating zones	up6/bottom 6
Number of cooling zones	1
Length of heating zones	2400mm
Electric supply required	5 line 3 phase 380V 50/60 HZ
Warming time	Approx. 20 mins
Heating time	Up:hot air; bottom: IR
Temperature setting range	Room temp. -350 Degrees Celsius
Control system	PID+SSR/PLC+PC
Temperature control method	PID Close loop control&SSR Driving
Temperature control precision	±1.0 Degrees Celsius
Temperature deviation on PCB	±2.0 Degrees Celsius
Data storage	Process data and status storage(80 GB)
Abnormal alarm	Abnormal temp.(extra-high/extra -low temperature)
Board dropped alarm	Tower light:yellow-warming;green-normal;red-abnormal
Max. Width of pcb	320mm
Conveyor height	880±20mm
Conveyor direction	L-R/R-L
Conveyor speed range	0-1500mm
Pcb transmission agent	Mesh
Normal power	4.5KW
Start-up power	18KW

Packaging & Shipping

Mahcines are delivery in polywood case with vacuum package.

Our Services

1, our service tenet: fast, thoughtful and thorough
2, service goals: service quality to win the user satisfaction
3. the service efficiency: the warranty period or the warranty as equipment failure, the supplier in the receipt of the notification, the maintenance personnel in one hour to respone.
4, service principle: product warranty period of 12 months, in the guarantee period the supplier will free maintenance and replacement of quality caused by the damaged parts.
