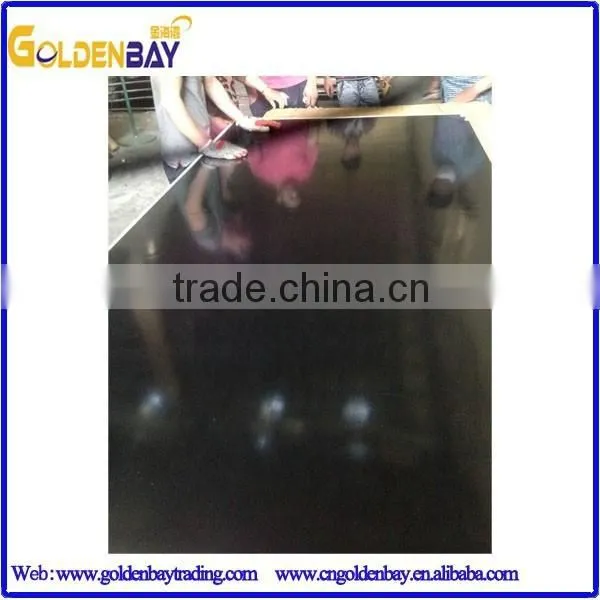

Film faced plywood/Shandong Linyi Film Faced Plywood
Main specifications:
1.Core:Poplar/eucalyptus/hardwood/combi
2.Size:1220x2440/1250x2500mm
3.Glue: MR/WBP/Melamine
Product description:
Production Name |
Film Faced Plywood |
Size |
1220x2440mm(4'x8'), 1250x2500mm, 915x1830(3'x6') or as agreed |
Thickness |
8-24mm |
Thickness Tolerance |
+/- 0.5mm |
Number of Plies |
From 5 to 15 depending on thickness |
Face/Back |
Black Film, Brown Film, Red Film (Film can be printed with requested logo) |
Finish |
Glossy, Matt, Anti-slip |
Core |
Poplar, Hardwood, Birch, Combi |
Glue |
MR/WBP/Melamine |
Products advantages:
1, Transference to concrete is set up very easily, so good for construction work |
2, Waterproof, Wear-resistant, anti-cracking. |
3, After installation of concrete, the surface looks like a mirror. (The cement does not stick.) |
4, It can be used to make camber and it also can be cut into small pieces according the special requirements. |
5. Environmentally friendly. |
6 It can be used for a long time, and for the initial price paid for the material, you will feel its worth over time. |
A. Film Faced Plywood Construction:
Plywood is made by gluing numerous thin strips of wood in alternating directions layer by layer, This construction is much less likely to expand or shrink based on moisture in the environment, and the alternating construction creates a board that is much stronger in each direction than a similarly sized board cut from a single tree.
Film coated plywood Surface Film is a resin impregnated paper overlay designed to improve the surface characterization of wood based panels used for applications such as concrete forming.
B. Wood based film faced plywood Advantages:
1.Substantial economy due to high performance.
2.Overlay extends the life of plywood and other engineered wood based panels.
3.Light Weight : More suitable for High building and Bridge construction project
4.Big Size : The biggest size are 1250*2500mm. Low the jonints quantity, High the work efficiency.
5.No warping, no out of shape, no fracture, It can stay 24 hours in boiling water with no bonding gap. High strength and 8-10 recycling times
C. Film faced plywood packing information:
Thickness |
Size |
Sheets/m3 |
Container Capacity |
40HQ | |||
9mm |
1220*2440 |
37.33 |
1978sheets/18pallets |
915*1830 |
66.36 |
3516sheets/18pallets |
|
12mm |
1220*2440 |
27.99 |
1616sheets/18pallets |
915*1830 |
49.77 |
2637sheets/18pallets |
|
15mm |
1220*2440 |
22.4 |
1186sheets/18pallets |
915*1830 |
39.81 |
2110sheets/18pallets |
|
18mm |
1220*2440 |
18.66 |
989sheets/18pallets |
915*1830 |
33.18 |
1758sheets/18pallets |
|
21mm |
1220*2440 |
16 |
847sheets/18pallets |
915*1830 |
28.44 |
1507sheets/18pallets |
|
24mm |
1220*2440 |
14 |
741sheets/18pallets |
915*1830 |
24.88 |
1318sheets/18pallets |
LIAONING DONGDAIHE GOLDEN BAY TRADING CO., LTD
Liaoning office: 1-55 Dongdaihe New Area, Liaoning Prov., China
Shandong office: Yitang Town, Lanshan District , Linyi City, Shandong Prov., China
Contact: Edison
Mob: 0086-13019973077
Tel: 0086-429-6160888
Fax: 0086-429-6189133
Skype: cngoldenbay
Whatsapp: +8613019973077
Wechat: 13019973077
Web:
www.cngoldenbay.en.china.cn
Welcome your inquire, hope to cooperate with you in the near future, you will satisfy our quality and services!
