1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trade manager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba!
B. Best price & Best shipping & Best service !
6) What is normal life of Machine?
If used properly, it is no problem for you to use it in 5-8 years.
7) Which is the nearest port from where you will ship the machine?
Shenzhen port
8) Is it possible at your end to take trials on few tubes before shipping the machine?
there is no doubt that we will test the machine before shipment.

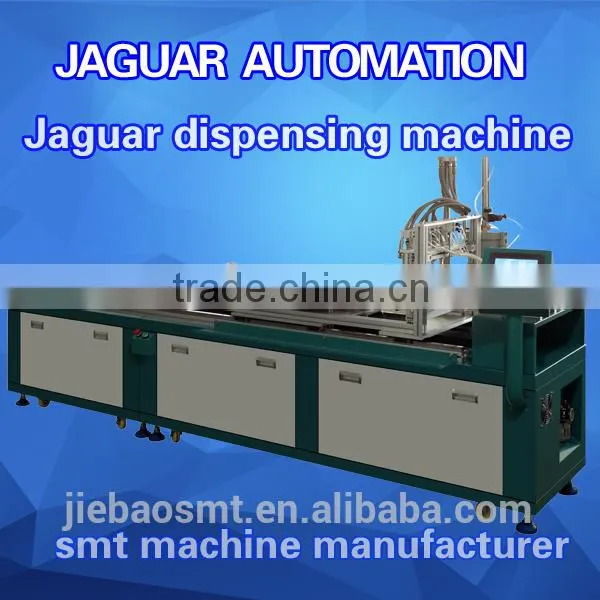

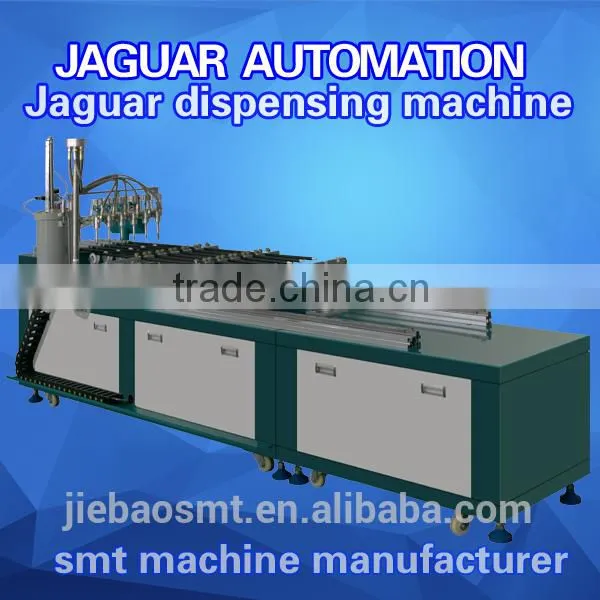

Main characteristics:
1. Special for Dispensing T8 LED Tube, 6 tubes can be worked at the same time, the production can reach 400 pcs/hours.
2. The tube length can be 1200mm, 600mm and 900mm also available.
3. The dispensing head individually controlled,you can chose which to dispense and which one donot.

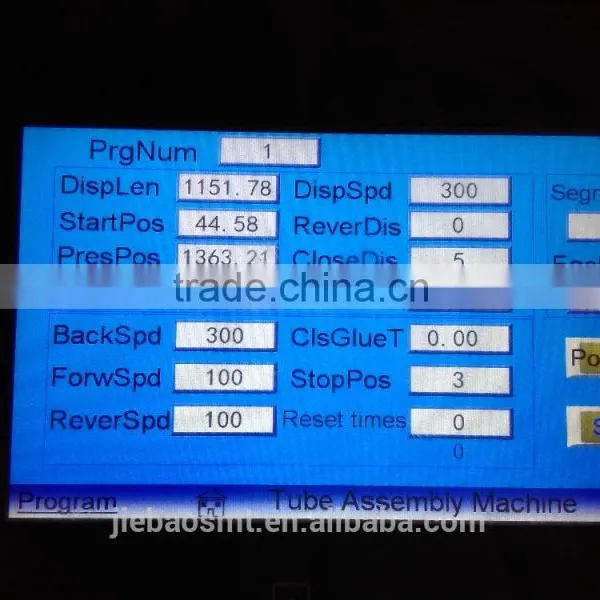

4. control systems operate using touch screen.
5. All the control parameter can be adjusted by the screen.
Specification:
| Work area | Max<=1200mm |
| Travel speed | Max<=500mm/sec |
| Repeatability precision | ±0.05mm |
| Source of power | Compressed air and auxiliary cylinder |
| Glue capacitance | 2600ml |
| Glue viscosity | max<=20000cps |
| Control method | PLC & screen |
| Programming method | Teaching programming |
| Program capacity | At least 100 groups,4000 points/group |
| Drive mode | Stepping motor, mesh, and linear guide rail |
| Input pressure | 0.5-0.8MPa |
| Supply power | AC220V 50HZ / 2000W |
| Operation environment | Humidity:20-90% Temperature:0-40ºC |
| Machine size(W*D*H) | 3200*750*1550mm |
| Weight | About 300kg |
Glue type: 2600ml single component silicone
Shenzhen Jaguar Automation Equipment Co.,Ltd is one of the leaders in SMT machine in China.
