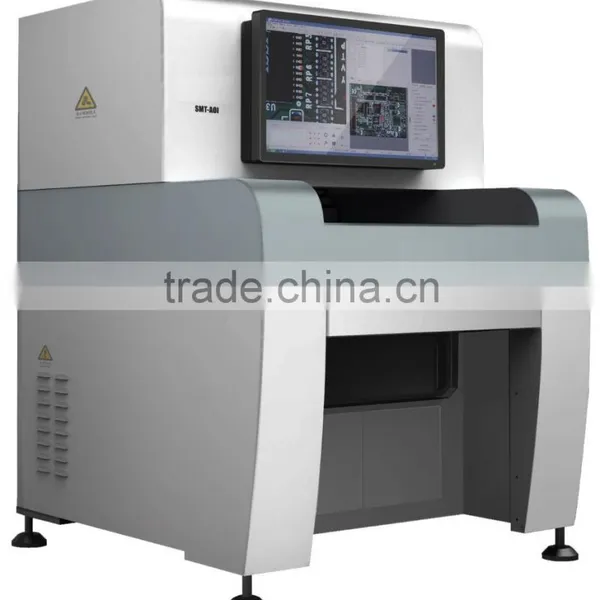

A1000 SMT inspection machine optical aoi inspection machine manufacturer
Specifications:
Inspection System & Optical System
Inspection Object |
Skew / Tombstone / Wrong part / Missing / Overturning / Damaged / |
Inspection Component |
0402 chip , IC pitch 0.3mm, wave soldering point |
Inspection Method |
Artificial Intelligence and Pattern Recognition |
Camera |
Color CCD (1.45MPa Pixels), Resolution 20um, FOV 20x20mm (customized) Image processing <=2000m2/s |
Light Source |
RGB Ring Multi-angle LED combination lighting, high brightness, standard CCTV lens, DOV 2mm |
Software & Computer
Computer |
CPU : Dual-core 2.7G, RAM: DDRIII-2G harddisk : 500G, 22" wide screen LCD |
Mechanical System
PCB Thickness |
0.3 - 5.0 (PCB Warpage < 5mm) |
PCB Height |
SMT : Top: 30mm, Bottom 45mm (can be customized) |
Driving Method |
AC Servo Motor+ball screw rod+linear guide rail |
Motion Speed |
Max 700mm/s |
PCB Clamp |
Automatic |
Power |
AC220V / 50Hz, UPS 1000W |
Dimension |
940 x 950 x 1280 mm |
Weight |
Aprox. 450kg |
Mahcines are deliveried in polywood case with vacuum package.
1, our service tenet: fast, thoughtful and thorough
2, service goals: service quality to win the user satisfaction
3. the service efficiency: the warranty period or the warranty as equipment
failure, the supplier in the receipt of the notification, the maintenance
personnel in one hour to respone.
4, service principle: product warranty period of 12 months, in the guarantee
period the supplier will free maintenance and replacement of quality caused by
the damaged parts.
JAGUAR Automation - one of the well-known lead-free smt machines manufacturers in China, Founded in 2009, headquartered in Shenzhen.
JAGUAR has been committed to lead-free equipments research and development, and manufacturing lead-free reflow oven, wave soldering machines and other lead-free electronic devices since foundation. Currently has the R8 series of high-end dual-track lead-free reflow soldering, the F8 series of lead-free reflow ovens, A8 Series of lead-free reflow solder ovens and N series wave soldering equipments.

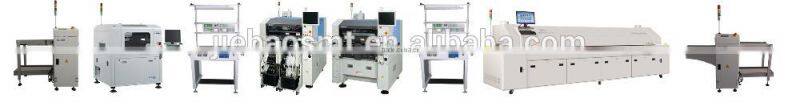

Jaguar products: smt stencil machine, smt solder paste printing machine, screen printing equipment, solder paste printer, stencil printer, SMT Stencil Printer, Semi-Automatic Printing machines, PCB buffer conveyor, reflow ovens, lead-free reflow solder ovens, reflow soldering ovens,wave solder or wave soldering machines, smt chip mounter,Smt Pick and Place Machine, smt machine/Smt Equipment and smt peripheral equipments.
REFLOW OVEN, WAVE SOLDERING,SMT MACHINE, SOLDER PASTE PRINTER/STENCIL PRINTER/SCREEN PRINTER
CERTIFICATIONS
Honor Customers and Partners
Packaging
1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual and engineer training at our factory. Any questions, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machines have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcome.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$54,000 !
C. Best price & Best shipping & Best service !
James Siah welcome your enquiry
