Automatic diesel underground tank gauge/ATG/Level measuring instrument for petrol station/ fuel tank level gauge
Bout product :
Magnetostrictive Liquid Level Meter
Magnetostrictive Liquid Level Meter (Tank gauging system) for gas stations produced by Guihe consists of Probe and Touch Control Console. There are three different plans to satisfy different customers according to their effective demands.
SYW-A Probe +TCM-1 Touch Control Console + Central Control System + Internet
1,Industrial design, long service life, fast in running.
2,Excellent compatibility with different brand Central Control System.
3,Integrated design for the safety barrier and control console in order to easy installation and lower the cost.
4,Information are stored in memory for future inquiry.
5,It enjoys a tank tilt compensation function
6,It can connect with explosion-proof ringer outdoors avoiding the product spilled
7,With an embedded printer it can print inventory reports, delivery reports, leak reports and shift reports

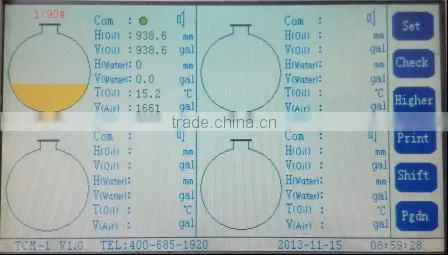

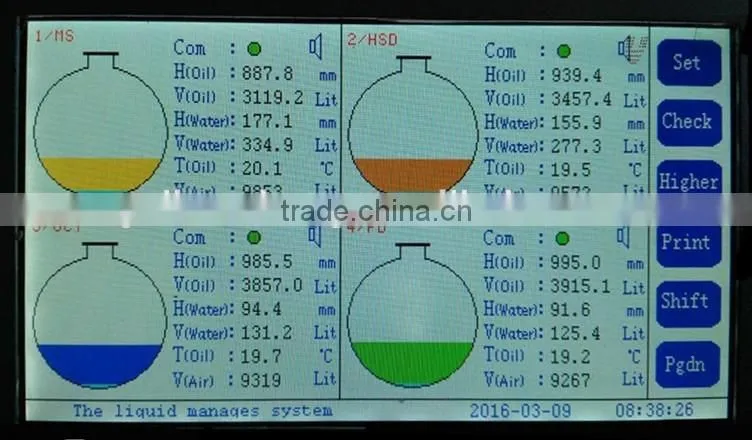

8,It can monitor up to 12 tanks and display dynamically the product level and water level with colored graphics in proportion.
9,After connected with Central Control System though internet, it can provide information for manager to manage the inventory, delivery and the sale of the product.
TCM-1 Touch Control Console | |
Parameters | |
Power Supply Voltage |
AC120~265V 50HZ |
Environmental Temperature |
-20℃~60℃ |
Environmental Humidity |
20%~85% |
Display Screen |
7 inch colored touch screen |
Processor / Memory |
High-speed embedded / --- |
Hard Disk / CF |
--- |
Printer |
Embedded minitype printer |
Safety Barrier |
Power safety barrier, communication safety barrier |
Power-off protection |
--- |
Size |
310x220x105 (mm) |
Functions | |
Display |
English, Graph, Colored |
System Language |
English |
Monitoring Capability |
12 tanks |
Relay |
With 2 relays |
Method of Communication |
RS-485 |
Tank Inventory Report |
Users can inquire and print inventory information at any moment. |
User-defined product type supported |
Available |
Auto Delivery |
Auto delivery monitoring, and reports are generated after delivery. Users can inquire and print reports. |
Manual delivery |
Click the “start delivery”, it will create delivery report |
Product Mass Calculation |
--- |
Print Function |
User can print all kinds of reports |
Network Function |
Inquiring data in long-distance through internet. |
Outside Explosion-proof Ringer |
Avoiding the product spilled. |
System Update |
It’s convenient to update the software and hardware. |
Control the Oil Pump |
Avoiding the product spilled and pumpdown |
Setup/Inquiry Parameter |
Users can setup and inquiry the parameter about the tank, hardware, product type, alarm, date, tank volume table |
Automatic Gauge |
Display product level, water level, temperature, volume, ullage |
Volume Table Edit |
Data input via touch screen, enjoy the import and export function. |
Volume Table Calibration |
Use the method of Guihe Volume Table Calibration to calibrate it. |
Static Leak Detection Function |
During the idle time of the gas station, user can do the leak detection for the thank.( Detection rate :0.38 L/H) |
Dynamic Leak Detection Function |
--- |
Alarm |
Audible and visual alarm and inquiry function |
Shift Exchange |
Shift exchange function and create the report. |
Interface |
With two RS-232 serial interface communication ports |
1. Delivery time is 3~7 days for sample and 15 working days for bulk order;
2. Strong production capacity and strict quality control system;
3. Your inquiry and problems related to our products or prices will be replied in 24 hours;
4. Well-trained and experienced staffs to answer all your inquires;
5. After-sale tracking service for all of our clients;
6. OEM is available; small quantities, mixed bulk orders are also welcome;
7. Payment: L/C, D/A, D/P, T/T, Paypal , Western Union, MoneyGram;
8. Delivery way: UPS, DHL, TNT, FEDEX, EMS, CHINA POST.
Qingdao guihe measurement & control technology co.,ltd (guihe measurement & control) is one famous factory that produce word’s advanced Magnetostrictive liquid level meter series products and oil jars of the calibration system; and supply the professional services . we specialized in the research & development , production sales for Gas station liquid level meter,Double-layer tank leakage detector,Double-layer pipeline leakage detector ,Tank car cehicle-mounted liquid level meter,Tank volume table calibration system ,High level alarm ,Human body electrostatic discharge alarm and other new products.
Our products are independent R&D production,and achieved many national invention patents ,Implement the concept of customer needs first. Cost-effective products and good service win the customs trust and support. In future ,we will continuously make exploration and innovations,and focus on the product development and the utilization of the technology to improve our quality and offer a compete range of new products for the customers.
We are willing to conduct extensive cooperation with companies ,we sincerely hope to become your trustworthy partner!
1:How long will you give me the reply?
we will contact you in 1 hours as soon as we can.
2:Could I get samples?
Yes,we have materials in stock to help you to get the samples as soon as we can.
3:How about the quality of the magnets?
as china few oldest factory ,we have our own factory ,we have professional team for research and development ,produce ,sale, and after-sale service
4:How is the price?
As we believe the quality is the most important,we will provide the best quality pressure sensor we can with reasonable price.
5:Could you provide me the shortest lead time?
We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.
6:Could I visit your factory?
Of course,anytime ,welcome to visit our factory ,check our factory or check your order when you come to china .
7:If I have paid,when will you help me to produce?
When we have received the money in our account,we will give you the receipt and arrange to produce immediately.
