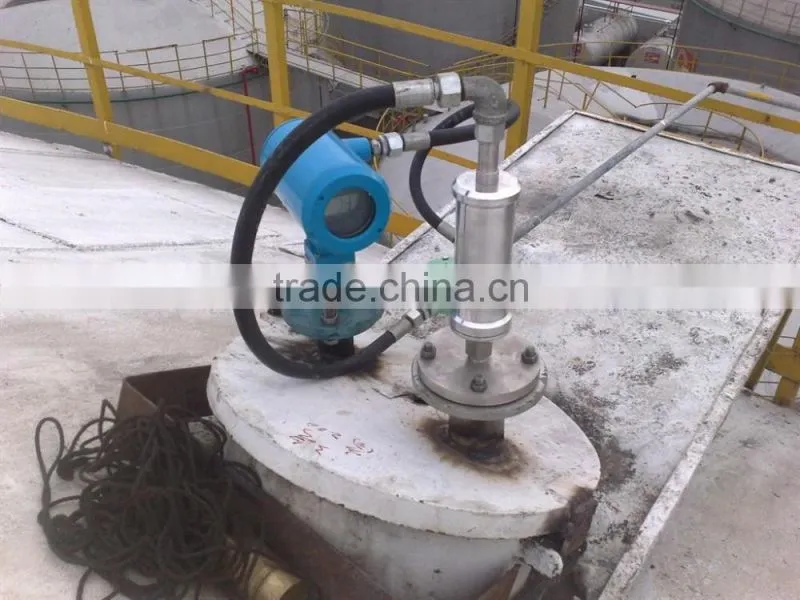

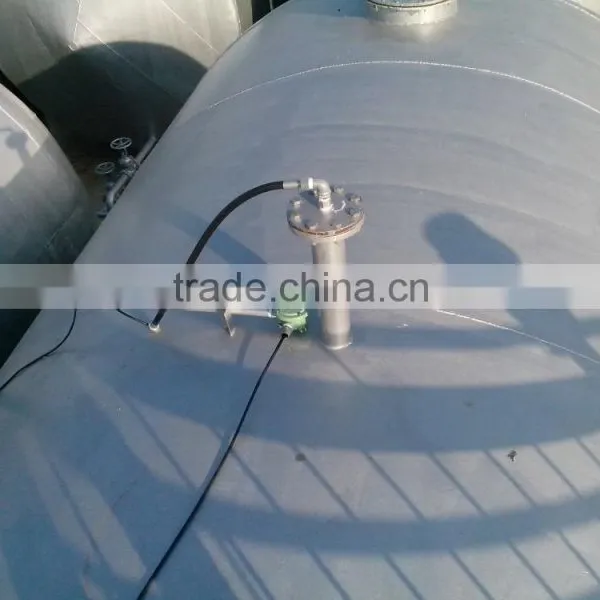

Help CenterAutomatic Tank Guage System for Chemical and Oil Tank, Liquid Level Transmitter, Soft Cable Float Type Level Meter
Related Products
-
Magnetostrictive Probe Automatic Tank Gauge System(ATG) Diesel Gasoline Fuel Liquid Level Meter/ SensorUS$ 1 - 600MOQ: 1 Case -
Qingdao Factory Fueling Station ATG System /SYW-A Magnetic Probe Quality ChoiceUS$ 100 - 480MOQ: 1 Set
-
Qingdao Factory Fueling Station ATG System /SYW-A Magnetic Probe and Touch Console Snesor Quality ChoiceUS$ 100 - 480MOQ: 1 Set
-
Fuel Tank Magnetostrictive Liquid Level Sensor Meter ATG for Petrol Station, Automatic Tank Gauging, Fuel Level/volume MeasuringUS$ 100 - 10,000MOQ: 1 Set
-
Factory Price Qingdao SYW-A Magnetostrictive Probe Use for Fueling Station ATG/Automatic Tank GaugeUS$ 100 - 500MOQ: 1 Piece
Accurate inventory, delivery and sales data for gas station!
Application:
Automatic Measurement |
oil level, water level, temperature, volume |
Scientific Management |
Shifting of duty, Oil reload record, report generation and print |
Security Surveillance |
high or low oil level, water level, temperature monitoring and warning system |
Environmental Monitoring |
Oil leak detecting and warning system |
Data Sharing |
Automatic data transfer with other information system, to expend management function solutions |
Solution:

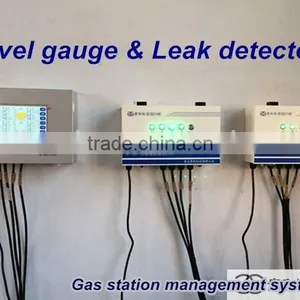

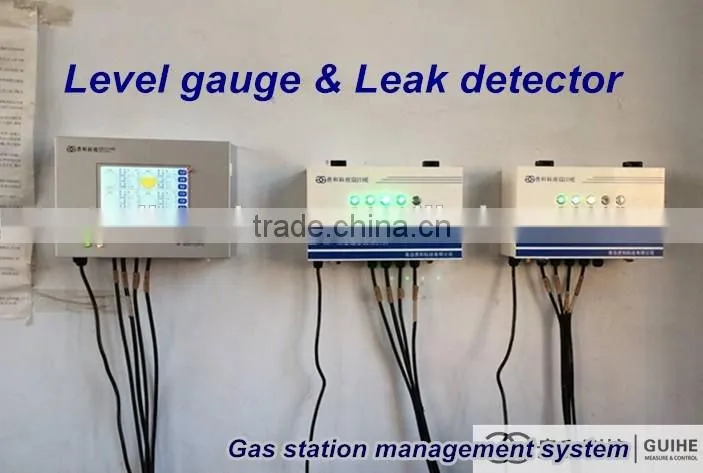

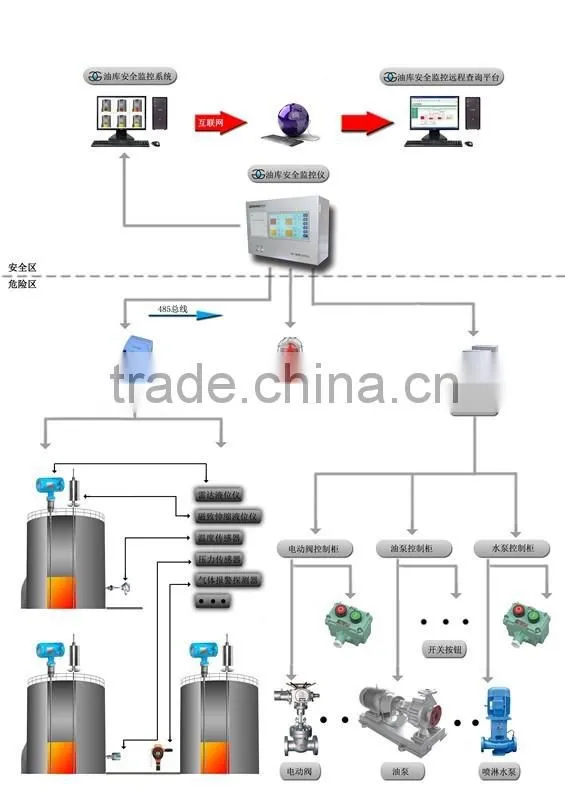

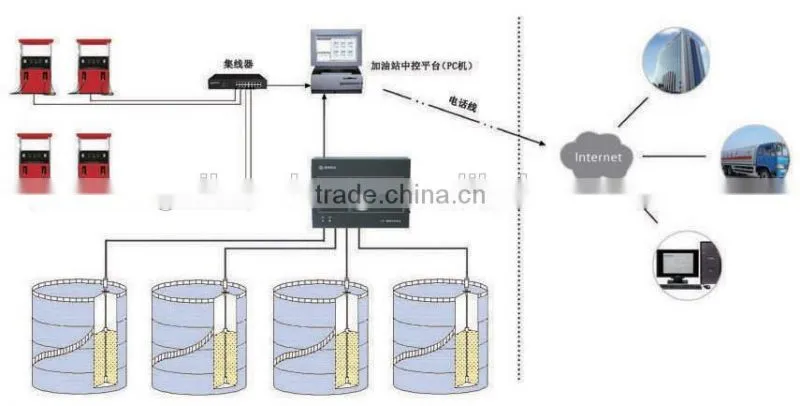

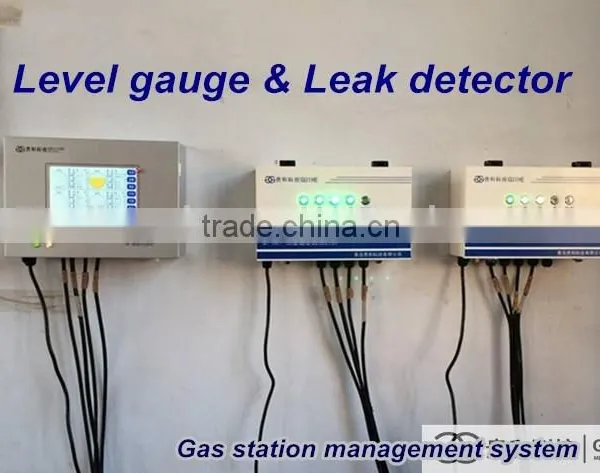

Probe + TCM-1consol(TCM-1is a console with colorful touch screen)+ PC Remote
Function:
∗ Accurately monitoring the delivery,sales and inventory of oil in the tank
∗ User defined Alarm and system auto alarm
∗ Can set the parameter directly through TCM-1 console
∗It can be connect to the PC , can monitoring the delivery,sales and inventory of oil in the tank on the PC
by PC Remote, print on PC
∗ All the data and report can be exported, and can be save in PC files
Item |
SYW-A |
Purpose |
To measure product level, water level and temperature |
Titles of medium |
Gasoline, diesel, kerosene, ethanol , water etc. |
State of medium |
Liquid |
Explosion-proof grade |
ExiaIIBT4 (Intrinsically safe) |
Pressure range |
-0.02Mpa~0.6Mpa |
Certificate |
PCEC Conformity Certificate of Explosion-proof / Permit of Manufacture Measuring Instruments |
Temperature |
-40℃~70℃ |
Product Level Accuracy |
±0.3mm |
Water Level Accuracy |
±0.3mm |
Temperature Accuracy |
±0.2℃ |
Height Resolution |
0.023mm |
Repeatability |
±0.1mm |
Temperature Effect |
Error<0.2mm |
Vibration Effect |
Error<0.5mm |
Lowest Product Inactive Zone |
2.5'' floater-180mm |
Lowest Water Inactive Zone |
2.5'' floater-25mm |
Measured Variable |
Product level, interface level and temperature of 5 sensors and average temperature |
Probe Length |
600~4000mm |
Method of Communication |
RS-485 |
Probe Material |
1Cr18Ni9Ti |
Power Supply |
+24~26VDC |
Protection Class of Probe Canister |
IP67 |
Max Communication Distance |
1200m |
More products
1:How long will you give me the reply?
we will contact you in 2 hours as soon as we can.
2:Could I get samples?
Yes,we have materials in stock to help you to get the samples as soon as we can.
3:How about the quality of the magnets?
We have the certification of ISO, we could send the certification test of our company to you.
4:How is the price?
As we believe the quality is the most important,we will provide the best quality and lowest factory price.
5:Could you provide me the shortest lead time?
We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.
6:Could I visit your factory?
Of course,if you need we will help you to visit our factory.
7:If I have paid,when will you help me to produce?
When we have received the money in our account,we will give you the receipt and arrange to produce immediately.
1. Provide necessary conditions for the customers visiting factory.
2. Good quality with competitive price.
3. All products have been strictly Quality Checked before shipping.
4. Free repair within 12 months.
5. Great after-sale service and offer solution within 24 hours.
6.OEM is ok.
Qingdao Guihe Measurement & Control Technology Co., Ltd was founded in 2002, is a professional manufacturer of petroleum equipment. We specialized in producing Magnetostrictive liquid level meter (tank gauging system), Underground fuel tank volume table calibration system, Double layer tank leakage detector, Double layer pipeline leakage detector, Tank car liquid level meter, Human body electrostatic discharge alarm. We also providing different customers with personalized solutions.
Products are independent R&D production,and achieved many national invention patents ,Implement the concept of customer needs first. Cost effective products and good service win the customs trust and support. In future ,we will continuously make exploration and innovations,and focus on the product development and the utilization of the technology to improve our quality and offer a compete range of new products for the customers.We are willing to conduct extensive cooperation with companies ,we sincerely hope to become your trustworthy partner!
We are seeking cooperation opportunities with gas station equipment suppliers, we will provide you lowest factory price.
