dough mixer
USD $2,400 - $2,600
/ Set
1 Set(Min.Order)
- 20 Set / Sets per Month
- Shanghai for dough mixer
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Condition: | New | Mixer Type: | Ribbon | Product Type: | Other, Liquid mixing machine |
| Application: | Powder | Additional Capabilities: | Other, Tilt | Place of Origin: | Jiangsu, China |
| Brand Name: | JINKE | Model Number: | CH-200 | Max. Loading Capacity: | 120L |
| Voltage: | 380V | Power(W): | 4.75kw | Dimension(L*W*H): | 1700*650*1200 mm |
| Certification: | CE GMP | Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
dough mixer
Product Description
This mixer is used for mixing of granules and powder.
1. Homogeneous mixing
2. All stainless GMP compliant
3.SS304
Main Application
As a stainless steel horizontal mixer, the machine is suitable for the mixing of target materials in powder or paste state evenly in pharmaceutical, chemical and foodstuff industries.
Working Method
By driving of mechanism of the mixer, the stir paddle turns the target material to and fro to mix it evenly. Electric control is applied to set the mixing time and the mixer will stop automatically when time is up, so as to improve the mixing effect of materials.
| MODEL | 50 | 100 | 150 | 200 | 300 | 400 | 500 | 600 |
| Paddle shape | S single paddle | S single paddle | S single paddle | S single paddle | S single paddle | S single paddle | S single paddle | S single paddle |
| Working volume L | 50 | 100 | 150 | 200 | 300 | 400 | 500 | 600 |
| mixing speed r/min | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 |
| Stir angle ° | < 105 | < 105 | < 105 | < 105 | < 105 | < 105 | < 105 | < 105 |
| Mixing power kw | 1.5 | 2.2 | 3 | 4 | 5.5 | 5.5 | 7.5 | 11 |
| Dumping power kw | 0.37 | 0.55 | 0.55 | 0.75 | 1.1 | 1.1 | 1.5 | 2.2 |
| Weightkg | 280 | 350 | 410 | 450 | 520 | 580 | 680 | 750 |
| Overall size L× W× Hmm | 1200× 500 × 950 | 1400× 580 × 1000 | 1600× 600 × 1150 | 1700× 650 × 1200 | 1800× 700 × 1250 | 2100× 750 × 1250 | 2250× 800 × 1300 | 2400× 850 × 1350 |

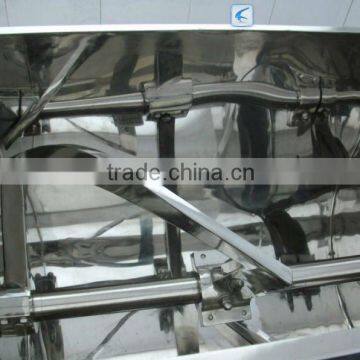

Inside Of Mixer
Company Information
Packaging & Shipping
FAQ
Q1:Are you factory or trading company?
A:We are professional manufacturer of mixer machinery with over 10 years experience .Also we are trading for different customers.
Q2:Where is your factory located?Is it convenient for us to visit?
A:Our head factory located in jiangyin city,jiangsu province,China.About 2 hours by car from shanghai airport.
Q3:What about your machinery?
A:Seeing is believing.Our strength technical team guarantee the highest quality,not only of machine,but also of precisely control and final product.
Q4:What about the price?
A:Our price is based on reasonable competition.
Q5:What about delivery time?
A:We have strongest worker team and half-finished products in storage.So we can send within 20days.
Q6:What about after service?
A:We can offer 12months warrant since the machinery arrived at your factory except for durable parts.After warrant,we will offer space parts or repair service .
