Specifications
1.Universal Pulverizer2.Made of SS304
3.can have Dust Absorption
4.20-120 mesh
Working Method:

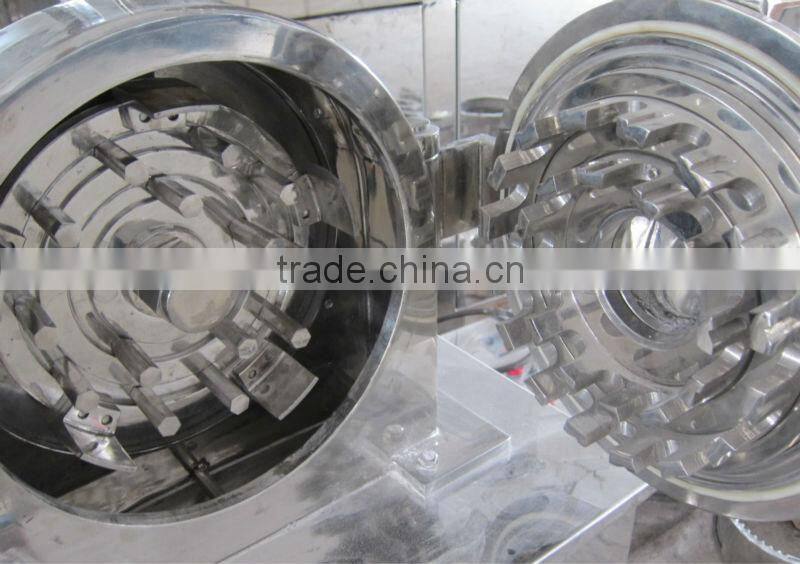

The machine uses the relative movement between the active fluted disc and the fixed fluted disc to impact, grind and crush the target materials. The size of granules can be achieved by changing of the screen. The machine has the features of easystructure, solid, stable running and good efficiency.
The crushed material is discharged directly from the grinding chamberof the main frame. In addition, the whole machine is made of stainless steel, with smooth inside walls to avoid powder accumulation on the inside walls. Those harmaceutical, chemical and food stuff products from the machine are in accordance with national requirement, achieving GMP standard.
Technical Data:
Model |
180 |
20 |
30 |
40 |
60 |
Capacity(kg/h) |
10-30 |
20-150 |
30-300 |
40-800 |
60-1200 |
Speed of principal axis(r/min) |
6000 |
4500 |
3800 |
3400 |
2600 |
Size of input granules(mm) |
<5 |
<6 |
<10 |
<12 |
<15 |
Fineness of products (mesh) |
12-120 |
12-120 |
12-120 |
12-120 |
12-120 |
Power(kw) |
2.2 |
4 |
5.5 |
7.5 |
15 |
Weight(kg) |
80 |
250 |
320 |
550 |
600 |
|
Overall size (L×W×H)(mm)
|
600×500 ×1000 |
550×600 ×1250 |
600×750 ×1450 |
750×900 ×1550 |
950×1000×1850 |

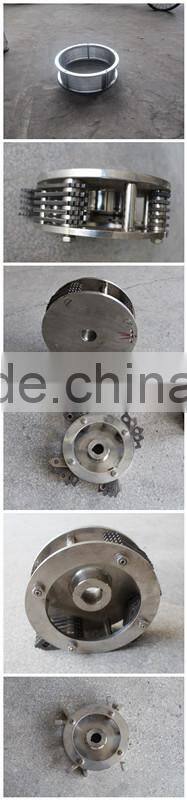

KNIFE FOR WF PULVERIZER:
OR

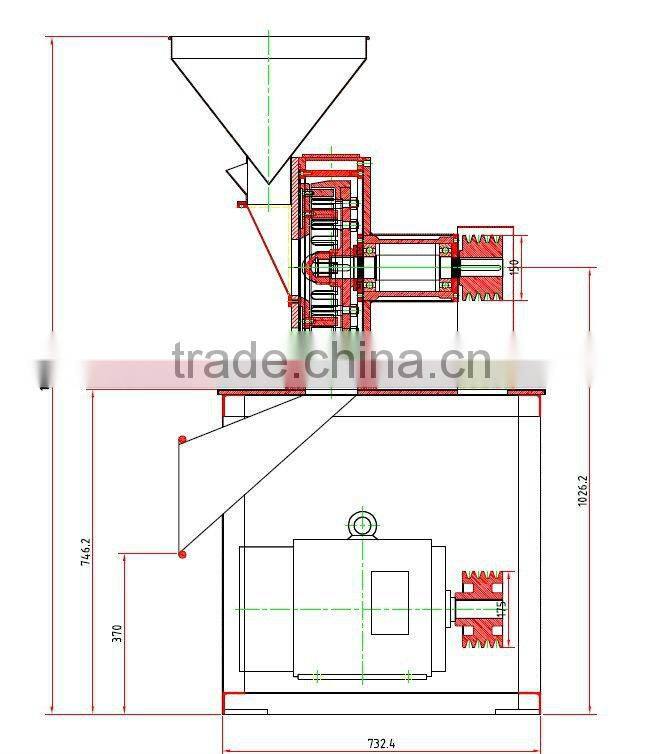

Drawing:
