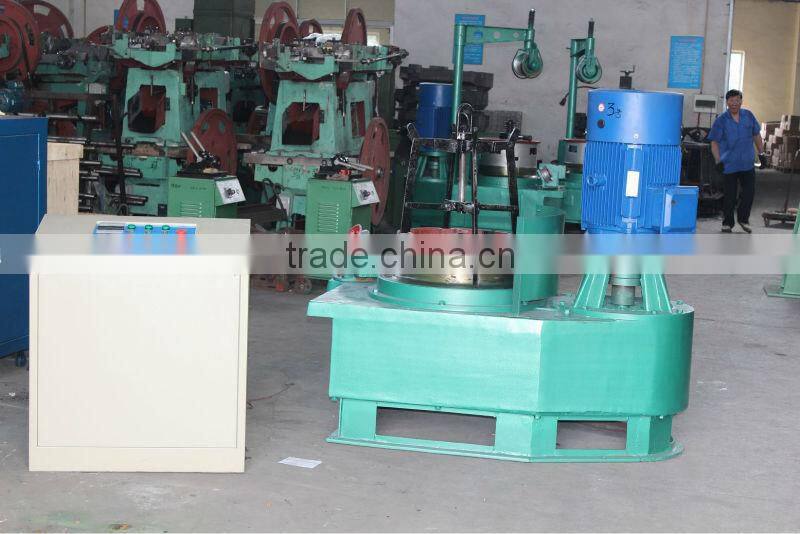

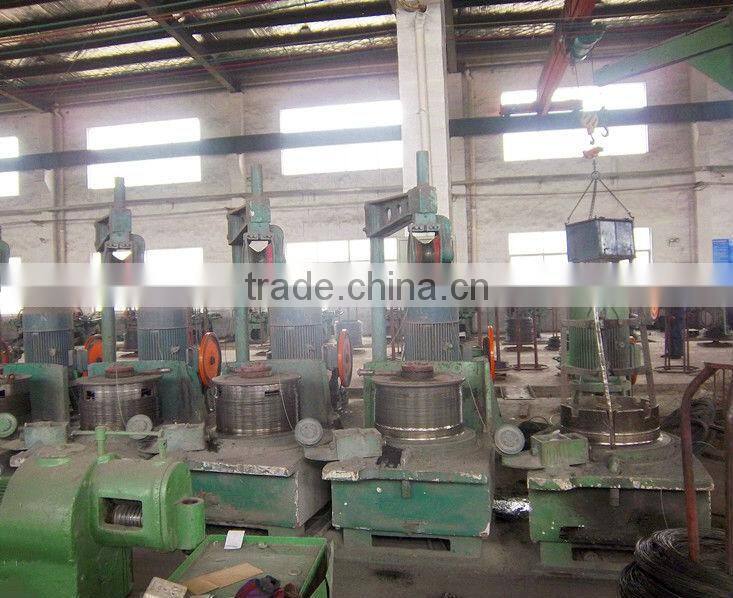

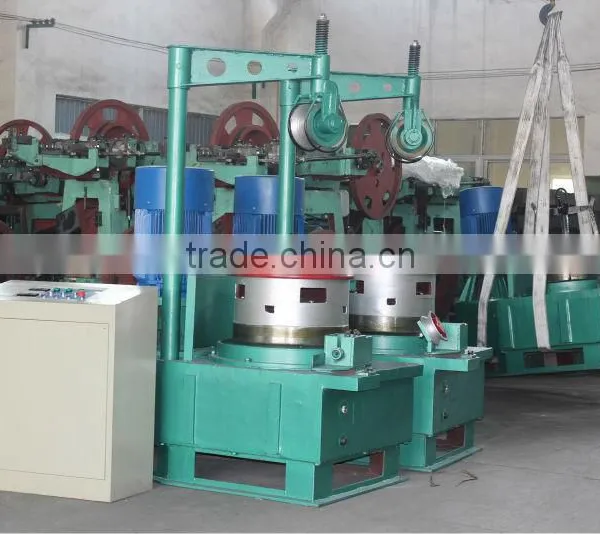

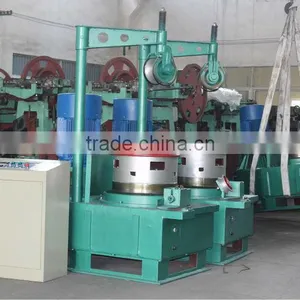

wire drawing machine LW-6/560As an ideal equipment of drawing carbon wire from low to high tensile, it also can be used to draw steel, aluminum, alloy wire and etc. which can be widely used as steel wire, wire rope, construction products, galvanized wire, metal product, wire nails and etc.
**Technical Data
Type |
LW-1/800 |
LW-1-6/560 |
LW-1-7/450 |
LW-1-6/350 |
Material Tensile |
|
δb≥110kg/mm2 |
128kg/mm2 |
δb≥140kg/mm2 |
Max dia. Of material |
10-14 |
6.5mm |
3.4mm |
2.5mm |
Min dia. Of material |
6.0 |
2mm |
1mm |
0.75mm |
Dia. Of block |
1-800 |
1-6/560 |
1-7/450 |
1-6/350 |
Max average condensation |
25% |
Around 30% |
Around 20% |
Around 21% |
Total condensation |
|
Around 78-88.5% |
77.9% |
Around 78% |
Max speed of block |
0.4m/min |
245m/min |
346.9m/min |
200m/min |
Total Power |
80 |
18.5-30kw |
7.5-11kw |
7.5-11kw |
Weight |
4500kg |
2000kg |
1500kg |
1000kg |
Dimension (mm) |
9730x3340x2020 |
1700x1150x1750 |
1520x810x1700 |
1400x800x1500 |

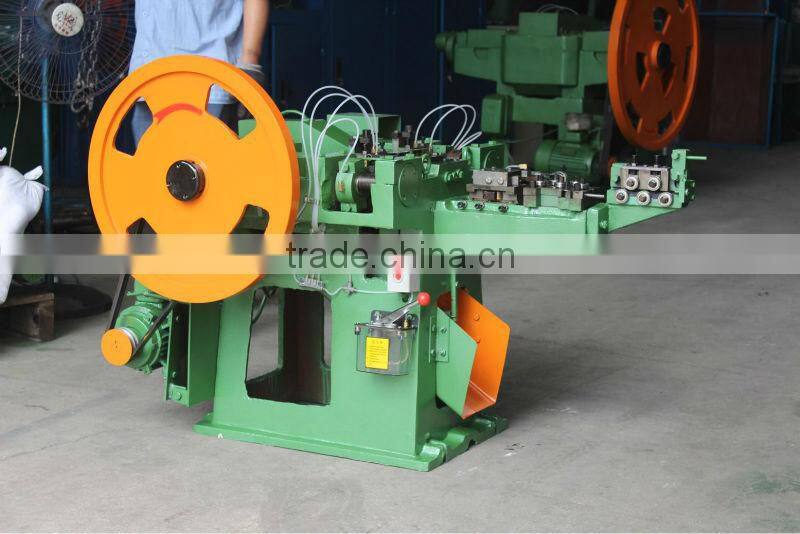

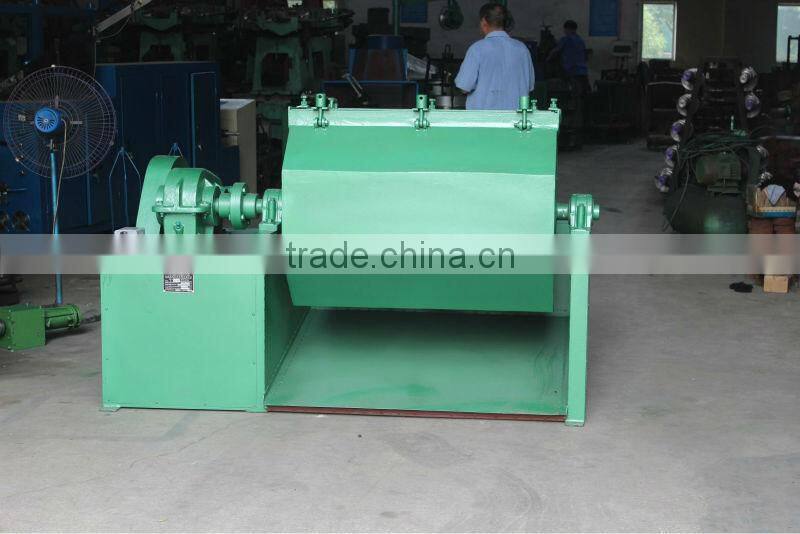

Our factory also can produce nail making machine, nail polishing machine, wire coil nail making machine and etc..
