High performace pulverizer for instant tea powder
Application
The machine is applied in industries such as pharmaceutics, foodstuff, chemicals and etc, with features of cool air and no sieve or screen. It is not limited by the viscosity, hardness, softness or fiber shape of the raw materials, and has good effect to all materials, especially to those Chinese herbal medicines with fibers and those with oils.
Working method:
The machine is composed of feeder,grading wheel, pulverizing blades,gears, pulvering motor, discharging gate, collection box, dust collection box and ect. Any raw material, being fed into the grind chamber through the upper feeder, is pulverized by high-speed running blades. The fineness of the finished products is regulated via the distance adjustment of grading wheel and grading plate. The high-speed running fans will lead those pulverized remained in the chamber. The ber to discharge gate via negative pressure while whose unpulverized material in the chamber. The dust from grinding is filtered and recycled via the cloth bag or filter of the dust absorption box. The whole machine, designed according to "GMP" standard, is made of stainless steel, with the features of easy structure, convenient operation and cleaning, low noise and high capacity,avoiding dust flying in production.
Technical parameters:
| WJ series herb pulverizer | |||
| Model | 200 | 300 | 400 |
| Capacity(kg/h) | 10-150 | 20-300 | 50-500 |
| Size of input granules(mm) | <10 | <12 | <15 |
| Fineness of products(Mesh) | 20-250 | 20-250 | 20-250 |
| Gring Power (kw) | 5.5 | 7.5 | 11 |
| Dust absorption power(kw) | 1.5 | 2.2 | 3 |
| Weight(kg) | 320 | 550 | 750 |
| OVerall size(mm) | 1350*920*1800 | 1400*1050*2050 | 1600*1150*2100 |
Details:

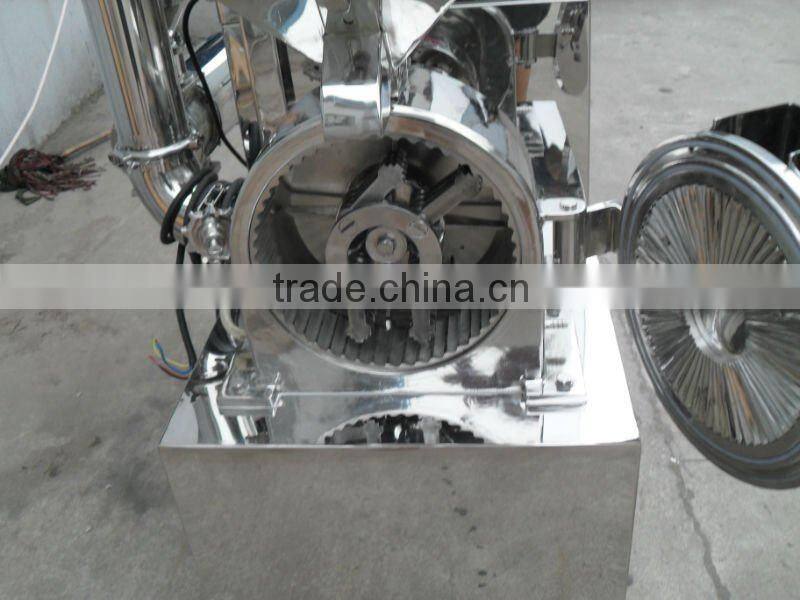

Gring room

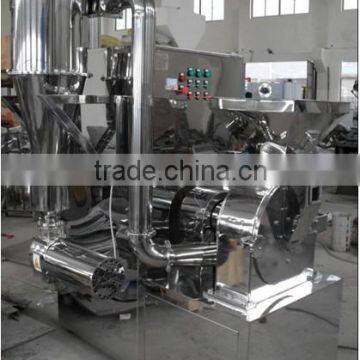

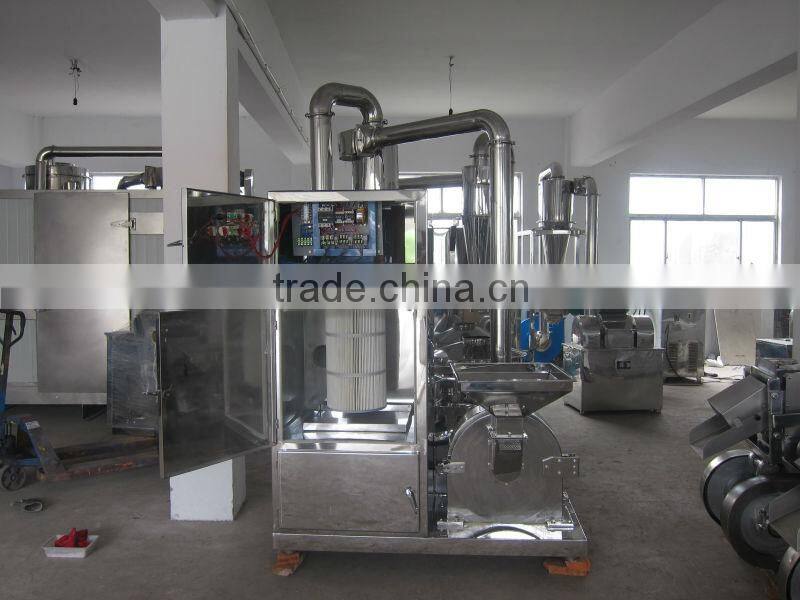

With dust absorption
Output sample
1) Professional advice and rich experience help to choose machine.
2) Lifelong maintainance and considerate technical support
3) Technicians can be sent to abroad to install.
4) Any problem before or after delivery, you could find and talk with us anytime.
5) Video / CD of test running and installation, Maunal book, tool box sent with machine.
Q1:Are you a factory or trading company?
A: We are a factory.
Q2: When can I get the price?
A: We usually quote within 24 hours after getting your inquiry if you are urgent to get the price. Please call us or tell us in your email so that we will regard your inquiry priority.
Q3: How can I have a Proforma Invoice or Quotation?
A: You can have Proforma Invoice/Quotation either by providing us the list of your requirements through fax, email or by sending an enquiry.
Q4: What are your payment terms?
A: All payments should be made in US dollars, unless specified in the quotation sending to you.
For the convenience of our buyers, we offer two different payments terms: Full advance payments and Part Payments in advance.
Q5: How does your factory regard quality control?

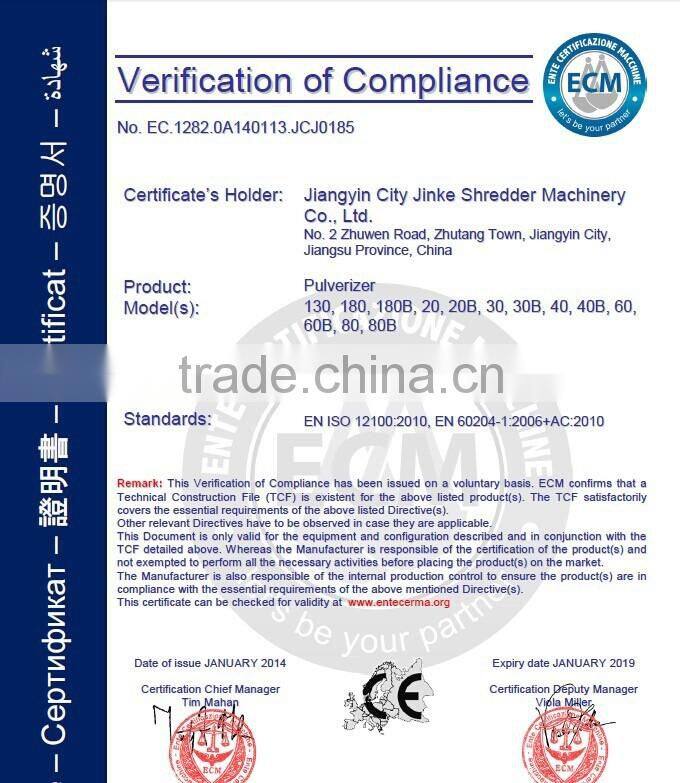

A: Quality is priority, we always attach great importance to quality control from raw materials to the very end. Our factory has gained CE, ISO and FAD authentication.
