Specifications
Stable chemical performanceHigh cold crushing strength
Excellent thermal shocking performances
Good anti corrosion ability

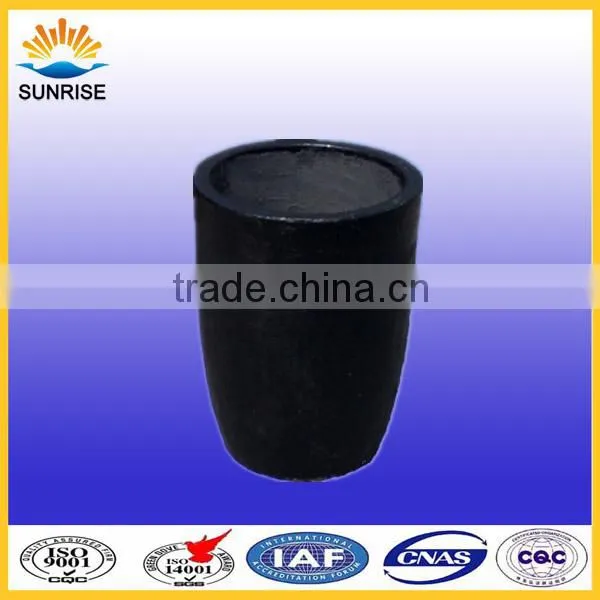

The silicon carbide crucible used the SIC as the primary materials .
It has the the futher of good thermal conductivity,
good high temperature strength,
wear resistant and erosion resistant,
and good thermal shock resistance.
And it is widely applied in lining non-ferrous metal smelting; calcining-endure board,pushing board,and saggar of industrial ceramics;muffle boot of furnace; lining and ignitor of CFBB;lining and ignitor of CFBB; lining if garbage incinerates,etc.
item |
index |
specification value |
physical property |
volume & density (g/cm2) |
≥2.67 |
air-hole rate(%) |
≤16 |
|
bending strength in normal temperature,20 (MPa) |
≥42 |
|
bending strength in high temperature,1400 (MPa) |
≥50 |
|
(conductive)heat coefficient,1000 (W/m·k) |
≥15.5 |
|
high-compression resistancein normal temperature(MPa) |
≥180 |
|
chemical composition |
Sic (%) |
≥ 72 |
Si3N4(%) |
≥21 |
|
Fe2O3 (%) |
≤1.0 |
|
Si(%) |
≤0.5 |
