Fused Cast Skid Rail Block Used in Steel Pusher Metallurgical Furnace
- Shanghai/Qingdao/Tianjin
- T/T Money Gram
You May Like
-
High Quality Skid Rails Fused Cast Skid Tail Block
-
Skid Rails Refractory Block Fused Cast Skid Rail Block
-
Skid Rails Refractory Block Used for Gliding Rail Bricks
-
Fused Cast Skid Rail Block Used Rail in the Interior for Destructors
-
Rail Blocks Used for Skid Rails Refractory
-
Supply High Quality Refractory Product Mullite Sillimanite Brick
Product Details
| Place of Origin | Henan, China | Shape | Block | |
| Material | Other, Al | |||
| Al2O3 Content (%) | ≥73 | |||
| CaO Content (%) | ≤0.5 | |||
| Model Number | TY-GM5 | Brand Name | Sunrise, Sunrise |
Product Description

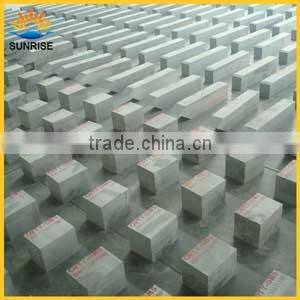

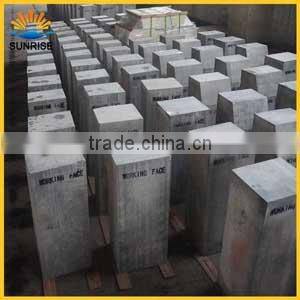

fused cast skid rail block used in steel pusher metallurgical furnace
Specifications
Fused Cast Skid Rail Block
1:High abrasion
2:Temperature resistance
3:Top quality, long service time.
Product description
Fused Cast Skid Rail Block are made of raw materials such as high-grade bauxite and Australia imported zircon sand, which are melted and founded in high temperature electric furnace. It is mainly used in areas that require high abrasion and temperature resistance, such as gliding rail bricks in steel pusher metallurgical furnaces, the tapping platform style walking beam furnaces, and also as the interior for destructors .
Applications
1: For skid rails refractories of steel reheating furnace.
2: Gliding rail bricks in steel pusher metallurgical furnaces
3: The tapping platform style walking beam furnaces.
4:The interior for destructors
Physical properties and chemical composition
( % )Chemical Composition | ||
SiO2 | 19 | |
Al2O3 | 73 | |
Na2O | 1.0 | |
ZrO2 | 5.5 | |
Others | 1.5 | |
Physical Properties | - | |
True density(g/cm3) | 3.54 | |
Cold crushing strength(Mpa) | >350 | |
(%)Thermal expansion rate(%) 1150°C | 0.8 | |
Thermal Conductivity(500-1500°C) | 4.6w/m.0k | |
Porosity | <4% | |
Bulk density (g/cm3) | PT | ≥3.0 |
WS | ≥3.2 | |
Crystalline hpase composition( % ) | - | |
Corundum | 38% | |
Porzite | 40% | |
Glass phase | 17% | |
Baddeleyite | 5% | |
Trading Process

Zhengzhou Sunrise Refractory Co., Ltd. is mainly engaged in the production and development of refractory
materials for glass , petrochemistry, metallurgy, construction and nonerrous metal industries. Our main
products include fused cast AZS 33, 36,41, fused cast αβ alumina brick, crucibles, furnace fireclay bottom
block, silica, high alumina, magnesia, corundum, chrome, zircon, mullite, zirconia mullite, silicon carbide,
sillimanite, alumina bubble bricks, various insulation bricks, and ceramic fiber products,etc.
Why choose us?
Long history and various products:
Since 2005, Sunrise had engaged in the production of various fused cast AZS, such as fused cast AZS 1681, fused cast AZS ER 1685,fused cast AZS 1711, glass furnace fireclay bottom block, mullite brick, zircon brick, alumina bubble brick, sillimanite brick, corundum brick, low porosity fireclay brick, high alumina brick, all kinds of glass furnace ramming masses, sealing materials, building fireclay, etc.
So we have abundent experience on the design and production of refractory materials.
Abundent experience:
Sunrise can offer the customer excellent service relating to the production line of the float glass, which includes the design and advisory of the furnace and the tin bath, the matching of the materials and its construction. The products made by our company have been use in more than 80 production lines of float glass and production line of glass products both at home and abroad.
Our promise:
Sunrise conscientiously observes the government's line, policy, laws and regulations, follows the international trade practice, adheres to the principle of equality and mutual benefit, complies with contract and keeps the promise. BWTC upholds the principle of "combining industry with trade", "technology with trade" and "export with import", to serve its customers at home and abroad sincerely!
If you are interested in our products, please feel free to contact us! The best service will be offered!
