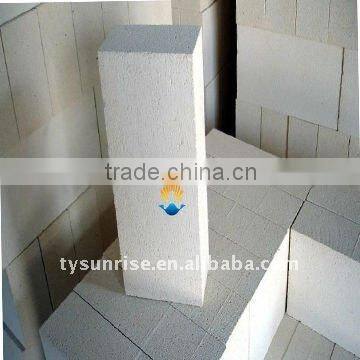

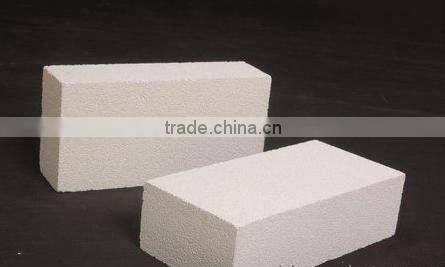

Help CenterThermal Bricks Refractory Mullite Kiln Insulating Firebricks for Glass Furnace
Related Products
-
High Alumina Cement Refractory Alumina Bubble Brick for KilnNegotiableMOQ: 1 Ton -
High Alumina Light Weight Insulating FirebrickNegotiableMOQ: 1 Ton
-
Manufacturer of Thermal Insulating Brick Fire Clay Insulation BrickNegotiableMOQ: 1 Ton
-
Refractory Mullite Insulating Firebrick for Glass Fusing KilnNegotiableMOQ: 1 Ton
-
Light Weight Fire Brick High Alumina Lightweight Insulating BricksNegotiableMOQ: 1 Ton
Specifications
insulation brick1.Low thermal conductivity
2.High hot compressive strength
3.Perfect Energy saving
Description:
Lightweight mullite refractory bricks are made from good quality and superpure raw materials, with strictly classified fillings according to their grades. These fillings can form a uniform pore structure after burnt during the process of manufacture. Each grade of products has unique design to meet different thermal, physical and chomical demands.
Application:
The refractory linings of hot surfaces or backing heat-insulating layers of other refractory materials. The refractory linings or heat-insulating materials of the industries, such as, ethylene pyrolysis furnaces, tubular furnaces, reforming furnaces of synthetic ammonia, gas generators and high-temperature shullte kilns,etc.
Sunrise Brand |
JM23 |
JM26 |
JM28 |
JM30 |
JM32 |
|
USA Brand |
IFB2300 |
IFB2600 |
IFB2800 |
IFB3000 |
IFB3200 |
|
Classification Temperature (°C) |
1260 |
1430 |
1540 |
1650 |
1760 |
|
Bulk Density (g/cm3) |
0.55-0.60 |
0.78 |
0.88 |
1.03 |
1.25 |
|
Cold Crushing Strength (Mpa) |
1.2 |
1.6 |
2.1 |
2.5 |
3.5 |
|
Modulus of Rupture (Mpa) |
0.9 |
1.4 |
1.6 |
2.1 |
2.1 |
|
|
Reheating Linear Change (%) CT-30 °CX 8H |
1230°C -0.5 |
1400°C -0.5 |
1510°C -0.5 |
1620°C -0.9 |
1730°C -0.9 |
|
|
Thermal Expansion 1000°C(%) |
0.5 |
0.7 |
0.8 |
0.9 |
1.1 |
|
Thermal conductivity(W/m.k) |
400°C |
0.14 |
0.27 |
0.32 |
0.41 |
0.49 |
600°C |
0.16 |
0.29 |
0.34 |
0.43 |
0.5 |
|
800°C |
0.18 |
0.31 |
0.36 |
0.44 |
0.51 |
|
1000°C |
0.20 |
0.33 |
0.38 |
0.45 |
0.53 |
|
Al2O3 (%) |
37 |
58 |
67 |
73 |
77 |
|
Fe2O3 (%) |
1.0 |
1.0 |
1.0 |
0.5 |
0.4 |
|
