Home > Products > Glass Mold Brick > Easy to be machined Glass Mold Brick
Easy to be machined Glass Mold Brick
- 5000 Square Meter / Square Meters per Month
- Tianjin/Dalian/Qingdao
- T/T Credit Card
- Shandong supplier fiber reinforced calcium silicate board
- Placa de silicato de calcio 1000 * 500 * 50 mm
- High density thermal insulation material, high-temperature refractory lining
- High density calcium silicate board, carbon fiber, glass fiber
- High density non stick calcium aluminosilicate board
- Cement plant, power plant, aluminum plant, steel plant, chemical plant, metallurgical industry, thermal insulation board
Product Details
Place of Origin: | Henan, China | Shape: | Block | Material: | Other, Glass Mould Brick |
Al2O3 Content (%): | 25 | ||||
Model Number: | TY-MD | Brand Name: | SUNRISE |
Product Description

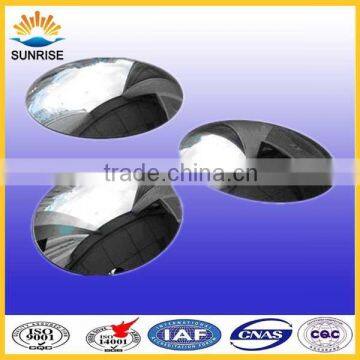

Easy to be machined Glass Mold Brick
With the development of the world automobile industry in recent years the technology on
rearview mirror is also greatly improved, as demands a higher request on mold bricks in
terms of its performance and quality. We have been working on the research and development.
of Mold Bricks since 2000, and in March 2003 success was achieved in the trial manufacture,
in Sep 2003 a Mold Brick production line was established, and we are now a factory
specialized on Mold Brick for Viewing Mirrors.
Product Characteristic:
1. Low permanent linear change on reheating
Firing under the temperature of 1050 Degree. Ensures no distortion and no permanent linear
change on the mold bricks.
2. High dense structure
MD Mold Brick is manufactured from micron grade material, which is pressed molding
following being mixed by high speed blender. The maximum rod is 1000 with extremely fine
section structure.
3. Good Thermal Shock Stability.
No cracks even chap would be happening after long service of the bricks
4. Easy to be machined.
Products Application:
The Mold Brick is manufactured based on the customer request, which avoids waste from
cutting of the big blocks.
We have established good fame among our customers since our mold brick line was put into
production with some performances superior to similar products available in the market.
MD mold bricks could also be used in thermal bending glass, thermal melting glass and art
glass. We sincerely welcome the comments from all our customers.
Specification:
No. | L(mm) | W(mm) | H(mm) |
1 | 450 | 250 | 25-150 |
2 | 450 | 320 | 25-150 |
3 | 300 | 300 | 25-150 |
4 | 380 | 300 | 25-150 |
5 | 510 | 270 | 25-150 |
6 | 510 | 510 | 25-150 |
7 | 440 | 360 | 25-150 |
8 | 600 | 480 | 25-150 |
9 | 500 | 380 | 25-150 |
10 | 900 | 900 | 25-150 |
Besides the specifications as listed above we meet your satisfaction based on customer
requests, any problem don’t hesitate to contact us.
Physical and Chemical Indext:
Item | Behaviors | |
TY-MD | ||
Typical Chemical Composition % | Al2O3 | ≥25 |
Fe2O3 | ≤1.5 | |
Cold Crushing Strength Mpa | ≥10 | |
Cold Bending Strength Mpa | ≥1.5 | |
Permanent Linear Change(%) 1000℃X24h | ≤0.5 | |
Thermal conductivity 350±10℃(W/m.k) | ≤0.35 | |
Bulk Density(g/cm3) | ≥1.0 | |
Grain Size (mesh) | ≤200 |
Production Equipment:
Testing Equipment:
Abundent experience:
Sunrise Refractory can offer the customer excellent service relating to the production line of the float glass, which includes the design and advisory of the furnace and the tin bath, the matching of the materials and its construction. The products made by our company have been use in more than 80 production lines of float glass and production line of glass products both at home and abroad.
1. What's the color of your products?
Reply: Different bricks are featuring with different colors, for example, the fireclay bricks are generally yellow, fused cast AZS are mostly white. You may send the specification and requirements to us, our technician and factory will provide you with pictures and specific solutions.
2. Would you please send us some samples?
Reply: Our company can provide 100*100*50 samples for free. However, the frieght should be born by the clients. In particular case, if the mould is required to be made first for some special shaped blocks, the mould cost and sample fees assumed by clients will be highly appreciated.
