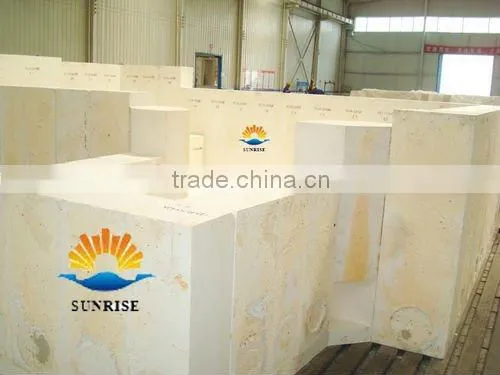

AZS33# fused cast AZS TY-33PT for container, bottle furnace

Specifications

1.AZS block has passed ISO
2.erosion-resistance to glass metal
3.low pollution

fused cast refractory brick Advantage:

1. AZS block has passed ISO
2.erosion-resistance to glass metal
3.low pollution

Features:

1. Strong glass corrosion resistance and high thermal shack stability.

2. Good RUL, wear-resistance, dregs-resistance and alkali corrosion resistance.

3. The products are adopting superior material, with process by special arc furnace forming it. This fused cast technology got nearly no suffer from electrode pollution.

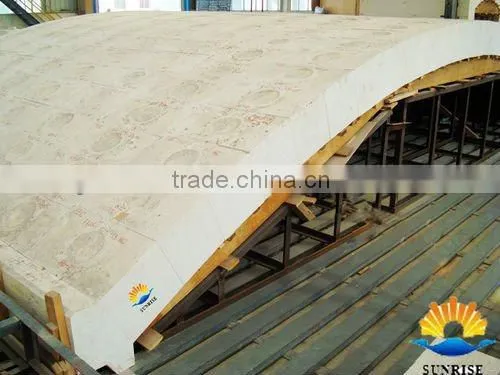

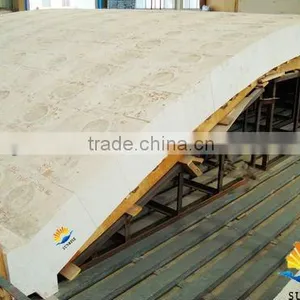

According to above, they can be used at parts where chemical erosion is serious and temperature changes frequently, can be widely used in the lining of glass furnace, the chemical industrials, metallurgical furnace

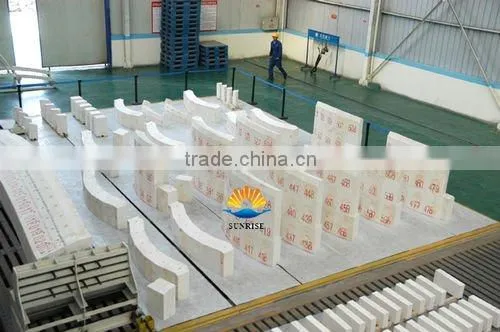

Our company can produce serious specification fused cast 33#, 36#, 41#AZS block for glass furnace and its output is over 5000tons per year. In the enormous working premises—more than 6600square meters, there are one 5tons outside cooling electric arc furnace, high-power transformer, thaw craft with computer control system and internal advanced fused cast refractory umeral caontrol grinding equipments according to its body producing ability.

Erosion-resistance to glass metal

Physical and chemical index

Item		Behaviors
		AZS-33# ER 1681	AZS-36# ER 1685	AZS-41# ER 1711
Chemical Composition	Al2O3	≥50.00	≥49.00	≥45.00
	ZrO2	≥32.50	≥35.50	≥40.50
	SiO2	≤15.50	≤13.50	≤13.00
	Na2O+K2O	≤1.30	≤1.35	≤1.30
Bulk density g/cm3		≥3.75	≥3.85	≥4.00
Apparent Porosity %		≤1.2	≤1.0	≤1.2
Cold Crushing Strength  Mpa		≥300	≥300	≥300
Exudation Temperature of Glass Phase		≥1400	≥1400	≥1410
Bubble Separation Ratio(1300°C×10h)		≤1.2	≤1.0	≤1.0
Anti-corrosion rate of glass liquid 1500°C×36h (mm/24h)%		≤1.4	≤1.3	≤1.2
Apparent density (g/cm3)	PT(RN RC N)	≥3.50	≥3.50	≥3.70
	ZWS(RR EVF EC ENC)	≥3.65	≥3.70	≥3.90
	WS( RT VF EPIC FVP DCL)	≥3.75	≥3.8	≥4.00
