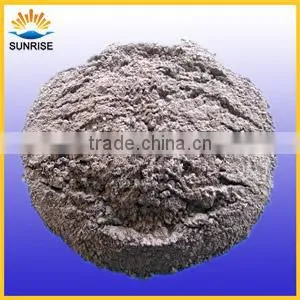

AZSR-50V Refractory Ramming mass for Glass Kiln
USAGE: 1. Open the bag to check if the coagulant agent is dampened or hardened, and then spread the coagulant agent uniformly into the bag;
- Mix certain amount of the mass according to on-site assumption. When it mixes well, add room temperature water by a ratio of 6-7%, or adjust the ratio according to local climatic condition and water content of the mixture. Blend it till there is no raw ramming mass left or till that it will break into pieces instantly when it falls to the ground after one unlooses his grip of the mass from the height of 0.33 meters;
- The construction site and bonder should be clean and without sundries. The leftover well-mixed mass should be covered with plastic sheet film or placed in shady and cool place. The mass that is not dry and hard can be used again; otherwise, it should be crushed and used together with other raw material or abandoned.
- Mix with water to make the material likeslurry then press smooth by vibrating.
Usage:
1. CONCRETING TIME: BEGINNING TIME: 0:15~2:00 HOURS
2. FINISHING TIME: 3:00~6:00 HOURS
3. HEATING TIME: AFTER 150:00 HOURS
4. THIS MATERIAL IS WITHOUT PHOSPHORUS,AND DOES NOT POLLUTE THE ENVIROMENT.
Physical and chemical index
Item |
Behaviors |
||||
|
AZSR-50V ERSOL 50 |
AZSM-06J ERSOL 06 |
AZSM-05 ERSOL 05 |
AZSM-04L ERSOL 04 |
||
|
Chemical Composition |
Al2O3 |
48 |
48 |
48 |
48 |
ZrO2 |
30 |
30 |
30 |
30 |
|
SiO2 |
20 |
20 |
20 |
20 |
|
Others |
2 |
2 |
2 |
2 |
|
Bulk density g/cm3 |
3.2 |
3.1 |
3.1 |
3.1 |
|
Crystallographic analysis after being sintered at 1300/1500°C |
Corundum, zirconium oxide |
Corundum, zirconium oxide |
Corundum, zirconium oxide |
Corundum, zirconium oxide |
|
Thermal conductivity |
Good |
Good |
Good |
Good |
|
Anti-corrosion property |
Excellent at 1300°C |
Excellent at 1300°C |
Excellent at 1300°C |
Excellent at 1300°C |
|
particle diameter of grain |
0-5mm |
0-0.6mm |
0-0.5mm |
0-0.4mm |
|
Application temperature |
Cold/low temperature |
Cold/low temperature |
Cold/low temperature |
Cold/low temperature |
|
Quantity of water |
8-10% (proportion by weight) |
10-12% (proportion by weight) |
10-12% (proportion by weight) |
10-12% (proportion by weight) |
|
Solidification |
Water (ceramic) |
Water (ceramic) |
Water (ceramic) |
Water (ceramic) |
|
Packaging |
25kg/bag |
25kg/bag |
25kg/bag |
25kg/bag |
|
Quality guarantee period |
12 months |
12 months |
12 months |
12 months |
|
Used for |
Under bottom paving, spreading, Melting end and working area |
Under bottom paving, spreading and the place between fused cast brick and ERSOL 50 |
Under bottom paving, spreading, and the joint between bricks of two layers that are between the fused cast brick and ERSOL 50 |
Joint between bricks of two layers |
|
We sincerely welcome you to inquire for the products of AZSR-50V Refractory Ramming mass!
Why choose us?
Long history and various products:
Since 2005, Sunrise had engaged in the production of various fused cast AZS, such as fused cast AZS 1681, fused cast AZS ER 1685,fused cast AZS 1711, glass furnace fireclay bottom block, mullite brick, zircon brick, alumina bubble brick, sillimanite brick, corundum brick, low porosity fireclay brick, high alumina brick, all kinds of glass furnace ramming masses, sealing materials, building fireclay, etc.
So we have abundent experience on the design and production of refractory materials.
Abundent experience:
Sunrise can offer the customer excellent service relating to the production line of the float glass, which includes the design and advisory of the furnace and the tin bath, the matching of the materials and its construction. The products made by our company have been use in more than 80 production lines of float glass and production line of glass products both at home and abroad.
Our promise:
Sunrise conscientiously observes the government's line, policy, laws and regulations, follows the international trade practice, adheres to the principle of equality and mutual benefit, complies with contract and keeps the promise. BWTC upholds the principle of "combining industry with trade", "technology with trade" and "export with import", to serve its customers at home and abroad sincerely!
If you are interested in our products, please feel free to contact us! The best service will be offered!
