Specifications

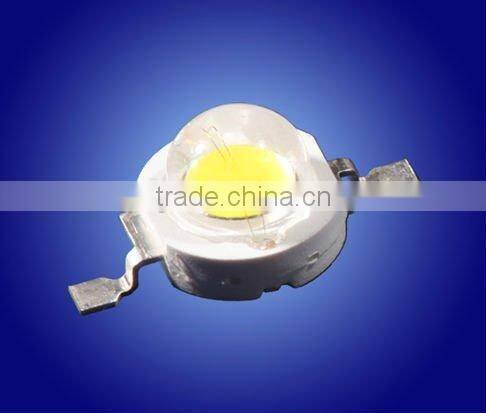

1w led diode1. high lumen
2. 80,000 hours lifespan
3. 0% degradation for 3000 hours
4. Free sample available
Specifications:
Absolute Maximum Ratings (Ta = 25°C) :
Items | Symbol | Absolute maximum Rating | Unit | |
Blue/Green/White | Red/Yellow | |||
Power Dissipation | PD | 3000 | 2100 | mW |
DC Forward Current | IF | 700 | 700 | mA |
Peak Pulse Forward Current* | IFP | 1200 | 1200 | mA |
Average Forward Current | Iavg | 800 | 800 | mA |
Reverse Voltage | VR | 5 | 5 | V |
LED Junction Temperature | Tj | 125 | 125 | °C |
Operating Temperature | Top | -30 ~ +80 | -30~+80 | °C |
Storage Temperature | Tstg | -40 ~ +100 | -40 ~ +100 | °C |
Soldering Temperature | Tsol | Max.260°C for 5 sec Max (4mm from the base of the lens ) | ||
Typical Electrical & Optical Characteristics ( Ta = 25°C):
Part No | Color Temperature | Forward Voltage(V) | Test Condition | Viewing Angle (Typ.) | Luminous Flux | ||
Min. | Typ. | Max. | |||||
SS-S07W1C-N | 6000-7000K | -- | 3.8 | -- | IF = 700mA | 120 | 110-130lm |
Product advantages:
Also can get: Red, Green, Blue and Yellow color
More than 24 hours aging test
80,000 hours lifespan
High stability, 0% degradation for 3,000 hours continuous working
High efficiency and high brightness
can work with reflow soldering and wave soldering
Comply to RoHS approval
Free sample available
