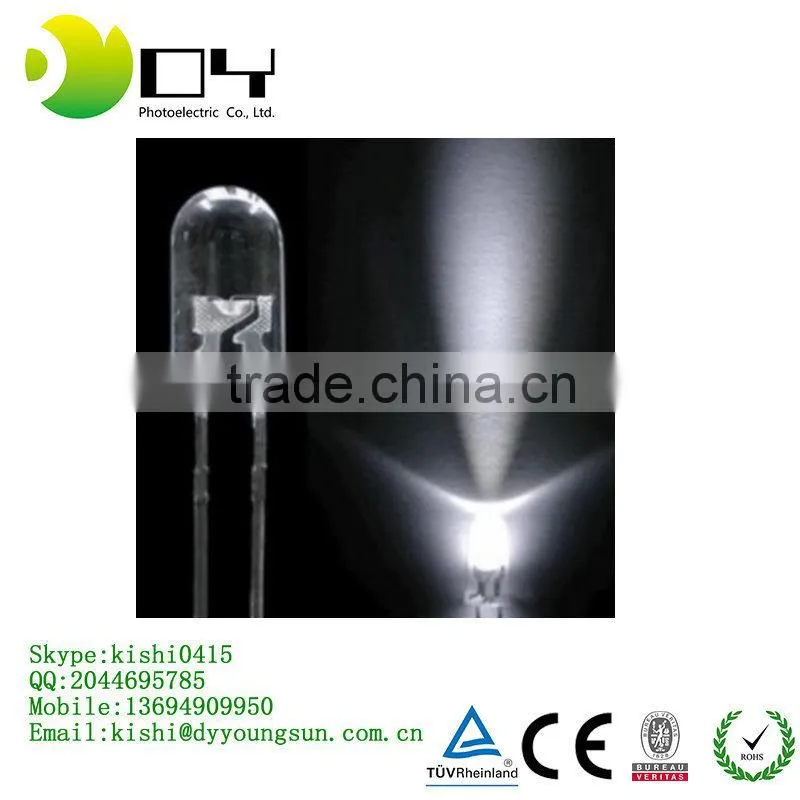

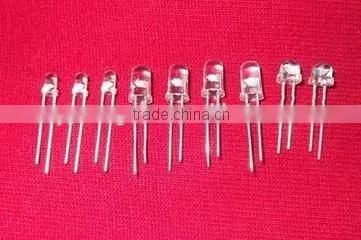

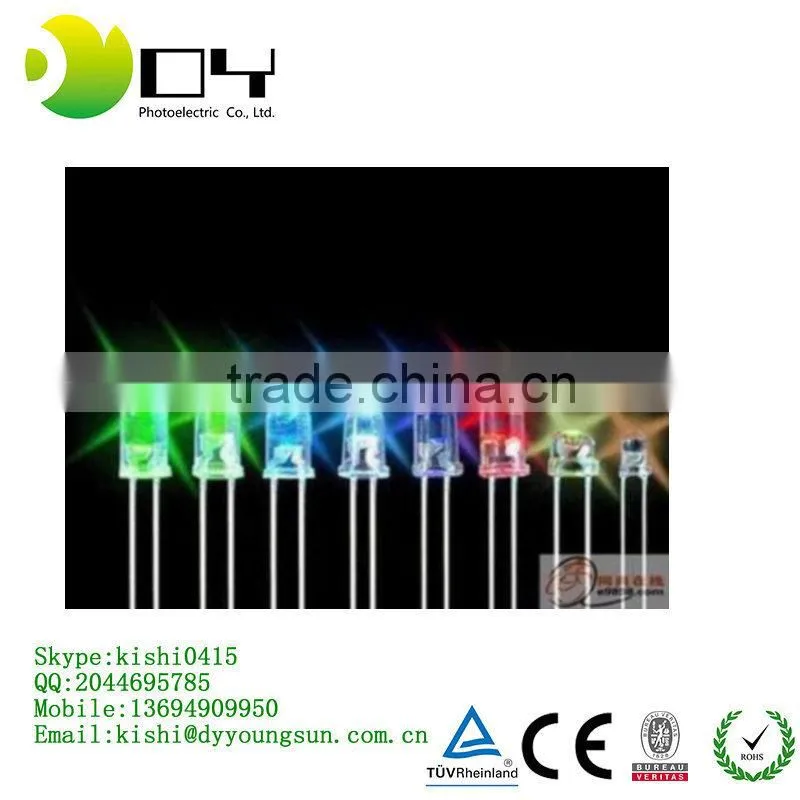

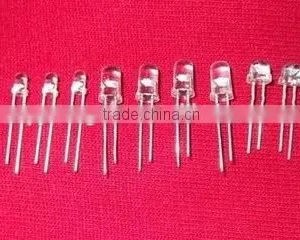

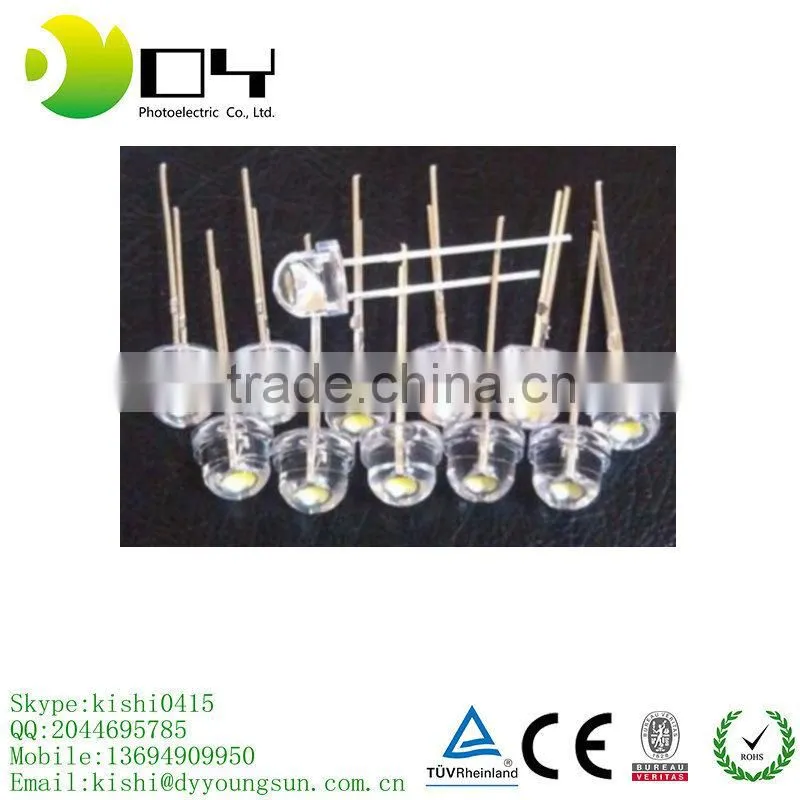

F5 Straw Hat LED Diodes Utra Bright 4.8mm short Lead Red Green Blue Yellow Orange Pink Purple White Warm white

Name

5mm round led diodes

Brand name

KeHong

Place of origin

Guangdong China (mainland)

Model number

KH-5044URC1

Usage

Indoor and outdoor

Pixels

16nm

Tube chip color

Various colors are available

Certification

ISO9001-2008

ROHS and CE

Products advantages

1. Imported PCB

2. long life according to technical experiments

3. High efficiency and tested by many customers

4. Sold state reliability

5. Luminous evenly distributed on each segment

6. Provides excellent reliability in bright ambient light

7. Sold state reliability

8. competitive price

9. size and colors can be provided by your application

10. chips sourced from Taiwan and America

11. imported PCB

12.Fire proof REF

s different LED displays size specifications

14.ISO9001-2008 and ROHS certificate

15 Excellent character appearance

Applications

1.Audio equipment or Instrument panels

2.General use for digital indicators

3.Multimedia product

4.Digital read out display

Forward Voltage

Red: 1.8v to 2.5V

High bright red/orange: 2.0V

Blue/pure green: 3.5v

Green:2.2v to 5.0v

yellow/amber: 2.0v to 5.0v

Dominant Wavelength

and

Luminous Intensity

Red: 630nm to 650nm, 50mcd to 60mcd

High bright red: 620nm to 625nm, 80mcd

Green: 560nm to 570nm, 13mcd to 14mcd

Pure green: 510nm to 520 nm, 180mcd

Yellow: 585nm to 590 nm, 14mcd to 50mcd

Amber: 600nm to 610nm, 30mcd

Orange: 630nm, 30mcd

Important notes

Reverse voltage: 5.0v

Recommend use current/segment 5 to 10 mA

Operating temperature range: -25 to + 75 degrees Celsius

Our company is following the business philosophy of “Strive for survival on the basis of quality, strive for development on the basis of technology, with market as orientation, with service as principle.”

If you need any led, please do not hesitate to contact us. It is our pleasure to give you the best service, competitive price, high quality led with fastest speed.
