INOCO high performance static mixer nozzle

Specifications

1,customized is available
2,high efficiency
3,Type:static mixer

Products specification

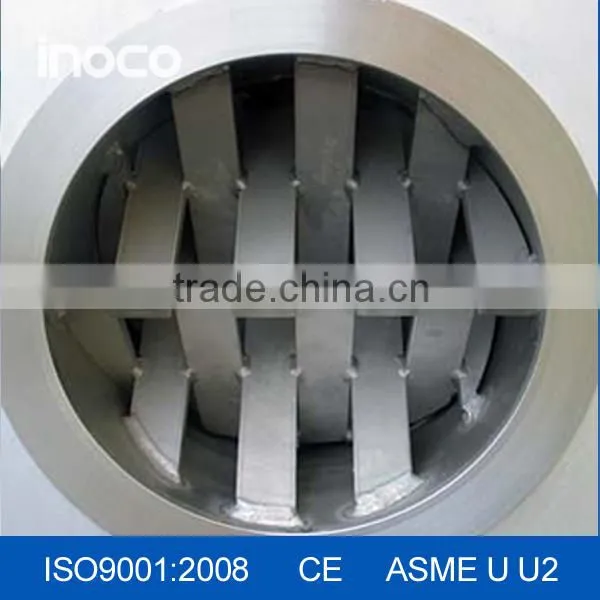

SX unit constitutes many X-type units by crossing horizontal bars according to certain rules.. It is appropriate for the mixing, reaction and absorption processes of medium and high viscosity liquids with a viscosity of no more than 10 centipoises, or the mixing and reaction process of polymer flow in production; it has a better effect on handling a large quantity.







                                           STATIC MIXER PIPE DATA SHEET

Mechanical Design Data
Static mixer scope of supply	Housing and mixing element
Pipe diameter
End Connection	ASME 16.5 Class 150
Design Temperature (°C)
Design Pressure, (Barg)
Quantity

Material of Construction
Body	API 5L Gr B / A516 Gr70
Flanges	A105N
Type of Flanges	ASME 16.5 Class 150
Insulation	Rock Wool (By others)
Mixing elements	SS 304
Max. length available (mm)

External Painting System
Surface Preparation	Blast cleaning to ISO 8501-1,Sa 2.5
1st coat
2nd coat
3rd coat



 Products style:





SX type application:

It is suit for mixing, emulsifying, reaction, absorption, extraction, and enhanced heat transfer process of liquid - liquid, liquid – gas and gas – gas.

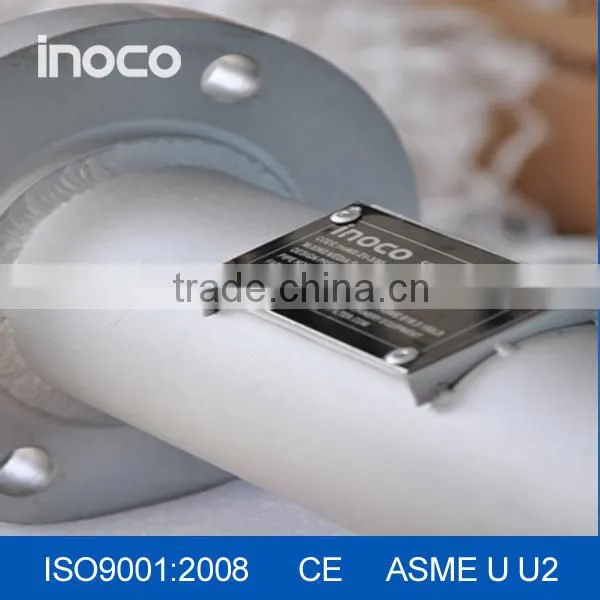

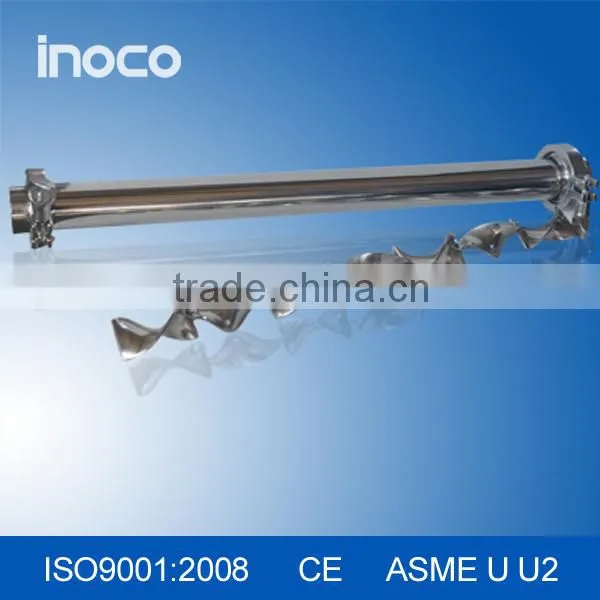

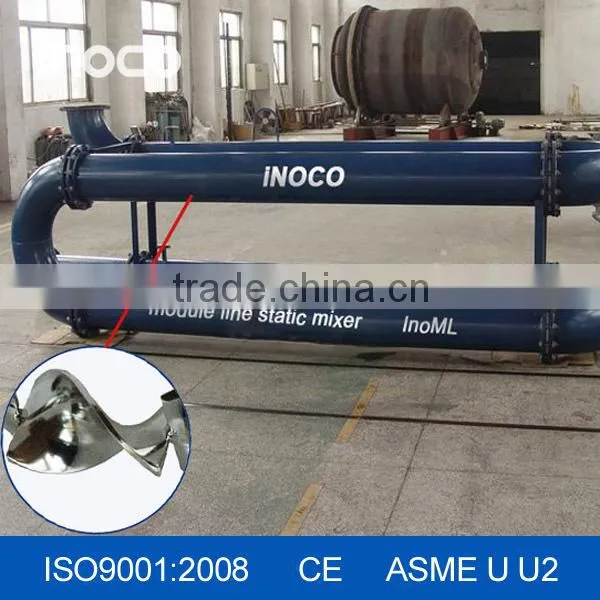

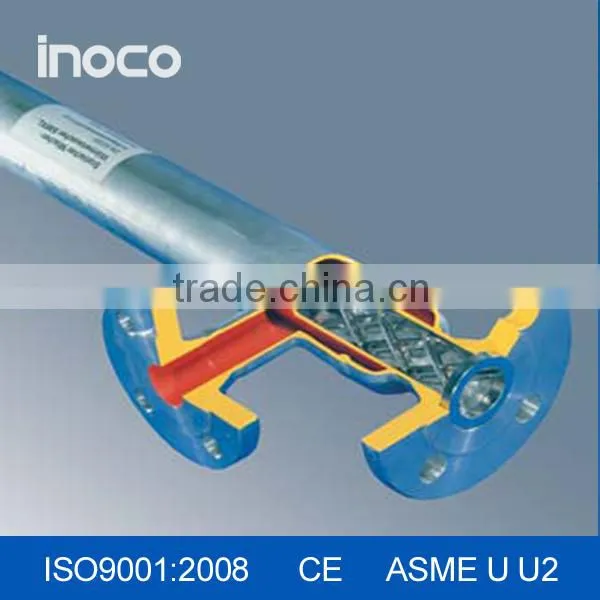

Products show

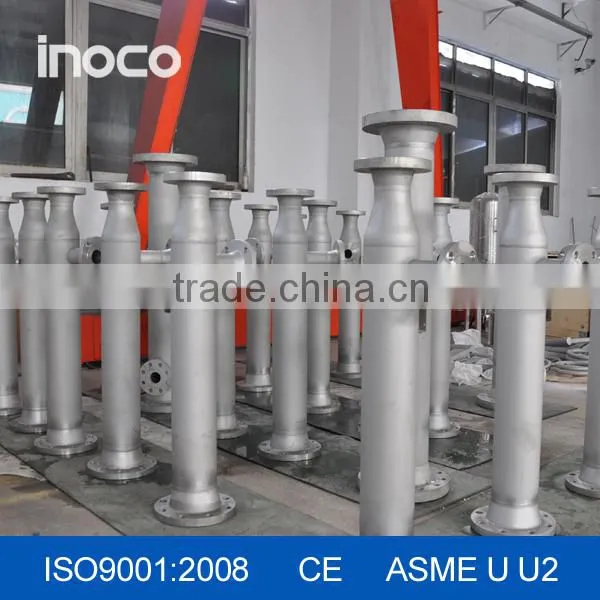

Manufacture ability & qualification



Inoco filtration equipment always pay much attention to development in high technology to maintain the world-class quality. And we are the first one operation Project Management in filtration solutions in China. All our project managers are authorized by PMI with PMP certification.

Fast reply service,We established fast reply service center ,the final aim of our company is customer satisfactions.



For more detials,please contact oversales department guys freely!
