1,INOCO-SGA-Dseries high pressure filter
Description >>
The working pressure range of SGA-D series high pressure filter is 25-400 bar, and it is the most security and reliability record range. Compared with other products in filter industry, HS series high pressure filter provides considerable technical and economic advantages for high pressure operation system.
Material >>
Top shell: CS(optional 16 MnR III), SS(316 III)
Bottom shell: CS(optional 16 MnR III), SS(316 III)
Sealing: fluorine rubber
Connection: flange, thread, butt welding
Filter element >>
Polyester filter element, glass fiber filter element
Washable Stainless steel filter element
Filtration precision: 0.003 micron to 10 micron
2, High pressure filter Specification

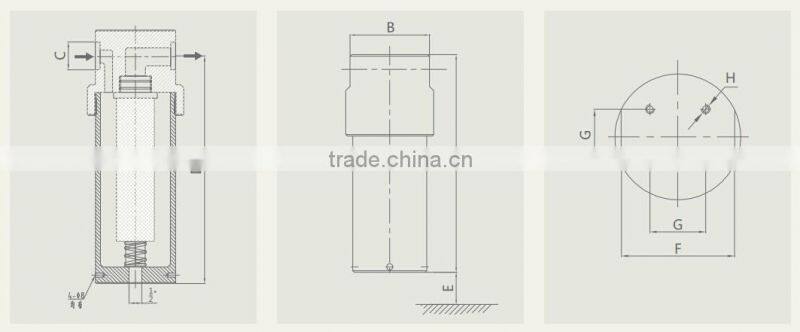

| Filter model | Max flow rate m3/min @7bar | Max working pressure barg | Installation specification mm | |||||||
| A | B | C | D | E | F | G | H | |||
| SGD-D-30 | 30 | 64 | 165 | 85 | R1/4" | 145 | 130 | 90 | 50 | 4 x M8 |
| D-60 | 60 | 64 | 165 | 85 | R3/8" | 145 | 130 | 90 | 50 | 4 x M8 |
| D-120 | 120 | 64 | 205 | 105 | R1/2" | 185 | 190 | 110 | 50 | 4 x M8 |
| D-180 | 180 | 64 | 230 | 105 | R3/4" | 205 | 190 | 110 | 50 | 4 x M8 |
| D-270 | 270 | 64 | 235 | 119 | R1" | 210 | 190 | 130 | 70 | 4 x M10 |
| D-360 | 360 | 64 | 290 | 119 | R1 1/4" | 255 | 250 | 130 | 70 | 4 x M10 |
| D-480 | 480 | 64 | 315 | 150 | R1 1/2" | 280 | 250 | 160 | 80 | 4 x M10 |
| D-720 | 720 | 64 | 405 | 186 | R2" | 365 | 340 | 200 | 110 | 4 x M10 |
| Filter model | Max flow rate m3/min @7bar | Max working pressure barg | Installation specification mm | |||||||
| A | B | C | D | E | F | G | H | |||
| SGD-D-30 | 30 | 64 | 165 | 85 | R1/4" | 145 | 130 | 90 | 50 | 4 x M8 |
| D-60 | 60 | 64 | 165 | 85 | R3/8" | 145 | 130 | 90 | 50 | 4 x M8 |
| D-120 | 120 | 64 | 205 | 105 | R1/2" | 185 | 190 | 110 | 50 | 4 x M8 |
| D-180 | 180 | 64 | 230 | 105 | R3/4" | 205 | 190 | 110 | 50 | 4 x M8 |
| D-270 | 270 | 64 | 235 | 119 | R1" | 210 | 190 | 130 | 70 | 4 x M10 |
| D-360 | 360 | 64 | 290 | 119 | R1 1/4" | 255 | 250 | 130 | 70 | 4 x M10 |
| D-480 | 480 | 64 | 315 | 150 | R1 1/2" | 280 | 250 | 160 | 80 | 4 x M10 |
| D-720 | 720 | 64 | 405 | 186 | R2" | 365 | 340 | 200 | 110 | 4 x M10 |

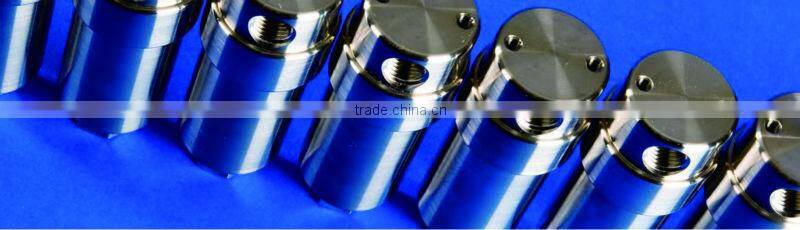

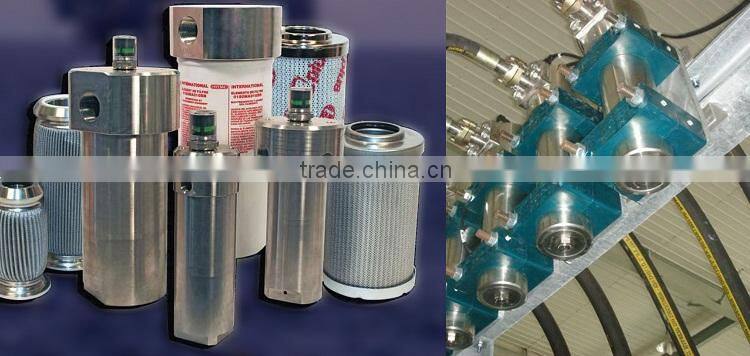

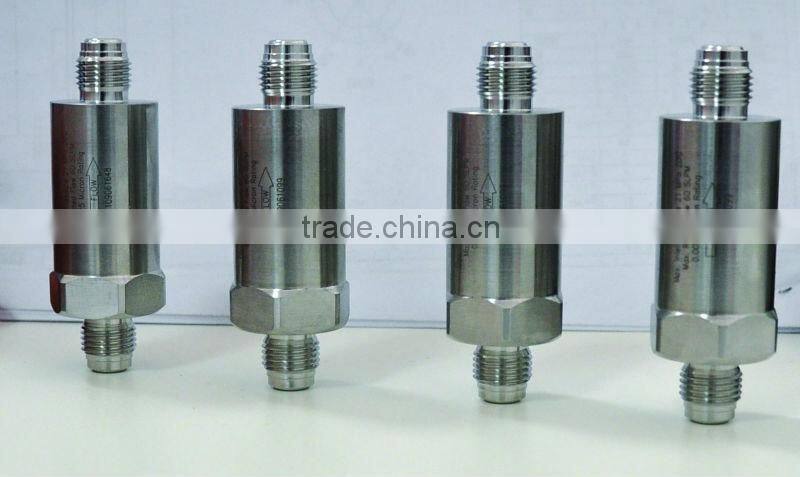

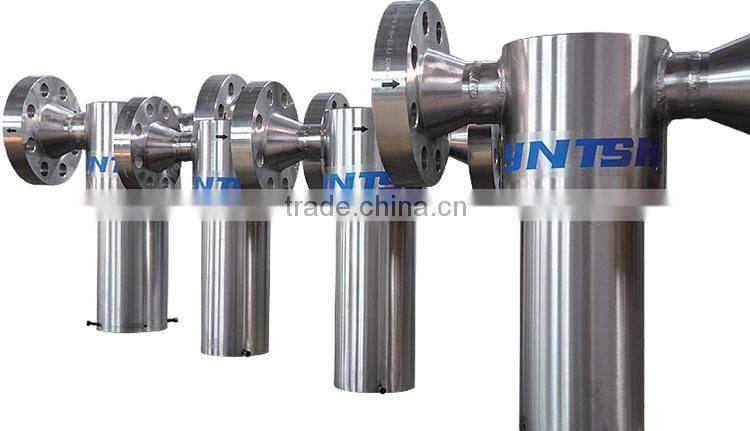

3, Gas filter separator Product show
4, Inoco company capacity
Inoco provide a wide range of filter and filter system for oil production, processing; mining processing, liquefaction, transportation in natural gas industry around the world,used to remove pollutants in liquid or gas. With 18000 companies service experience in worldwide, leading filter laboratory, strong manufacturing capacity, we can provide you with excellent reliability and high performance products.
Inoco all gas filtration and separation products are available with ASME "U" seal "U2", we can also accept BureauVeritas, TUV third-party certification.
5, Related products
1. GAS FILTER
2. DRY GAS FILTER
3. GAS-LIQUID COALESCER FILTERS
4. WIRE MESH SEPARATOR
5. VANE SEPARATOR
6. CYCLONE SEPARATOR
7. COKE OVEN GAS FILTER
8. GAS CARTRIDGE FILTER
9. LARGE FLOW CARTRIDGE FILTER
10. COMPRESSED AIR FILTER
11. HIGH PRESSURE FILTER
12. CARTRIDGE DUST COLLECTOR
13. AERATION CONE
14. CERAMIC MEMBRANE DUST REMOVAL FILTER
15. ULTRA PURE GAS FILTRATION SEPARATION
16. GAS MEMBRANE SEPARATION DEVICE
For more details pls contact Inoco sales team.
