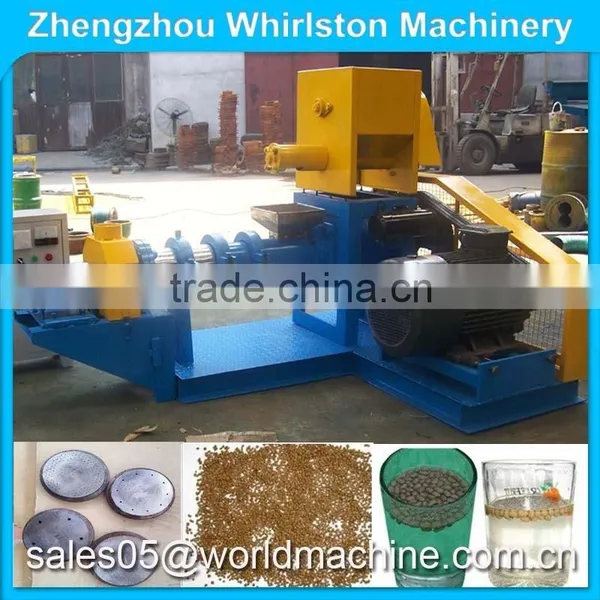

Floating Fish Feed Pellet Mill/pellet Mill for Feed

Floating Fish Feed Pellet Mill/pellet Mill for Feed photo-1
US$ 2,500 - 28,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
WHIR
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai Guangzhou Yiwu Urumchi Erenhot etc
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Henan, China
Brand Name WHIR
Model Number DGP
Type Other, Other, Dry type and wet type
Voltage 380V 50Hz 3pahase
Power(W) 15KW
Dimension(L*W*H) 1460*1020*1250mm
Weight 400 kg
Certification CE ISO9001
Warranty 12 months, One year
After-sales Service Provided Engineers available to service machinery overseas



Contact Person: Yolanda

Mobile/Whatsapp: 0086 15286828736

Skype:jia.yolanda

QQ:1464054528



Product Description



1>.Intorudction:

The machine is widely used for producing grains into high-grade aquatic feed pellets for fish, catfish, shrimps, crab and pet like dog cat etc. The puffing fish feed pellets can float on the water surface without dissolution for 24 hours.



2>. Raw material:

Type: Flour,corn starch,rice bran,meat meal,bone meal,fish meal,soybean meal etc.

Fitness: about 60-80mesh which were crushed and mixed.

Moisture content: about 20%-25%.

Oil content: ≤10%
Starch content: ≥30%

floating fish feed pellet mill/pellet mill for feed



3>.Technical parameters:



ModelScrew diameterCapacityMain powerFeeding powerCutting power
DGP5050mm60-80kg/h11kw0.4kw0.4kw
DGP60 φ60mm120-150kg/h15kw0.4kw0.4kw
DGP70 φ70mm180-250kg/h18.5kw0.4kw0.4kw
DGP80 φ80mm300-350kg/h22kw0.4kw1.1kw
DGP90 φ90mm400-450kg/h30kw0.6kw1.5kw
DGP120 φ120mm500-700kg/h55kw1.1kw2.2kw
DGP135 φ133mm800-1000kg/h75kw1.1kw2.2kw
DGP160 φ155mm1200-1500kg/h90kw1.5kw2.2kw
DGP200 φ195mm1800-2000kg/h132kw1.5kw3.0kw

 floating fish feed pellet mill/pellet mill for feed

floating fish feed pellet mill/pellet mill for feed



floating fish feed pellet mill/pellet mill for feed



4>.Working principle:

After the material is sent into feeding device, they will be pressed by the screw shaft with high pressure and temperature which makes the raw material fully cooked and sterilized. Then the pressed material will be formed into pellets by shaping mould. You can change different moulds to make pellets with different diameters. After that a cutting device will cut the formed pellets into different length as required



5>.Finished pellets:

 1) With different moulds, the machine can produce different diameter food, from 1mm to 12 mm. The fish feed can be floating over 24 hours.

2 ) It can produce different shapes feed for dog, cat etc. Diameter 6-8mm.

 floating fish feed pellet mill/pellet mill for feed

floating fish feed pellet mill/pellet mill for feedfloating fish feed pellet mill/pellet mill for feed





Packaging & Shipping



Packing:Export standard packaging or in container

Shipping:By sea

MOQ:1 set

Delivery time:With 4-7 days

Payment terms:T/T,West union,L/C at sight

floating fish feed pellet mill/pellet mill for feed

Our Services

1.We provide technical English manual and installation video and formula.
2. We send extra easy wear parts for free including two sleeves, one screw, one cutting knife and three die moulds.Provide technical support in any time.

3.Warranty:One year

floating fish feed pellet mill/pellet mill for feed

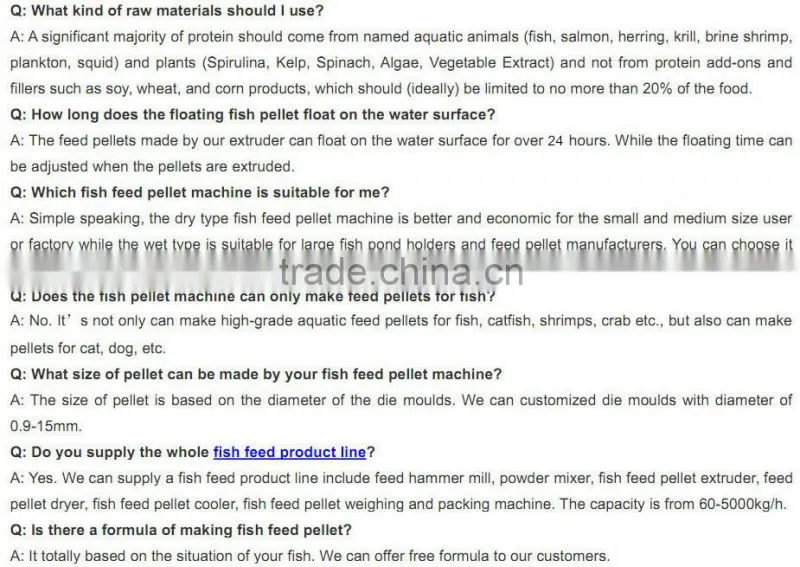

FAQ

 floating fish feed pellet mill/pellet mill for feed





Production Flow

  Raw material---crushing system---Mixing system---Extruding system----Drying system----Flavoring system--Packing system

floating fish feed pellet mill/pellet mill for feed

 Voltage in China: Three phases: 380V/50Hz,  we can make it according to customers’ Local voltage according to different countries.

And for the production line,differenct capacity the machines will have a little different.
