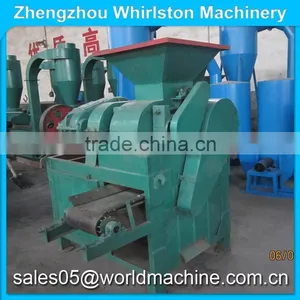

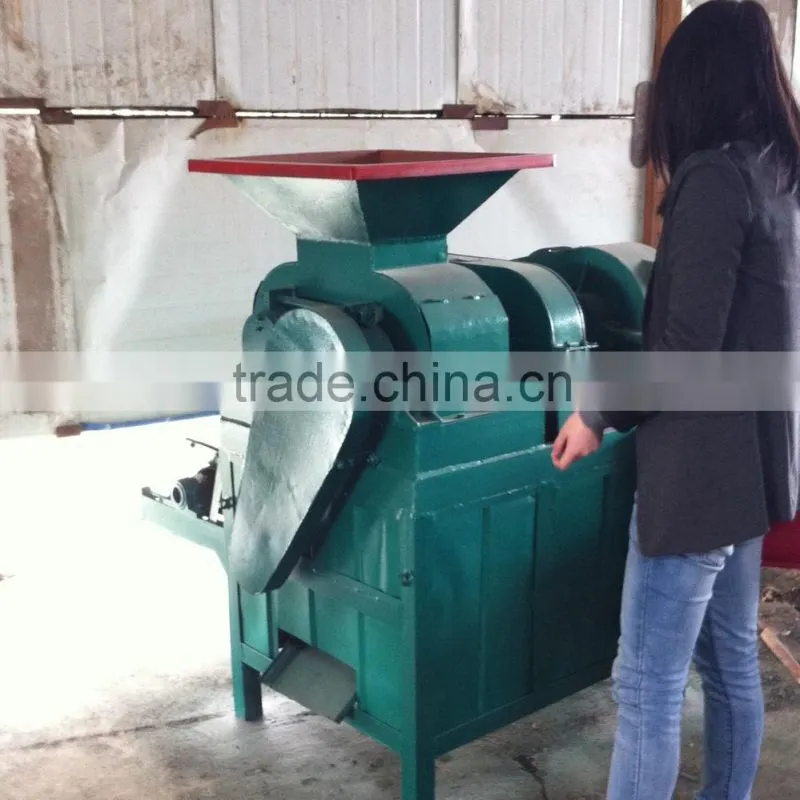

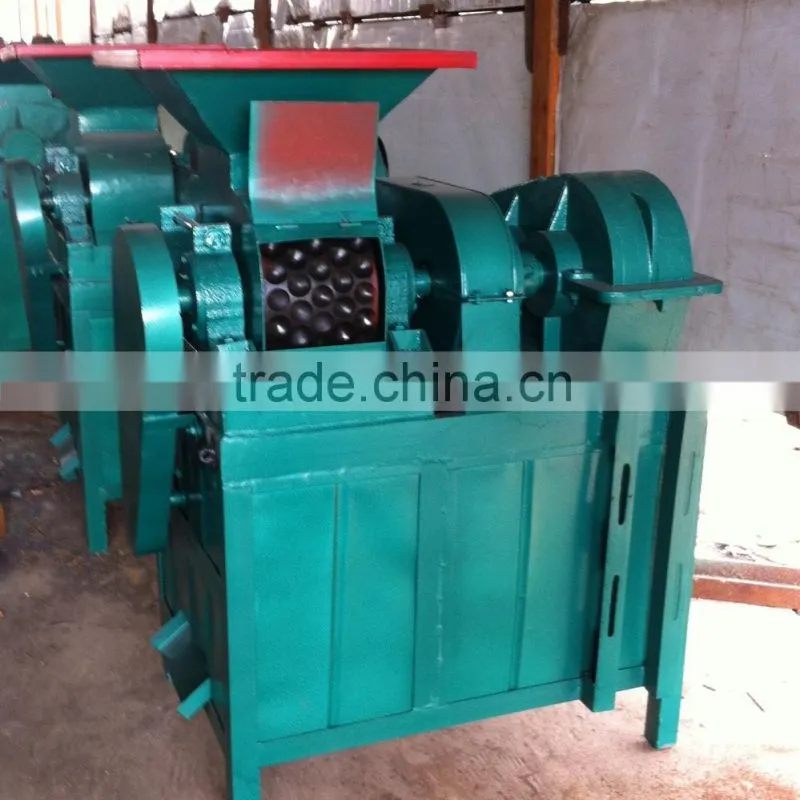

Large capacity screw press coal powder briquette making machine for sale
1.Introduction
This briquette machine is used for pressing coal powder, iron, coke, aluminum powder, iron filings,
iron oxide skin, toner, charcoal powder, slag, gypsum, tailings, sludge, kaolin, activated carbon, waste
materials powder and waste residue. It is also widely used in refractories, electric powder plant,
metallurgy, resource, chemical and other industries.This machine is energy-saving and easy to transport.Also,it increases the use of the waste materials and economical benefits.

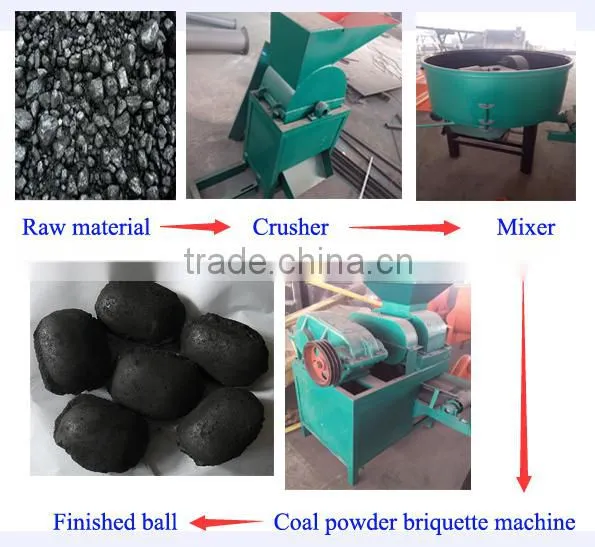

2.Raw material
Mineral power,coal power,charcoal power,coal dust etc.
If you raw mateiral is not power,you will need a crusher.

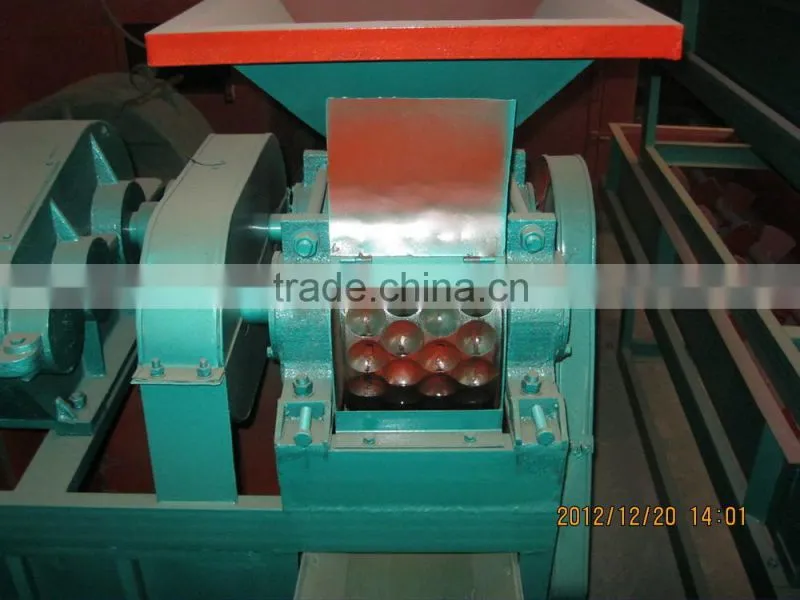

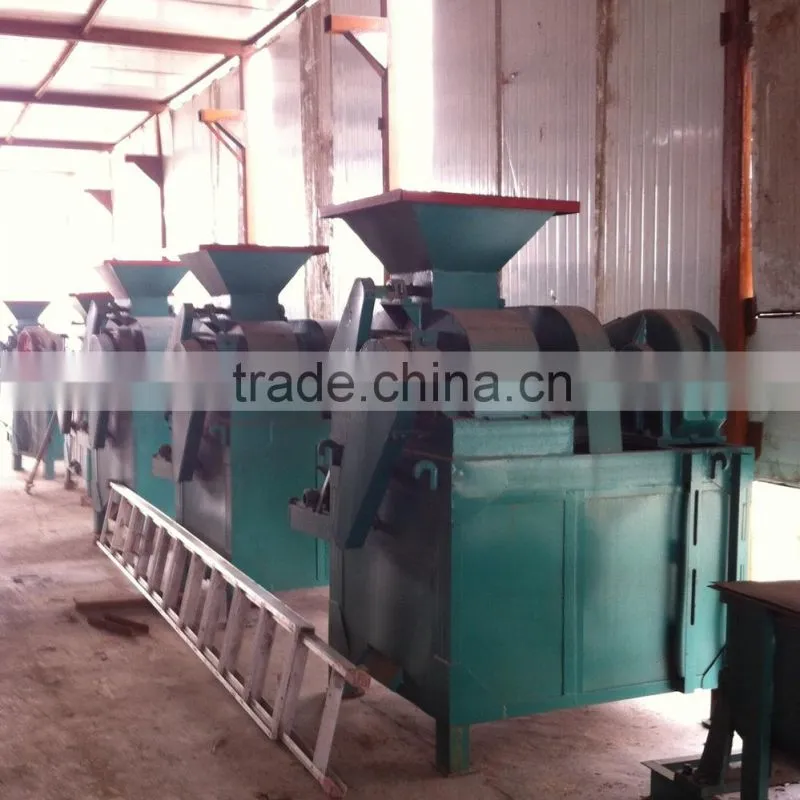

3.The structure
The coal powder ball press machine is mainly consisting of three parts: the feeding part, The transmission part, the Molding parts.(1). Feeding part, mainly to realize feeding materials to the main machine quantitative, and make sure materials can enter into the rollers uniformly .
(2). The transmission part: the main driven system is electric motor--Triangle strip--speed reducer--open gear--roller.
(3). The molding parts: mainly referring to the host part, the core part is roller.
4.Technical Paramaters
Model |
Roller Diameter |
Power |
Capacity |
T290 |
290mm |
5.5kw |
1-2ton/h |
T360 |
360mm |
7.5kw |
3-5ton/h |
T400 |
400mm |
11-15kw |
4-6ton/h |
T450 |
450mm |
15-18.5kw |
6-8ton/h |
5.Working Principle
This series of briquette machine will pass the power on to the two pressure roller through the reducer.
The two sides and roll rotation, in both the rotating roll,Natural materials to enter the ball roll mode, with
the roll rotation, material pressure on a small become larger, When the material to the two rollers
rotating line contact point, the pressure of materials has reached the peak. Tremendous pressure in the
role of line, the materials become a finished product from the powder ball.

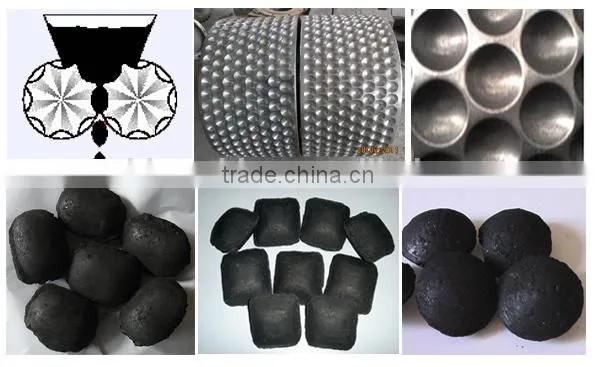

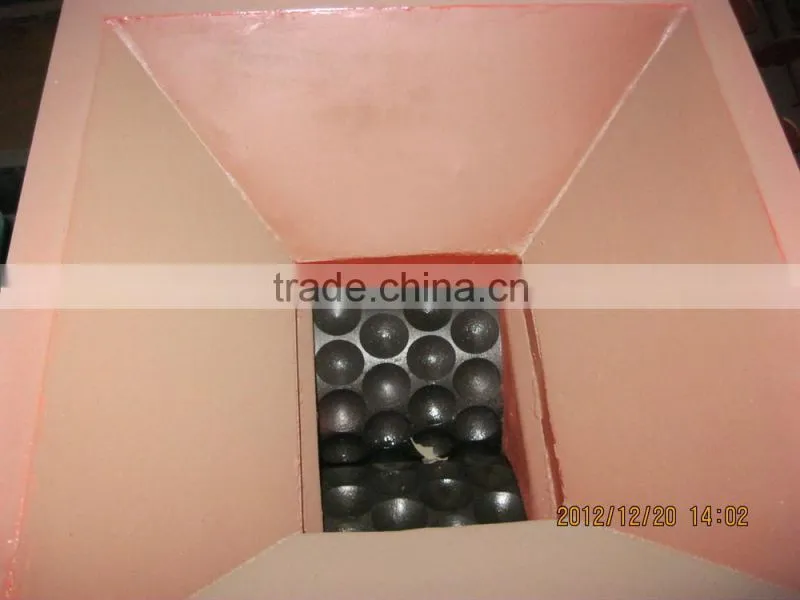

6.Molds and Samples of the finished coal briquettes
The material of the coal ball press machine could be 65 Mn or 9crsMo, or alloy steel.
Generally, there are two rollers type or four rollers type.
The shape of the finished coal briquettes could be egg shape, square shape, pillow shape etc.
The size of the finished coal briquettes is 30-60mm, and we can also offer it according to your requirement.
The finished coal briquettes have the features of energy conservation and environment protection, convenient to transport, improving the utilization rate of the waste material, having good economic and social benefit.
7.Features
The briquettes have the features of high density, high strength, and high hardness since the raw
material was suppressed by roller under high pressure.
Besides, this machine is also suitable for suppressing all kinds of mineral powder, metal powder,
coke powder and others

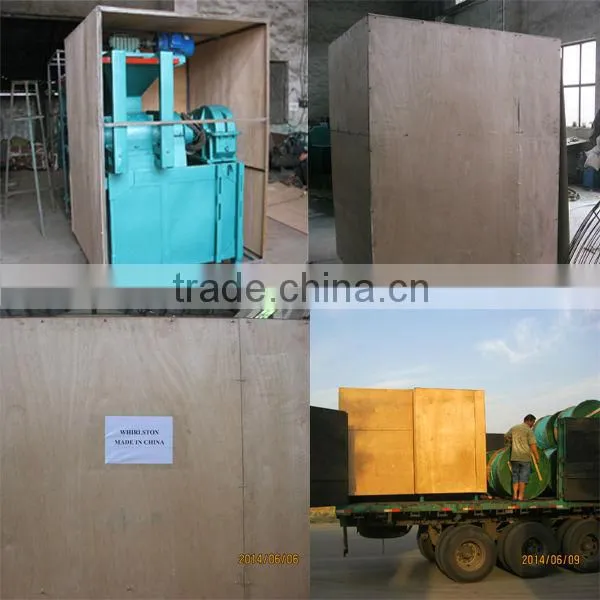

Packing:Export standard wooden case
Shipping:By sea
MOQ:1 set
Delivery time:Within 3-5 days
Payment terms:T/T
