New arrival Modern type agricultural offset trailed medium disc harrow
-----Description of trailed medium disc harrow
The 1BJ series Middle-duty Disc Harrow's front gangs are assembled with scalloped disc, and rear gangs with plain disc. The harrows are adopted a whole frame made of quadrangular steel tubes by welding, So their structures are simple and reasonable, strong and durable. Their processes are perfect. The bearing is ball bearing with sphere-outside and square-inside, its rated load is large, trailing resistance is small, sealing is good. They're convenient to operate and maintain. Efficient in pulverizing and penetrating into the soil and leaves the land with a smooth, even tilth. All these satisfy the agricultural requirements of intensive cultivation.
The 1BJ series middle-duty Disc Harrow are suitable for pulverized and loosening clods on sticky heavy clay soil after ploughing and for planning the land before sowing. On cultivated land, the machines can make soil and fertilizer mix up, and clear away the stump of plants and be used instead of plough on light or medium soil and preparing seed bed for planting.
The 1BJ series Middle-duty Disc Harrow could be used with from 90 HP to 120HP type tractors.
-----Technical data of trailed medium disc harrow
Model |
1BJ-4.4 |
1BJ-5.3 |
Working width(M) |
4.4 |
5.3 |
Overall size(mm) |
2970*2680*1460 |
2970*3260*1460 |
Working depth(mm) |
140 |
|
Dia. Of Disc(mm) |
560 |
|
Thickness of disc(mm) |
4 |
|
Disc spacing(mm) |
230 |
|
Qty. of Disc |
40 |
48 |
Productivity(Ha/h) |
2.7 |
3.2 |
Weight(Kg) |
1750 |
2200 |
Linkage |
Trailed |
|
Matched power(Hp) |
80-100 |
110-150 |
-----Related pictures of trailed medium disc harrow

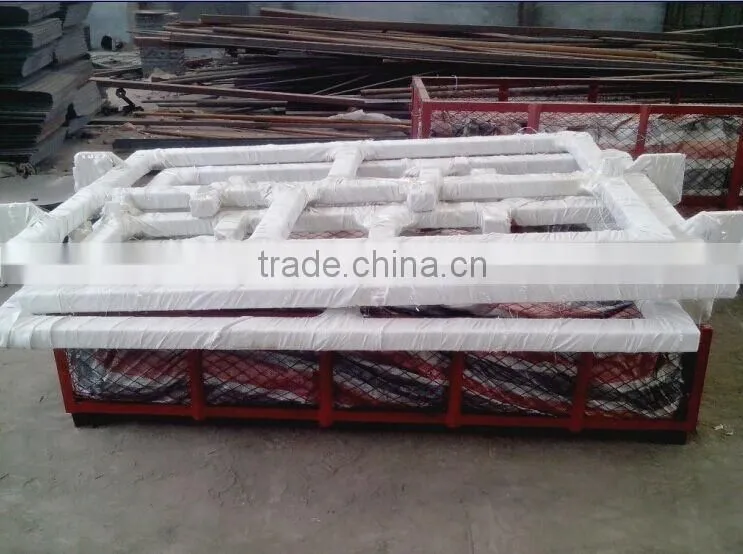

-----Package of trailed medium disc harrow
-----Our services of trailed medium disc harrow
Pre-sale services: we can recommend the best products and more suitable solutions for you according your spacial requirements.
Sale services: follow up the producing, Chartering & Booking Shipping Space and etc.
After-sale services: our engineers are available to service machinery overseas.
-----Contact us about trailed medium disc harrow
1. Agriculture machines
2. Food machine
3. Briquette machine
4. Poultry Feed making machine
We have good sales markets in North America, Africa, East Europe, East and South Asia and other countries and regions. We have professional engineers and salesmen to serve all of our customs.
Any question about our machines, pls contact me freely.
