FCGW-1010KV, 200-1000A
Outdoor-Indoor type
Used for Three-phase AC power distribution unit
Function as polymer insulators

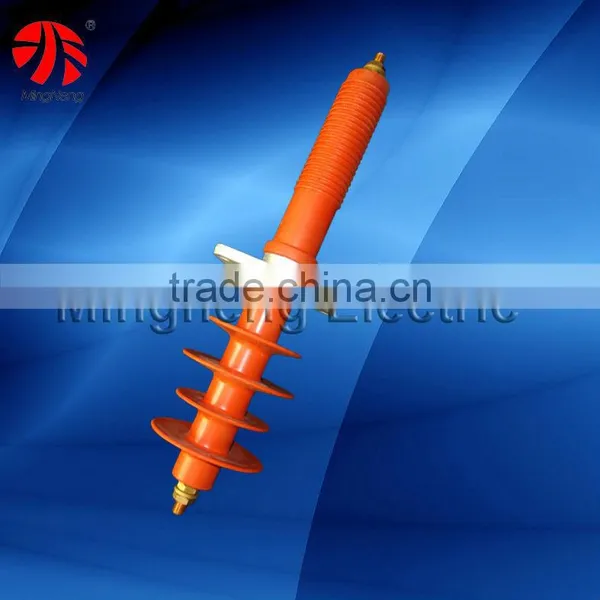

Composite Polymer Dry Wall Bushing Insulators

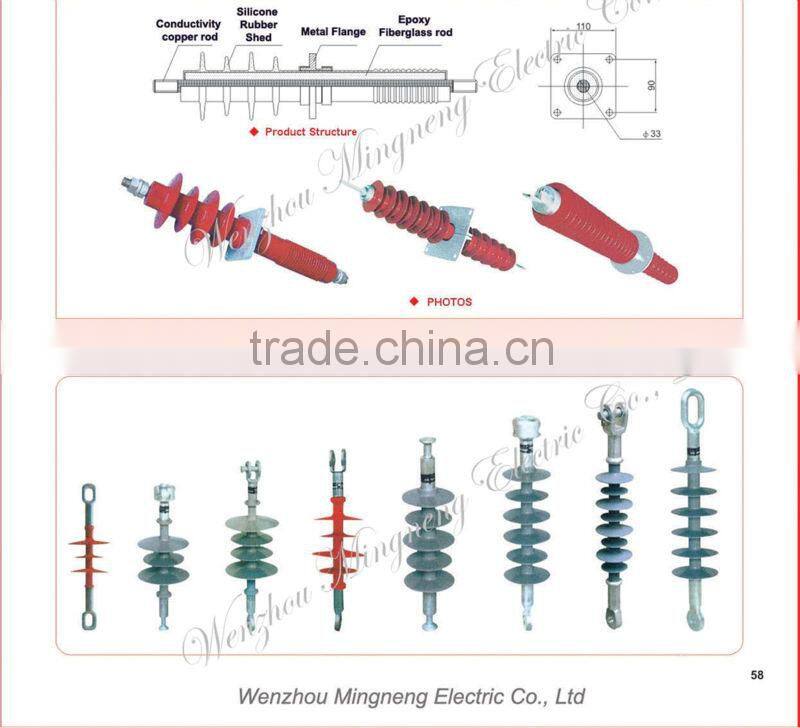

Structure:
- Inner Insulation material: high tension epoxy fiberglass rod
- Outter Insulation material: polymer silicone rubber
Technical Parameters:
| Model | Rated Voltage (KV) | Rated Current (A) | Total Length(mm) | Indoor Length(mm) | Outdoor Length(mm) | Indoor Insulation Distance(mm) | Outdoor Insulation Distance(mm) | Indoor Creepage Distance (mm) | Outdoor Creepage Distance(mm) |
| FCGW-12/250-1000 | 10 | 250-1000 | 535 | 240 | 240 | 200 | 200 | 280 | 380 |
| FCGW-40.5/600-3000 | 35 | 600-3000 | 1200 | 450 | 870 | 450 | 400 | 1015 | 1015 |
| FCGW-72.5/600-3000 | 66 | 600-3000 | 1700 | 780 | 2250 | 780 | 700 | 1900 | 1900 |
| FCGW-126/600-3000 | 110 | 600-3000 | 2870 | 1100 | 1560 | 1250 | 1150 | 3240 | 3240 |
Normal service conditions:
1.The ambient air temperature is no higher than +40 degree. no lower than -40 degree.
2.The altitude above sea level does not exceed 1500m
3.AC Power frequency does not exceed 100Hz
4.Maximum wind speed does not exceed 35m/s
5.The earthquake intensity does not exceed 7 degrees
TEST REPORT:
Product Name: Polymer Wall Bushing
Model: FCGW-35/630
Applicable Standards: GB4109-1999
Construction Height (total length): 1230mm
Insulation Distance: Indoor: 370mm Outdoor: 410mm
Creepage Distance: Indoor: 780mm Outdoor: 1140mm
Power Frequency Voltage Test: 95kV (Qualified)
Dielectric Loss Factor Test: <0.7 (tangent)%
Capacitance test: 210 pF
Partial Discharge Test: <10 pC
Appearance Test: Qualified
