Specifications
1. Smoothly operates at an ambient temperature of 482 Deg F2. Repalcement of OMRON TZ-1G
3. 250 Deg C limit switches

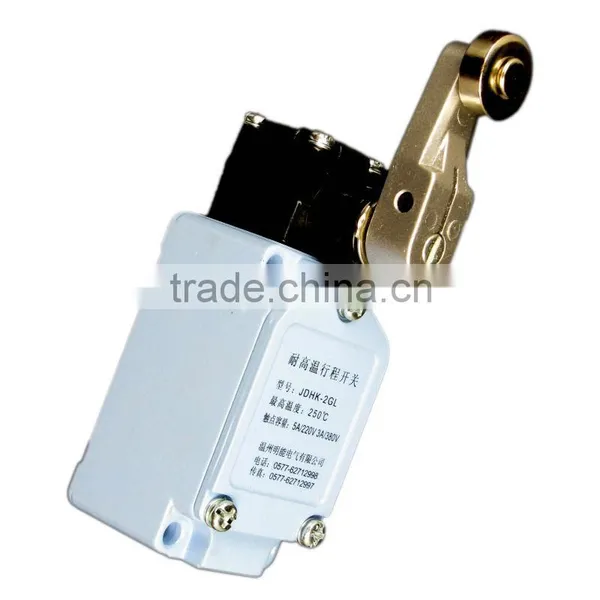

Limit switches for 482 Deg F applications
Characteristics of Limit switches for 482 Deg F applications :
- Long term working Temperature 250 °C
- Double circuit limit switch, widely used
- Solid cast aluminum housing
- High mechanical strength
- Water and impact resistant
- Oil tight
- Easy to maintenance
- Easy to use
- Long Mechanical life
Introduction of Limit switches for 482 Deg F applications:
The interior part: fully sealed high temperature contact switches whose maximum allowable current is 5A/AC 220V. Since the contact is suffered special treatment, it can be used in high temperature environment for a long time without failure from oxidization or pollution.
The highest temperature of JDHK-2 series is 350 °C, while the long term working temperature is 250 °C. As for JDHK-3 series, The highest temperature is 650 °C, while the long term working temperature is 550 °C. It has filled the domestic blank of ultra-high temperature switch field. Every switch has roller, adjustable lever, pressure plunger to meet your different needs. It’s widely used in electrical, chemical, petroleum, textiles, steel and other industries.
Specification of Limit switches for 482 Deg F applications:
Rated Votage |
Non-inductive Load( A ) |
Inductive Load ( A ) |
||||||
(V) |
Resistive Load |
Bulb Load |
Inductive Load |
Motor Load |
||||
|
NC |
NO |
NC |
NO |
NC |
NO |
NC |
NO |
125VAC |
10 |
3 |
1.5 |
10 |
5 |
2 |
||
250VAC |
5 |
2 |
1 |
5 |
3 |
1 |
||
480VAC |
3 |
1.5 |
0.8 |
3 |
1.5 |
0.8 |
||
600VAC |
1 |
1 |
0.5 |
1.5 |
1 |
0.5 |
||
8VDC |
10 |
6 |
3 |
10 |
6 |
|||
14VDC |
10 |
6 |
3 |
10 |
6 |
|||
30VDC |
6 |
4 |
3 |
6 |
4 |
|||
125VDC |
0.8 |
0.2 |
0.2 |
0.8 |
0.2 |
|||
250VDC |
0.4 |
0.1 |
0.1 |
0.4 |
0.1 |
|||
Technical Parameters of Limit switches for 482 Deg F applications :
Operating speed : 0.5mm to 50cm / sec
Frequency mechanical movement: 120 beats / min, electrical: 30 beats / min
Contact resistance: 25m Ω or less (initial)
Insulation resistance: 100m Ω above (under the 500VDC) 1000VAC, 50/60HZ for 1 minute (same polarity)
Withstand voltage:
No-load current and load current between parts: 1500VAC, 50/60 HZ for 1 minute
Between each terminal and ground: 1500VAC, 50/60 HZ for 1 minute
Vibration 10-55HZ, 1.5mm double amplitude
The impact of mechanical durability: 1, 000m / Sec 2 (about 100G 'S more)
Malfunction: 300m / Sec 2 (about 30G 'S more)
Ambient temperature -10 °C to + 250 °C
Humidity <95% RH
Service life of mechanical durability l: 15,000,000 times
Electrical: 500,000 times
Weight of about 275g
Degree of protection IP67

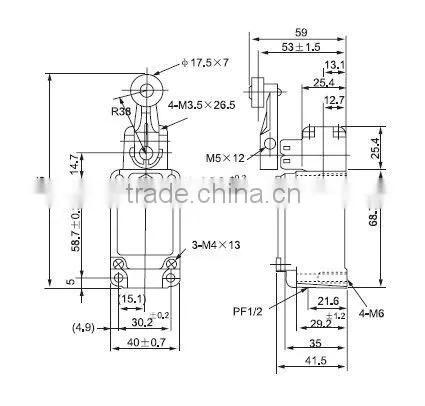

Dimension Drawing of Limit switches for 482 Deg F applications:
