Laboratory test equipment wire bending machine
- 1000 Piece / Pieces per Month
- shenzhen
- T/T Credit Card PayPal
- IEC884-1 UL817 Bending Fatigue Telephone Line Tester
- IEC884-1 UL817 bending fatigue wire harness tester
- Laboratory UL817 Wire Rope Testing Equipment
- UL817 Power Cord Bending WIre Flexing Tester
- Cable and Wire Flexible Pipe Winding Lab test instrument
- high quality Winding tester for PVC wire and cable winding test
Product Details
Place of Origin: | Guangdong, China | Brand Name: | AUTOSTRONG | Model Number: | AUTO-10A |
Power: | Electronic | Usage: | Bending Testing Machine |
Packaging Details
Standard export wooden case/wire bending machine
Product Description

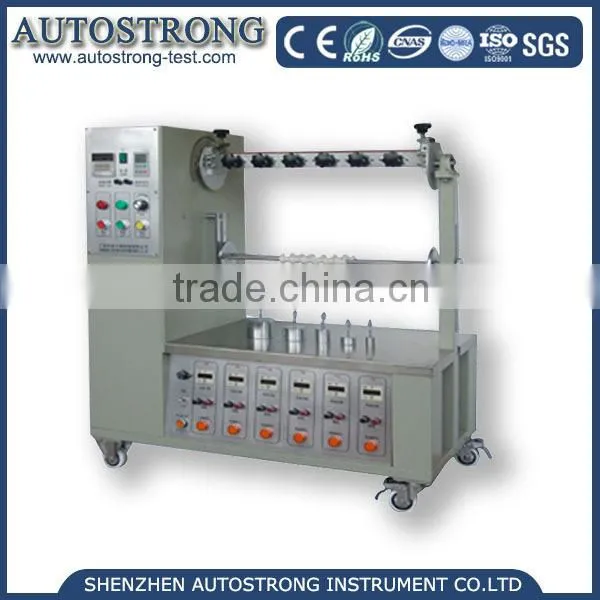

Laboratory Test Equipment UL817 Wire Bending Machine
Application:
The Plug Cord Flexibility Tester can test six cables or cords fitted with plugs simultaneously. This improves testing capacity. IEC 60884-1 calls for 10,000 flexing at a rate of 60 flexing per minute. Halfway through the test, the cords need to be rotated 90°. The plug sockets are designed to make this rotation easy and accurate. This Tester has individual station counters so that any failure data can be retrieved by station.
The cables are connected to a socket and the tail of the cable is connected to the tester to detect if an internal fault occurs with the cable wiring or accessory connection.

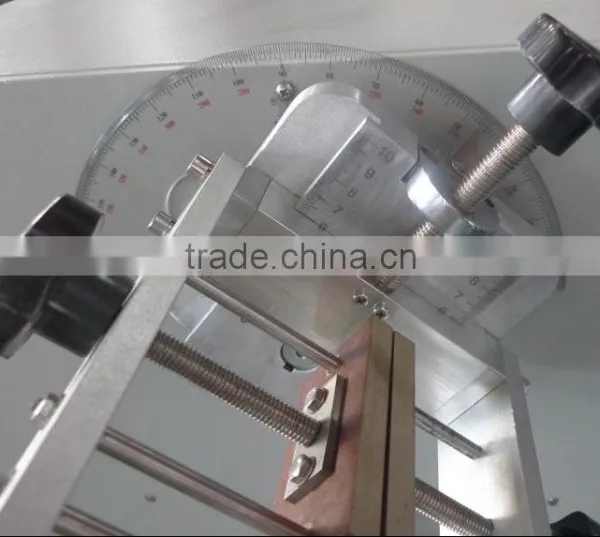

The instrument starts in a vertical orientation and then flexes the specimens 45° on either side of the vertical for a total 90° of flexing. A standard rate of 60 flexing per minute is used but a slower rate can be selected if desired.

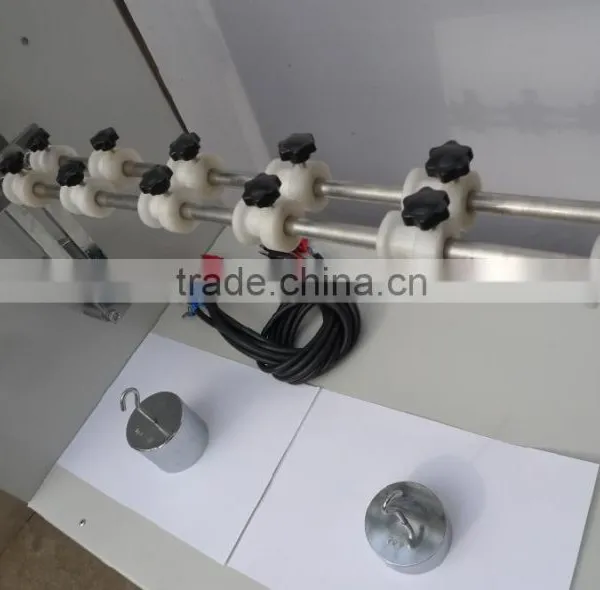

A set of customer selected weights are included with the instrument so that the proper force can be applied to the cable during the test.
Parameters:
Power Supply | 220V 50Hz or 115V 60Hz |
Number of Flex Per Test | 1-999999 (selectable) |
Number of Test Station | 6,lndividual counts for each station |
Rate of Flexing | 10~60 times/min(selectable) |
Flexing Angle | on either side for 45° , 60°, or 90°(or 180°)(selectable) |
Weight | 10N/20N/133g/284g/500g*6(selectable) |
Dimensions | W*D*H=100cm *50cm* 112cm |
Conforms to standard | IEC884-1 Figure 21 and clause 23.4,IEC320-1,VDE0620 |
