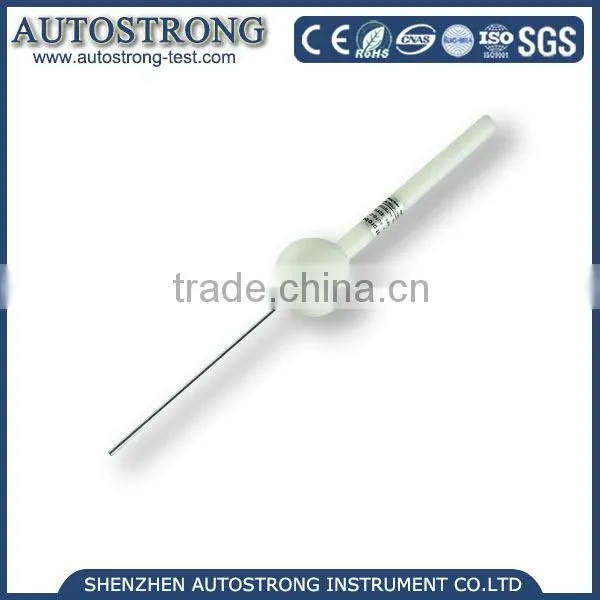

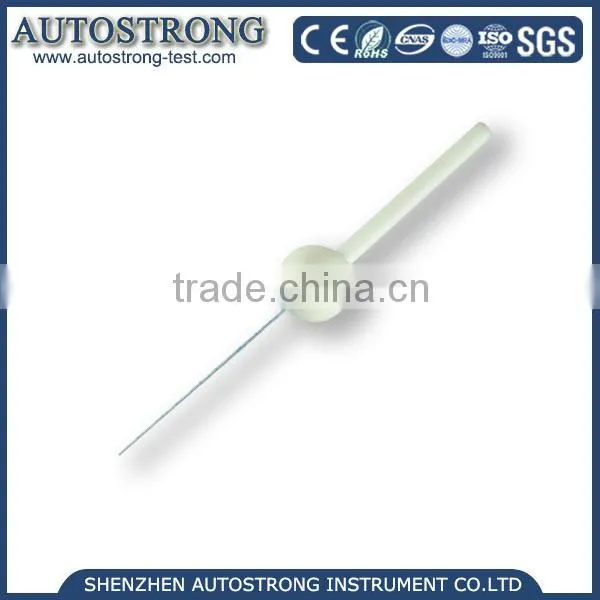

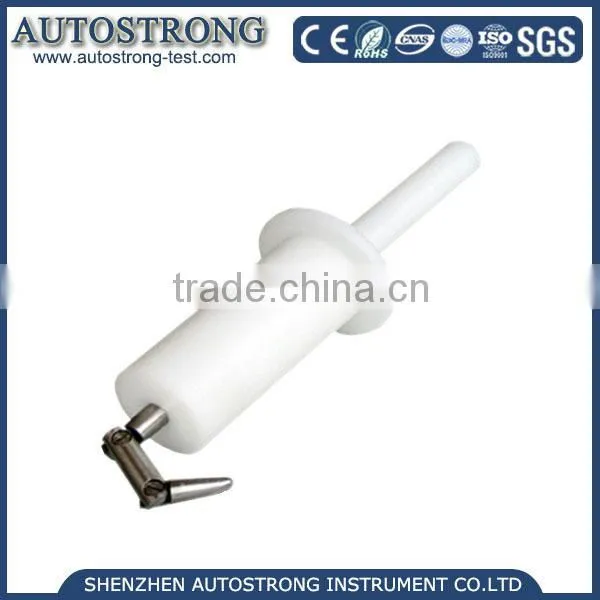

China IEC61032 Test probe A/B/C/D
1.Application:
These probes simulate human fingers,tools and other items that would be hazardous to come in contact with certain parts of products
2.Technical parameter of Access probe A:
| Ball diameter | 50mm |
| Baffle plate diameter | 45mm |
| Baffle plate thickness | 4mm |
| Handle diameter | 10mm |
| Handle length | 100mm |
| Material | plastic(delrin) + stainless steel |
| Reference Standard |
IEC61032 IEC60529 IEC60065 GB/T4208 |
| Finger diameter | 12mm |
| Finger length | 80mm |
| Baffle plate diameter | 50mm |
| Baffle plate length | 100mm |
| Baffle thickness | 20mm |
| Material | plastic(delrin) + stainless steel |
| Reference Standard |
IEC61032 IEC60529 IEC60950 IEC60335 IEC60045 IEC60884 IEC60745 |
| Test probe length | 100mm |
| Test probe diameter | 2.5mm |
| Dam-sphere diameter | 3.5mm |
| Handle diameter | 10mm |
| Handle length | 100mm |
| Material | plastic(delrin) + stainless steel |
| Reference Standard | IEC61032 IEC60529 |
| Test probe length | 100mm |
| Test probe diameter | 1.0mm |
| Dam-sphere diameter | 3.5mm |
| Handle diameter | 10mm |
| Handle length | 100mm |
| Material | plastic(delrin) + stainless steel |
| Reference Standard | IEC61032 IEC60529 |
Packing&Shipping
Packed with Aluminum foil box Express/By Air/By Sea
Company Information
AUTOSTRONG is a reputed manufacturer of Laboratory safety test equipments and has engaged in Research &Development and Manufacture test equipments for many years. All our products are strictly designed and manufactured in accordance with IEC,CE,EN, VDE,ASTM,ISO and other international standards.
