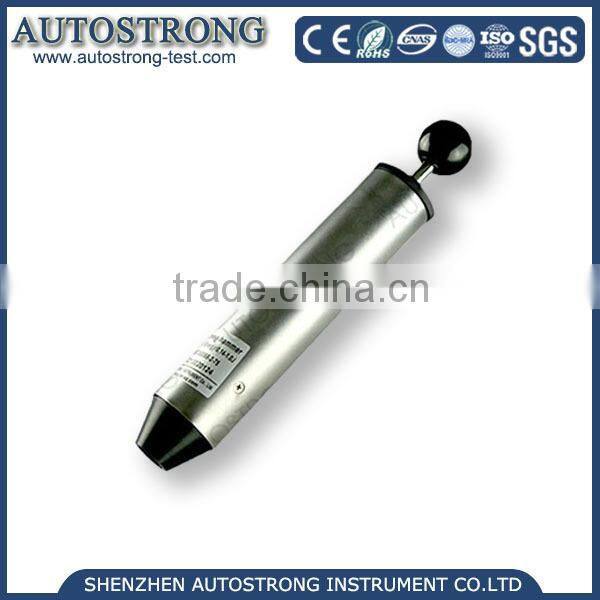

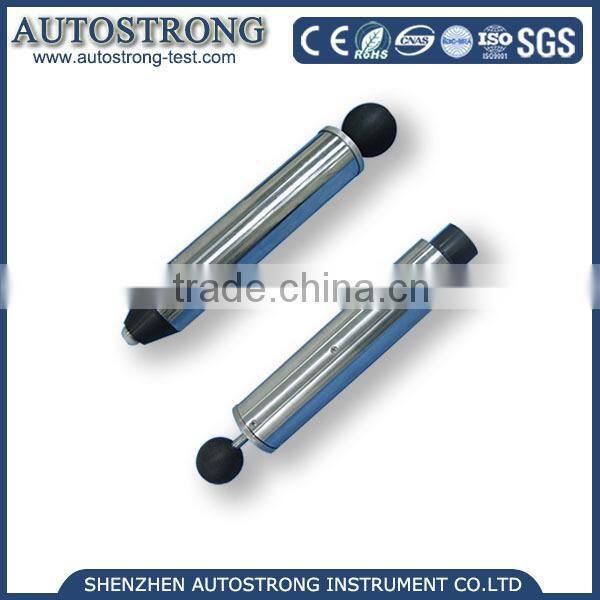

IEC60068 Electric Impact Hammer

 (1) IEC60068-2-75 Spring Impact Hammer is strictly designed according to IEC60068-2-75,GB/2423.55-2006.GB4706.1 and GB8898 standard.

(2)After applying the impact with the hammer, the products is examined with accessibility probes to determine access  to chock, energy,and injury hazards. Built in exact accordance to IEC/EN/UL/CSA and other standards.

Application:

Adjust the impact severity by rotating the knurled cap until the desired energy-value is displayed. Pull the knob slowly out of the device until it locks in place. If moved too fast, the clamp may skip its arrester and will lock at its way back when the pulling force declines.  Hold the  device horizontally  at it’s housing tube  and press the (black)  release  cone to the specimens plane of impact. The strike is automatically released when the release force threshold is reached

Types:

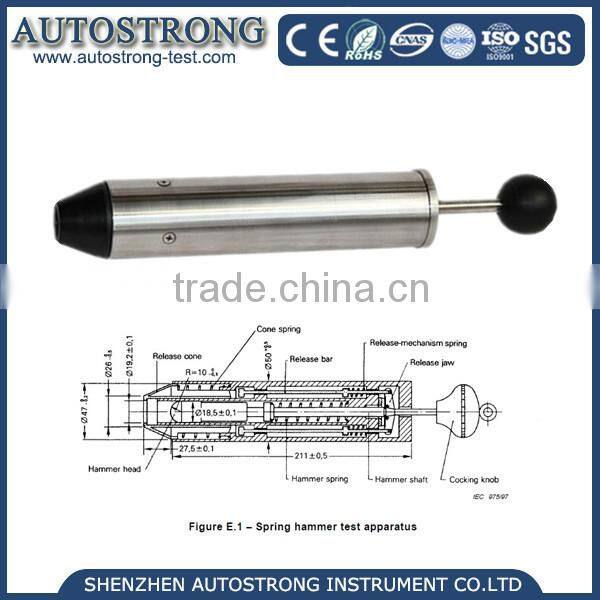

Length:211mm;Weight:1250g;

OD:50 mm;Hammer

Weight:60g;

Hammer radius:10mm ;

Impact Components:

including the hit ball handle the hammer,

weight 250g,

hammer head is made from white polyethylene imine first

The release force of impact :<10N.
