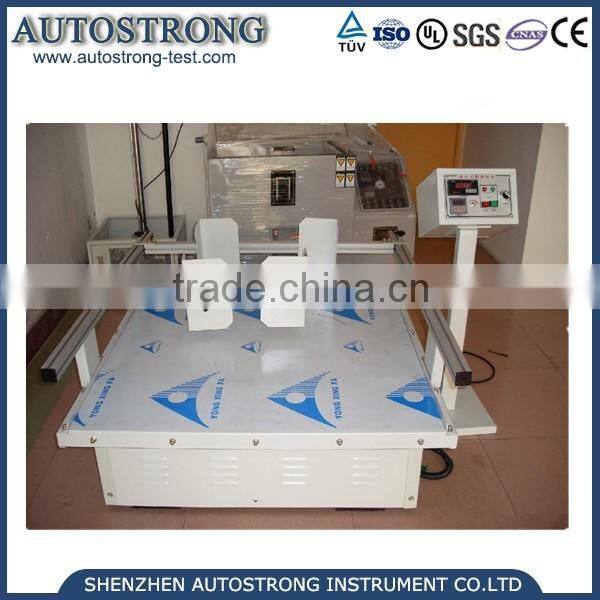

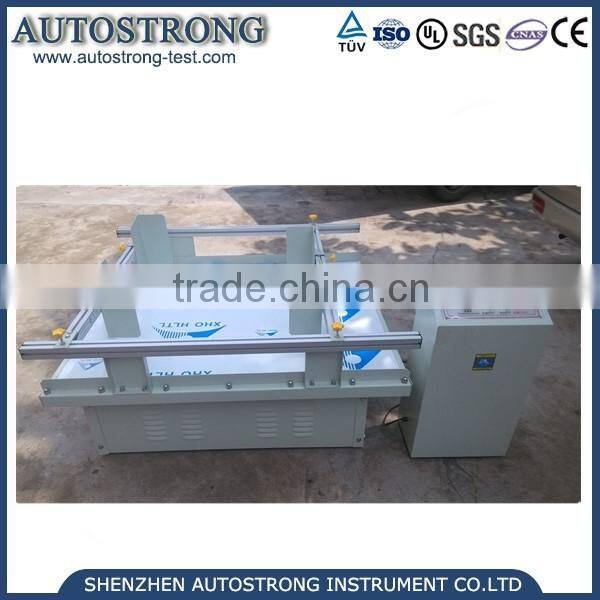

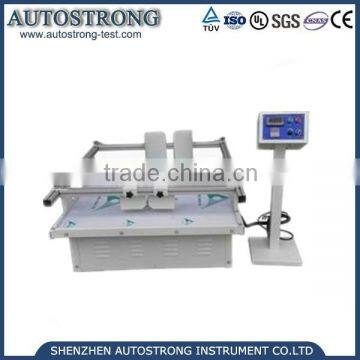

ISTA/EN71 China vibration test table
Introduction:
ISTA/EN71 China vibration test table is based on the United States and European transport standards, and with reference to the United States of similar equipment to improve manufacturing. The use of eccentric bearings in rotating elliptical trajectories generated to simulate a car or ship the goods during transport the vibration of the collision. Test platform will be fixed on the eccentric bearing, when the eccentric bearing rotation, the test platform for the entire plane would produce an oval-shaped upper and lower front and rear movement, adjust the eccentric shaft with the rotation speed is equivalent to adjust the speed of motor vehicles or vessels.
Main Features:
1.Digital instrument display vibration frequency;
2.synchronous belt transmission mute, very low noise;
3.test items using clamping rail type, easy to operate, safe;
4.machine using heavy-duty channel steel base with anti-vibration pad, easy installation, smooth operation, without Install ground pin screw;
5.DC motor speed control, running smoothly, load capability;
6.rotary vibration (commonly known as Valley-type).
To meet the criteria:
This ISTA/EN71 China vibration test table meets the following standards: GB / T 4857.7-92 "transport package fixed-frequency sinusoidal vibration test method"
Applications Industry:
The ISTA/EN71 China vibration test table applies to toys, electronics, furniture, gifts, ceramics, packaging and other products packaged to simulate the transport tests, in line with the United States and European transport standards.
Speed |
100-300RPM |
Speed display precision |
0.1RPM |
Vibration mode |
reciprocating |
Vibration amplitude |
1 inch(25.4mm) +15%, to agree with ISTA/EN71 transportation standard |
Max load |
100 pounds |
Effective test area |
100×90cm can be customized |
Speed accuracy |
no more than ±3RPM |
Time setting range |
0~99.99hour |
Motor power |
1HP |
Max current |
5A |
Power |
220V 50Hz single phase |
Dimention |
110×100×70cm |
Advantages:
1. 1 year warranty
2. ISO17025 is free offered
3. ILAC and CNAS can be offered if required
4. ISO9001, CE , ROHS, SGS certification
5. Our export products are in English data, no chinese.
6. For machines , we can offer video for customer reference
