2013 hot handheld laser barcode scanner
English manual TC-2015
Handheld Laser Barcode Scanner Feature:
1. Digital plastic decoding;
2. All independent intellectual property rights;
3. 32 bit built-in microprocessor CPU;
4. Handle comfortable and easy to operate;
5. Multiple decoding ability;
6. The lifetime of button is up to 50 million times;
7. The design with standard anti-shock and anti-drop;
8. To set the prefix and suffix yards
9. Support more than 20 countries’ keyboard output.:
Handheld Laser Barcode Scanner TC-2015
| Laser Barcode Scanner Tc-2015 | |
| Functionality Item | Performance Parameter |
| Type of illuminant | 650nm laser |
| Use type | Hand-held or bracket-held installation |
| Bit error rate (BER) | 1/5 million |
| Safety performance | Meet the Grade II National Criteria for Laser Safety |
| Barcode types | EAN-8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codaber,Industoal 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI, Chinese postcode etc. |
| Interfaces | USB ,COM, PS2 |
| Scanning method | Automatic |
| Transmission rate | RS232 Baudeate:2400-38400 |
| Resolution (pcs0.9) | 0.10mm(4mil) |
| Depth of field | 10-420mm (pos09 density 0.25) |
| Reading speed | 100 times/second |
| Reading preciseness | 0.40-0.825mm |
| Reading distance | 10-520mm |
| Reading angle of elevation | 60° |
| Reading angle of dip | 45° |
| Operating temperature | -20°C-45°C |
| Storage temperature | 20°C-45°C |
| Operating humidity | 5%-85% |
| Storage humidity | 5%-85% |
| Power voltage | 5V |
| Working current | 57mA |
| Static current | 36mA |
| Fall test | 100 times/1.5m |
| Light intensity | Daylight, 4000Lux |
| Electromagnetic interference | Complying with en50081, par1 criteria |
| External electromagnetic interference resistance | Complying with en50081, par1criteria |
| Dustproofing and waterproofing | Complying with en50081, par1 criteria |
| Materials | ABS+PC |

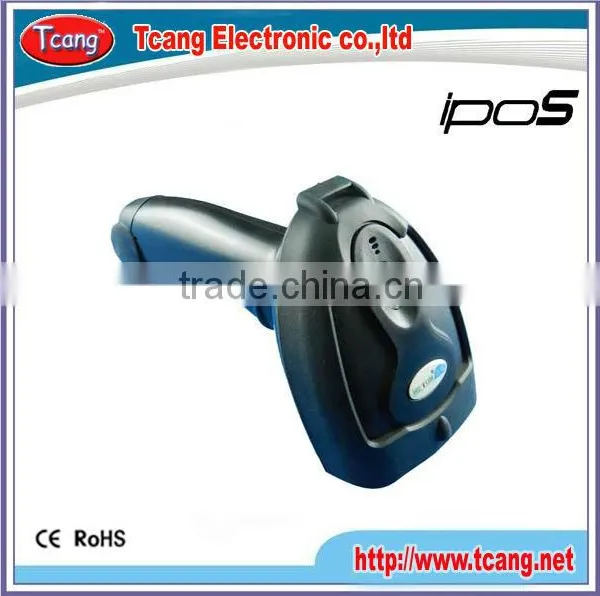

Handheld Laser Barcode Scanner Show
----------------------------------------------------------------------------------------------------------------------------------------------------------------
-----------------------------------------------------------------------------------------------------------------------------------------------------------------
1. Certifications:
CE, FCC, ROHS,
2. QC Staff:
12 QC employees with more 5 years experience will guard our products quality before goods are sending out. Meanwhile our 10 engineers is ready to provide momentarily the most professional technology and customization for you. That is why we always stay ahead of the competitors.
3. Market
USA, Canada, Bolivia,Ecudor, Colombia, Chile, Russia,Romania
Australia,China,Romania,France,Germany,Ghana,Morocco,South Africa,Argeria,Vietnam,Philippines,Thailand
------------------------------------------------------------------------------------------------------------------------------------------------------------------
Application :
