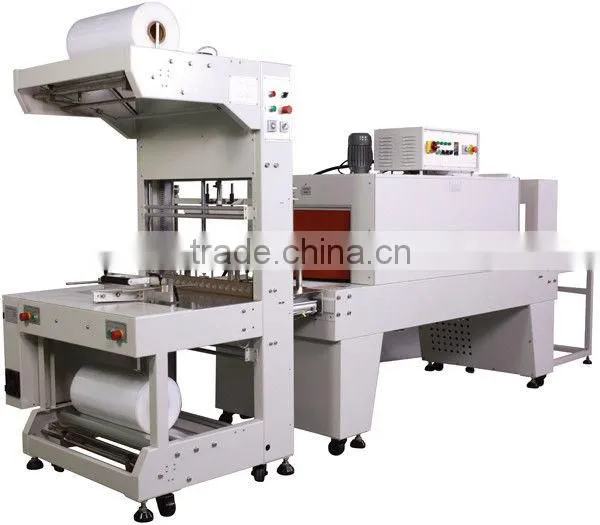

Semi-automatic Sleeve Shrink Machine
US$ 1 - 20,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Food, Beverage, Commodity, Medical, Chemical, Other, Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware
Packaging Type:
Cartons, Cans, Bottles, Barrel, Bags, Case
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Fully Close Sleeve Shrink MachineUS$ 1 - 20,000MOQ: 1 Set -
Stacking Sleeve Shrink MachineUS$ 1 - 20,000MOQ: 1 Set
-
Frontal Feeding Sleeve Shrinking MachineUS$ 1 - 20,000MOQ: 1 Set
-
Automatic Shrink PE Film Sealing MachineUS$ 2,000 - 50,000MOQ: 1 Set
-
Automatic Shrink PE Film Tunnel Sealing MachineUS$ 2,000 - 50,000MOQ: 1 Set
Condition
New
Application
Food, Beverage, Commodity, Medical, Chemical, Other, Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware
Packaging Type
Cartons, Cans, Bottles, Barrel, Bags, Case
Packaging Material
Plastic, Paper, Metal, Glass, Wood
Automatic Grade
Semi-Automatic
Driven Type
Other, Mechanical, Pneumtic, Electric
Voltage
220V/380V
Place of Origin
Shanghai, China
Brand Name
Hujia
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Semi-automatic Sleeve Shrink MachineSteady Performance
Guaranteed Quality
Competitive Price
Life Long Service
Semi-automatic Sleeve Shrink Machine
- Features
- HJ-6030 adopts top brand cylinder in order to work stably when it pushing and sealing
- Special design of the sealing blade makes sealing line deep-set, and avoids the film sticking the cutter
- The electric spare parts are all top brands in order to make the machine works stably and perform perfectly
- Covert cylinder enhances the convenience for the operator; pressuring device ensures the product without dithering, even the light ones
- Adjustable front feeding frame ensure packing different shape products perfectly
- HJ-6040S adopts double motors to blow the hot air reach every corner inside the tunnel to make sure the perfect performance of shrinking
- Adopts solid steel roller with durable silicone pipe, chain conveying
- HJ-6040SM is a thick shaft roller style, for packing small size product specially
- The speed of the conveyor is controlled by frequency inverter
- Shorter length of the tunnel body can save the energy, meantime good performance
- HJ-6030 + HJ-6040S is a simple and economic model of the sleeve wrappers series. It uses PE film, easy to operate, just push a button by hand to make the sealing automatic
- HJ-6030 + HJ-6040S combines the sealer and tunnel together, saving the working room, suit for the limited area
- On the two sides of the machine, there are safe covers, to protect operators
- Introduction
- Uses to packing beverage, beer and mineral water with or without tray
- For shrinking wrap electric appliance, auto spares, furniture and floor board etc
Welcome visit our factory.
For more techncal information, pls contact us.
Model |
HJ-6030 |
HJ-6040S/SM |
Machine dimension L×W×H(mm) |
1129×1305×1991 |
2400×900×1690 |
|
|
|
Tunnel dimension L×W×H(mm) |
/ |
1500×600×400 |
Max packing size L×W×H(mm) |
500×300×300 |
1300×400×300 |
|
|
|
Sealing size L(mm) |
700 |
/ |
Temperature (0C) |
0-200 |
0-400 |
|
|
|
Height of work table (mm) |
850±50 |
850±50 |
|
|
|
Packing speed(pcs/min) |
5-8 |
20-25 |
|
|
|
Net weight (kg) |
300 |
500/550 |
|
|
|
Power (kw) |
1 |
20 |
|
|
|
Power supply |
3PH 220V/380V 50/60Hz |
3PH 220V/380V 50/60Hz |
|
|
|
Air pressure (kg/cm2) |
6-8 |
/ |
|
|
|
Applicable film |
PE |
PE |
