Specifications
1. automatic lubricant oil filler equipment2. Pneumatic
3. Video Available
4. recommended by Many customers

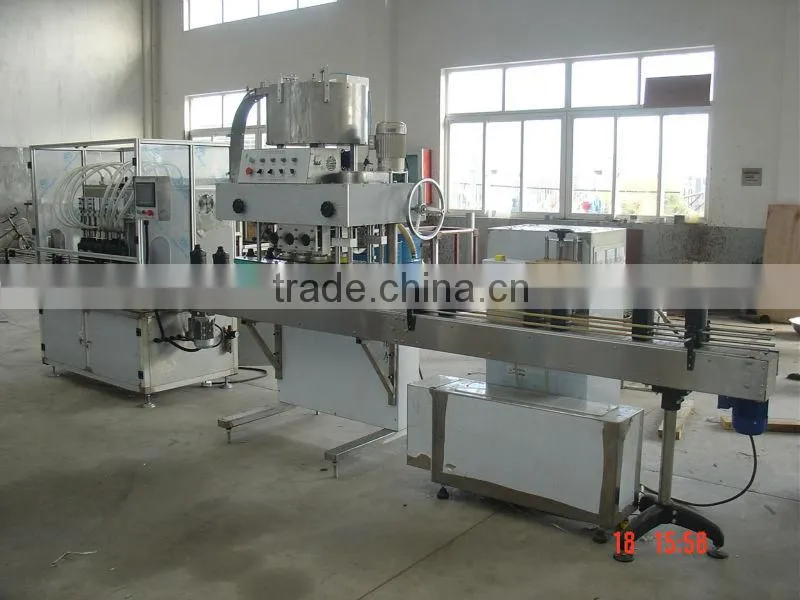

ZXG Fully Automatic Lubricant oil filler equipment
Linear Filling Machine is widely used in packaging pipeline for medicine, foods, pesticides, and chemical industry and so on. it adopts Frequency controlled drive, and transportation exit is adjustable. so it could meet different packaging machinery pipeline request.
Linear Filling Machine use PLC programmable control, with 5.7 inches touch-screen human-machine interface system, and use piston controlling filling material flow to met the request of kinds of measurement filling. Structure compact, used for both big and small bottle and changeable bottle. we adjust the machine instead of replacement parts when we change bottle condition. this machine adopts mainly machinery linear motion way for design.
It aim at auto-controlled by means of PLC programmable controller, kinds of induction device and air vat release, and completely meet GMP standard, simply operated. It could change different container for filling during short time so that it could reach several use with one machine.
Our Normal models:
Speed for 1L
ZXG-4(four head) 12-16bottles/min
ZXG-6(six head) 18-24bottles/min
ZXG-8(eight heads) 24-32bottles/min
ZXG-10(ten heads) 30-40bottles/min
ZXG-12(twelve heads) 36-48bottles/min
Technical Parameter:
Filling Scope |
250g-4000g |
Filling Speed |
|
Measure Precision |
<=+/-2% |
Power |
500W |
Voltage |
380V 50HZ |
Air Pressure |
0.5Mpa |
Net Weight |
300kgs |
Electric configure: PLC(MITSUBISHI), TRANSDUCER(MITSUBISHI OR PANASONIC) ,SNESOR(SICK), Time Relay(Omron), Button and contactor(SCHNEIDER). Air Button(MERLINGERIN), touch screen (HITECH)
This series filler is used in foods, daily chemicals, agrochemicals, medicine,etc.
1. Air pressure stability, material uniformity and filling speed will affect the filling accuracy.
2. Materials, size of filling head and skills of operator will affect the filling speed.
3. This machine has two filling ways, foot and automatic, and they can be switched randomly.
4. This machine uses the extension valve for is wear-resisting, acid proof, the thermostable four fluorine material, when clean cannot at will strike, the collision.

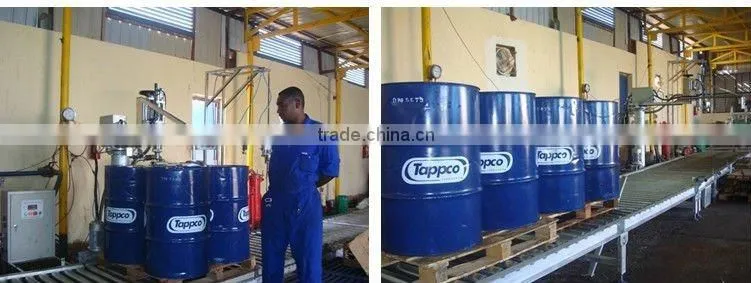

We have many cases such as follows. This machine is widely used in filling pipeline. In additional, we produce barrel, pail, drum filling machine and filling line. If you have any interested, pls kindly send me email by alibaba. Thanks
