Help CenterGFE 20L Paint Pail Weighing Filling Machine
Related Products
-
GFE-200 Lube Oil Drum Weighing Filling MachineUS$ 7,870 - 7,870MOQ: 1 Piece -
DZQ-600L Air Flushing Vacuum Packaging MachineryUS$ 3,000 - 3,000MOQ: 1 Piece
-
GFE-5 Automatic Five Heads 20L Brake Fluid Weighing Filling and Capping Machine(weighing Filling Line)US$ 9,700 - 48,400MOQ: 1 Piece
-
GFE-5 Automatic Five Heads 18l Brake Fluid Weighing Filling and Capping Machine(weighing Filling Line)US$ 9,700 - 48,400MOQ: 1 Piece
-
GFE-5 Automatic Five Heads 20kg Brake Fluid Weighing Filling and Capping Machine(weighing Filling Line)US$ 9,700 - 48,400MOQ: 1 Piece
Specifications
1. Paint pail filling machine2. Easy to maintanance
3. CE available

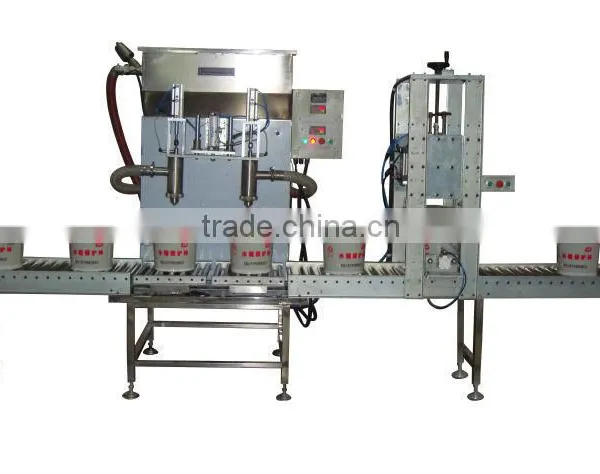

paint pail filling machine
1 Working Principle
This machine adopts two heads two working semi automatic type which turn and push the arm to fix the filling position. Both mass and thin filling are finished automatically. Then capping the drum. Weighing system use precision sensor and meter which has the function self-correcting and zero automatic follow. This machine could be set as net weight filling and gross weight filling according to user's request. Filling system adopts mass and thin filling to make sure filling precision and speed. It could work with manual and automatic filling operation conveniently. It could keep work table clean matched with vacuum absorb system.
2 Technical Parameter(1 set)
2.1 Drum Volume: 10-80kg/drum
2.2 Filling precision: ≤±0.2%
2.3 Filling speed:40-80drums/hour
2.4 Air Supply: 0.45~0.8MPa
2.5 AC220V 50Hz
2.6 Air Consumption:<0.5m3/hour(1set)
2.7 Electric Consumption: <0.2KW(1set)
2.8 Environment Temperature: 10-40degree
3 Machine Supply Range:
Filling Machine 1set
Pneumatic Capping Machine 1set
Roll Conveyor Line 1set
4 Description:
At first, forklift move the pallets on the empty pail conveyor machine. Please turn the filling mouth of the pail to meet the filling nozzle.Press start button and the filling nozzle descend. When the filling position is right( filling position close switch is not light), filling starts. Or the filling nozzle lift, then should adjust the filling nozzle and drum mouth position well, and press start press again.
When filling nozzle descend to the lowest position, both mass and thin filling valve open. When weight reach thin filling setting volume, mass filling valve(Big pneumatic globe valve) closed. When filling volume reach weight setting digit, filling nozzle air valve closed, and filling nozzle lift to the highest position. And put the pails to the pneumatic capping screw device position to capping screw.
5. Electric configure:
PLC(MITSUBISHI), TRANSDUCER(MITSUBISHI OR PANASONIC) ,SNESOR(SICK), Time Relay(Omron), Button and contactor(SCHNEIDER). Air Button(MERLINGERIN), Pneumatic parts(Airtac)
