LB Bench Drilling Machine,small cnc milling machine

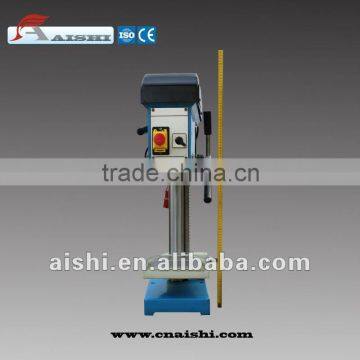

Name: LB Bench Drilling Machine,small cnc milling machine
Brand: AISHI
Availability: InStock

FOB Price

USD $100 - $1,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Aishi machine is perfect for mass producing and training purpuses small cnc milling machine

Model:LB Bench Drilling Machine

· An electromechanical integration design ensures the advanced and reasonable structure, and a wide range of application.

· LB drilling machine is produced according to the European Union standard and having the best-selling all over the world.

· Belong to high quality, high precision drilling machine.

· small cnc milling machine .

Item	Parameter
Model	LB1 LB1/1 LB2
Max. Drilling capacity	Φ18 Φ23
Spindle taper	MT2
Max. travel of Spindle	75mm
Max .distance from spindle nose to worktable	330mm
Max .distance from spindle axis to column	185mm
Column diameter	70mm
Table-working surface	240×290
Drive	Belt
Spindle speed range	400-3600r/min 200-3600r/min
Spindle speed steps	5 10
Main motor	0.45Kw 0.45/0.75Kw
Machine dimension	600×280×1710
Net weight	80Kg 85Kg

Materials and specifications are subject to change without notice.
