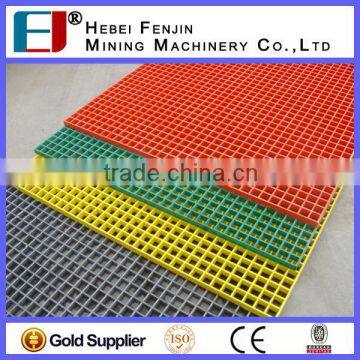

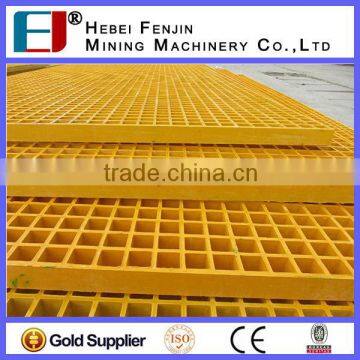

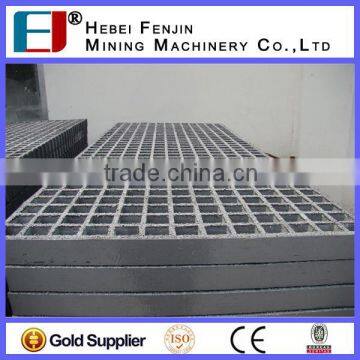

Sewage Treatment Plant Used FRP Grating With ISO Certificate
FRP Sewage Grating Introduction
FRP molded grating is a kind of plate material with a certain aperture ratio,with unsaturated polyester resins(including isophthalic,orthophthalic,ethylene and phenolic aldehyde types etc.) as matrix,fibreglass roving as skeleton. It is produced by special processes with custom mould.
FRP Sewage Grating Standard Panel
|
Thickness (mm) |
Panel size (mm) |
Mesh size (mm) |
Bar thick (mm) |
Panel Wt.per m2 |
Weight (Kg) |
|---|---|---|---|---|---|
| 25 | 1007x2007 | 40x40 | 6.5 | 12.8Kg | 25.8 |
| 1220x3660 | 38x38 | 6.5 | 13.4Kg | 60.0 | |
| 1007x4007 | 40x40 | 6.5 | 12.8Kg | 52.0 | |
| 1220x3660 | 25x100 | 6.5 | 13.8Kg | 62.0 | |
| 1220x3660 | 38x38/19x19 | 6.5 | 16.8Kg | 75.1 | |
| 30 | 1007x4007 | 40x40 | 6.5 | 14.8Kg | 60.0 |
| 1220x3660 | 38x38 | 6.5 | 14.7Kg | 65.6 | |
| 1220x3660 | 38x38/19x19 | 6.5 | 18.4Kg | 82.2 | |
| 38 | 1220x3660 | 38x38 | 6.9 | 18.7Kg | 83.5 |
| 1007x4007 | 40x40 | 6.9 | 18.8Kg | 76.0 | |
| 1220x3660 | 38.1x152.4 | 6.9 | 16.0Kg | 71.5 | |
| 1220x3660 | 38x38/19x19 | 6.9 | 23.5Kg | 105.0 | |
| 40 | 1007x3007 | 40x40 | 7.0 | 19.8Kg | 60.0 |
| 1007x4007 | 40x40 | 7.0 | 19.8Kg | 79.9 | |
| 50 | 1220x3660 | 50x50 | 8.0 | 21.3Kg | 95.1 |
FRP Sewage Grating Surface
FRP Sewage Grating Resin Options
1 VINYL ESTER RESIN SYSTEM
Provides the maximum level of corrosion resistance to aggressive chemical environments. Use in applications where contact with harsh chemicals, caustics or bleach is frequent.
2. ISOPHTHALIC RESIN SYSTEM
A resin system offering an intermediate level of chemical resistance in moderately corrosive environments. A recommended material for applications involving splash or spill contact with chemicals.
3.ORTHOPHTHALIC RESIN SYSTEM
An economical general purpose resin system for grating applications requiring good strength with minimal contact with harsh chemicals.
FRP Sewage Grating Properties
1) Safety: FRP is recommended when corrosion protection and safety are your goal.
2) Stability: Expansion and contraction is 24% and 50% less than aluminum and steel, providing greater dimensional stability.
3) Durability: Superior durability to Stainless Steel, Aluminum, especially in highly corrosive environments
4) Strength: 50%higher tensile strength than hot rolled steel and better impact resistance.
FRP Sewage Grating Installation Method
Type "M" Saddle Clips: secure molded or pultruded panels to a support using two adjacent bearing bars.
Type "C" End Panel Clips: simplified mechanical method to connect adjacent molded fibergrate panels.
Type "L" Hold Down Clips: secure molded grating panels to a support using one bearing bar

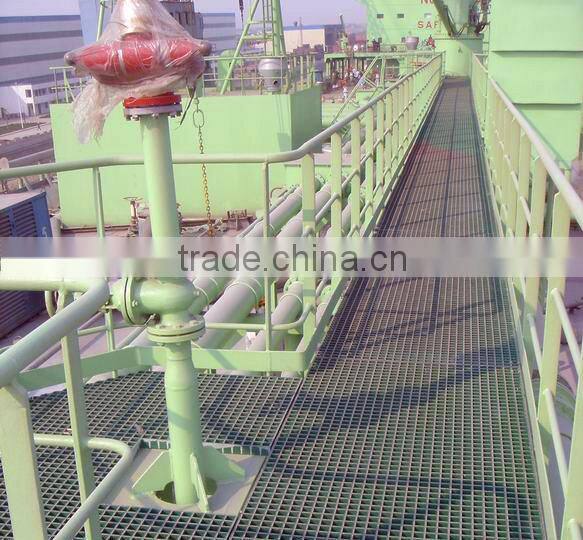

FRP Sewage Grating Applications
Applications for Fenjin FRP Grating include:
1 Walkways
2 Platforms
3 Protective Shielding
4 Machinery Housings
5 Raised Floors
6 Stairways
FRP Sewage Grating Certifications
FRP Sewage Grating Packaging & Shipping
FRP Sewage Grating Production Line
1 ISO Management and BV audited company
2 Various style of FRP products for you choose, like frp water tank, frp grating, frp cooling tower, frp profiles, etc
3 We offer competitive price with good quality products
4 We have the most convenient transport and prompt delivery.
5 We supply good after-sales service, we will follow up each situation, if have problems, we will find out the reason and deal with positively.
Q: 1. Can I have a sample order?
A: Yes, sample is available. Mixed samples are acceptable.
Q: 2. What is the lead time?
A: Usually 7 days or according to quantity
Q: 3. What is the minimum order quantity?
A: Our MOQ is 50 square meters
Q: 4. What is the price policy of your company?
A: The price is different according to the order quantity , the more the cheaper.
For more detailed information, you can contact us freely
Q: 5. What is the package?
A: We offer pallets, wooden case, steel frame packaging, or according to customer's demand
Q: 6. Can I visit your company?
A: Welcome, look forward to your arrival and we will pick up you from Beijing airport and lead you to visit our factory
