Specifications
SAW Wire1,stable arc,low splashing ,high deposited effeciency
2.used in ship-making, large steel strcture,pressure vessels

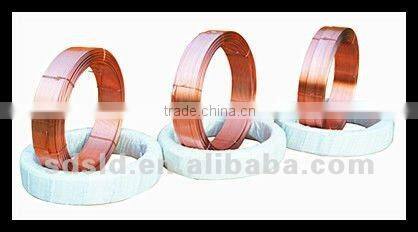

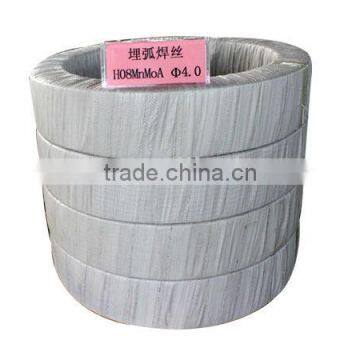

4.0mm SAW wire H08MnMoA!!! Submerged arc Welding Wire
1 Application
used in ships, lifting transport equipments, vehicles, engineering machinery, power stations, petrochemicals, boilers, pressure containers, steel construction and other low alloy steel structures with corresponding solders.
2 Features
Low carbon, high manganese, high silicon for superior mechanical properties and bead appearance even when welding over large amounts of rust and dirt. Copper Coated for less friction and oxidization. Use with 100% carbon dioxide, or high argon shielding gases.
3 Chemical Composition
| C | Mn | Si | P | S | Ni | Cr | Cu | Mo | Ti |
| 0.08 | 1.34 | 0.14 | 0.015 | 0.013 | 0.011 | 0.021 | 0.14 | 0.38 | 0.06 |
4 Mechanical performance
| Tensile strength Rm(mpa) | Yield Strength(mpa) | Elongation Raton(%) | Fracture Energy(J) |
| 618 | 495 | 25 | 101 |
5 Packing
1 25kg-300kg/coil
2 200kg 250kg iron or wooden plate
3 25kg iron basket
4 as requested
