Specifications
Gas shielded AWS A5.18 ER70S-2 welding wire1.0.8mm,1.0mm,1.2mm,1.6mm
2.5kg15kg20kg/spool;250kg350kg/drum
3.ABS,ISO,GL,CE,NK
Gas shielded AWS A5.18 ER70S-2 welding wire
1. Available size: 0.8mm, 0.9mm, 1.0mm, 1.2mm, 1.6mm
2. Available packing: 5kgs/spool/carton, 15kgs/spool/carton, 250kgs/drum,1kgs/5kgs/15kgs packing,19 or 20 pallet in one 20ft container. . We could do according to the customers' request.
3. Certificate: ISO9001, GL, DNV, ABS,CCS GL,NK,BV
Reference Current (DC+)
Wire Size(mm) |
Welding Current(A) |
CO2 Flow Rate(L/min) |
φ0.8 |
50~100 |
15 |
φ1.0 |
50~220 |
15~20 |
φ1.2 |
80~350 |
15~25 |
φ1.6 |
170~550 |
20~25 |
Why choose us Solid Brand
1.Direct factory manufacturer with competitive price for ER70S-6
fessional service
3 Factory guaranteed quality and original only
4.delivery Time flexible and fast
Certification
1 Application: widely applied to all kinds of fields like automotive industry, construction machinery production, shipbuilding, metallurgical equipment production, bridges, civil works, petrochemical industry, production of pressure vessels of boilers, locomotive vehicles, etc
2 Feature: Low welding costs.
High productivity and low electricity consumption.
Easy to operate.
All-position welding.
Very low hydrogen content in the weld and lower nitrogen content.
Excellent crack-resistance.
Little deformation after welding.
Wide applicability.
Suitable for welding thin, medium and thick plates
3 Chemical composition
| C | Mn | Si | P | S | Ni | Cr | Cu | Mo | Ti | V | Al | Zr |
| 0.05 | 1.21 | 0.62 | 0.010 | 0.013 | 0.06 | 0.03 | 0.16 | 0.02 | 0.08 | 0.007 | 0.007 | 0.08 |
4 Mechanical performance
| Tensible strength | Yield strength | Elongation ration | Frature Energy | Shielding gas |
| 572 | 465 | 27 | 89 | 80%Ar+20%CO2 |

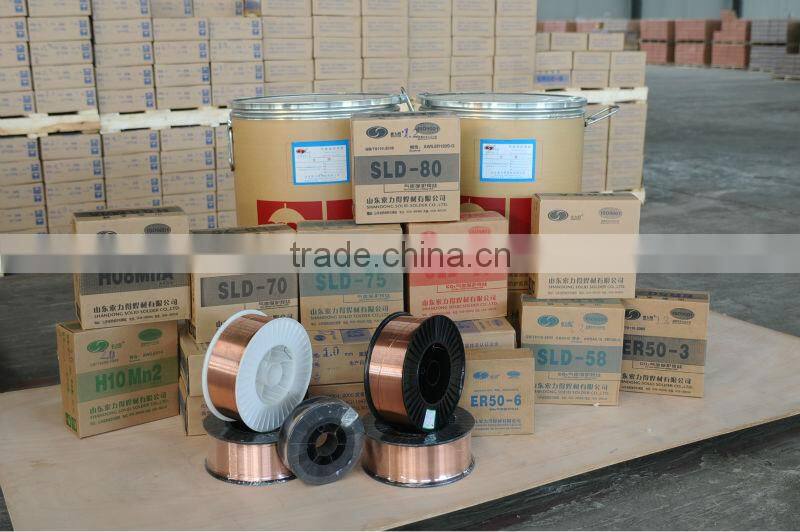

5 Package:
1 net weight: 1kg, 5kg, 12.5kg 15kg 20kg per spool, 250kg/drum 350kg/drum
2 precision layer wound on plastic spool, each spool in a paper box, then boxes on pallet.
3 metal spool and plastic spool D270MM D300MM K300MM
4 OEM package
product:
