YG6/YG8 tungsten carbide brazed blades
- 20 Ton / Tons per Month
- any chinese ports
- T/T
Product Details
Place of Origin: | Hunan, China | Brand Name: | zhuzhou tongyi | Model Number: | various |
Product Description

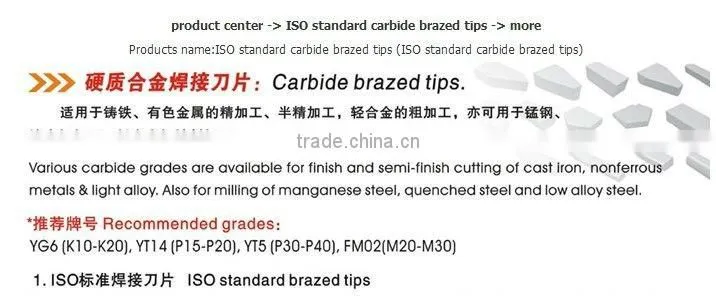

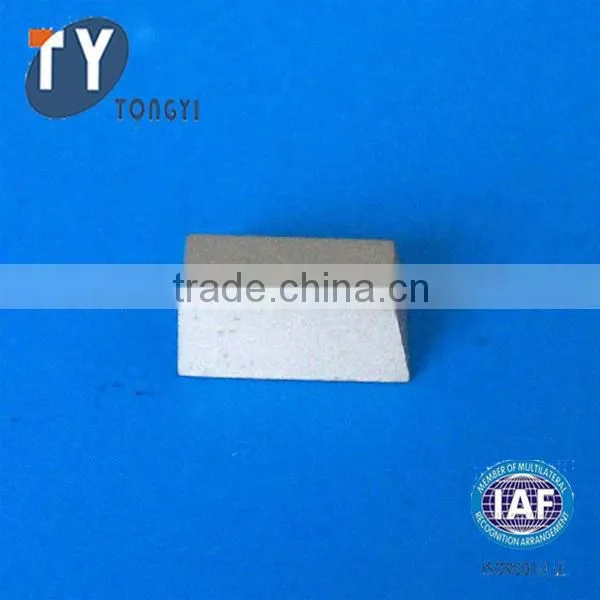

YG6/YG8 tungsten carbide brazed blades
zhuzhou tongyi Cemented Carbide Co., Ltd is one of the most professional cemented carbide rods manufacturers located in Zhuzhou City, the world-renowned cemented carbide base. Having been involved in this field for over 10 years, we have rich experience in both production and research of carbide products.
Advantages of our cemented carbide tips:
1. made from 100% virgin raw material;
2. produced with advance equipments and process;
3. all products go through in-process and final inspection.
4. free online technical service available.
5. stable and continuous production ability.
the way of transportion: TNT,UPS,DHL,FEDX,by sea, by air and so on.
Grade, properties and recommended applications for carbide tips:
Grade | Equal to ISO Category Number | Performance | |||
Density | Bend Strength | Hardness | |||
G/Cm3 | N/mm2 | HRA | uses | ||
YG3 | K01 | 14.9-15.3 | ≥1180 | ≥90.5 | sand-blasting nozzlesQualified for fine turning and half-fine turning when cast iron, non-ferrous metal, alloys as well as non-alloy materials cutting consecutively. Can make wire drawing of steel and non-ferrous metal. Also qualified for sand-blasting nozzles. |
YG3X | K01 | 15.1-15.4 | ≥1300 | ≥91.5 | |
YG6X | K10 | 14.8-15.1 | ≥1560 | ≥91.0 | Qualified for machining of chilled cast iron, alloy cast iron, refractory steel and alloy steel. Also Qualified for the machining of common cast iron. |
YG6A | K10 | 14.7-15.1 | ≥1580 | ≥91.0 | |
YG6 | K20 | 14.7-15.1 | ≥1670 | ≥89.5 | Qualified for finish machining and semi-finish machining for the cast iron, non-ferrous metal, alloy and unalloyed materials. Also qualified for wire drawing for the steel and non-ferrous metal, electric drill for geology use and steel drill etc. |
YG8 | K20-K30 | 14.6-14.9 | ≥1840 | ≥89 | Qualified for rough machining of cast iron, non-ferrous metal, nonmetal materials, drawing of steel, non-ferrous metal and pipes, various drills for geology use, tools for machine manufacture and wearing parts. |
YT15 | P10 | 11.1-11.6 | ≥1180 | ≥91.0 | Qualified for rough machining, semi-finish machining and finish machining during consecutive machining of carbon steel and alloy steel. |
YT14 | P20 | 11.2-11.8 | ≥1270 | ≥90.5 | Qualified for rough machining for rough face of carbon steel and alloy steel, half process during discontinuity cutting. |
YT5 | P30 | 12.5-13.2 | ≥1430 | ≥89.5 | Qualified for rough machining for rough face of carbon steel and alloy steel and discontinuity cutting. |
YW1 | M10 | 12.7-13.5 | ≥1180 | ≥91.5 | Qualified for finishing and semi-finishing machining of refractory steel, high manganese steel and common steel. |
YW2 | M20 | 12.5-13.2 | ≥1350 | ≥90.5 | Qualified for semi-finishing machining of refractory steel, high manganese steel and common steel. |
Standard export packing including or per customers' required
Company View
Zhuzhou Tongyi Industrial Co.,Ltd is located in the beautiful and convenient Jinshan industrial zone of Zhuzhou,a key transportation center and medium-sized city heavy industry in Hunan province.
Production Equipment
Testing Equipment
our company is well equipped with the high-level domestic machines for production and inspection.The company has invited famous cemented carbide experts in China as professional consultants and introduced multitudes of specialized talents.Currently,we can already customize the non-standard orders of special material and specification.Besides,the company has passed the ISO9001:2008 international quality system authentication.
Production Operation
To better handle the rapid increase of demand in the domestic cemented carbide market,we will make a further step to develop our products and expand our market,strive to build the company into a competitive private enterprise in the domestic cemented carbide industry and meet the increasing demand to the maximum level.
Enterprise Culture
Enterprise Culture
The company's quality policy:Quality comes first,Customers are supreme,Technology depends on innovation,Strive for the best.
The company's quality goal:Creat"tongyi"brand and seek for long-term development.
Our company advocates and makes great efforts to obey the following moral standards:
1.Our activities are based on mutual trust.
2.What we say and write is real and accurate.
3.Always choose the best way to finish all the takes at a high productivity and quality.
4.Our honest work is dedicated to the contribution to enterprise and society,as well as to the improvement of our lives'quality.
Company Certification
Corporate Clients
If you have any others question ,pls contact us and we will give you prompt response
If you are interested it, pls kindly contact us! Thank u!
