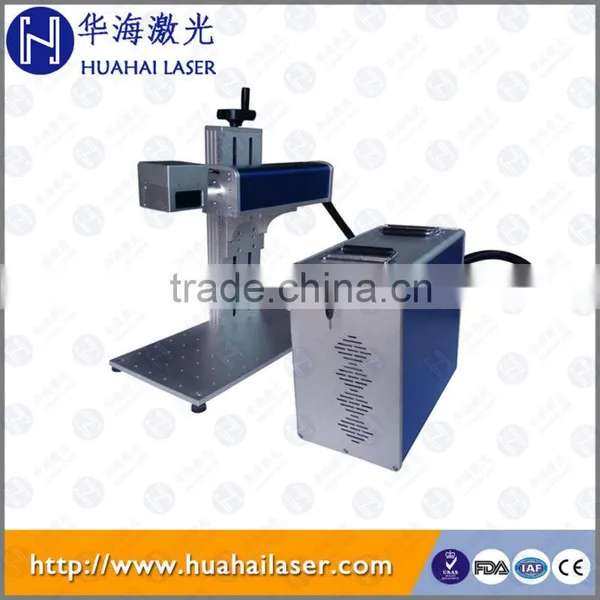

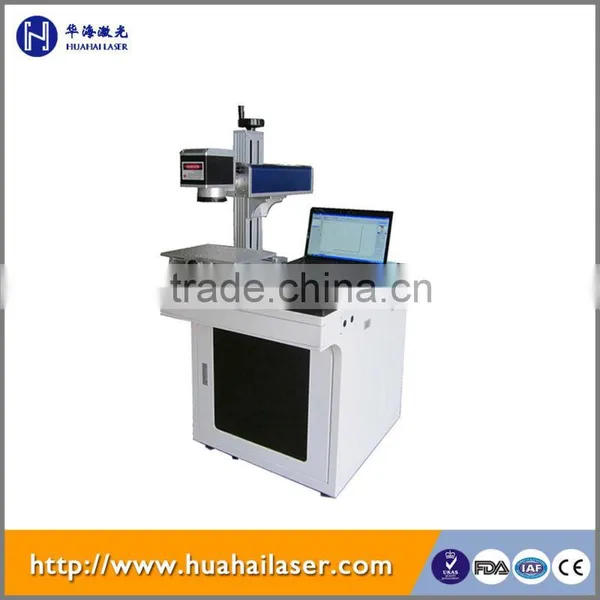

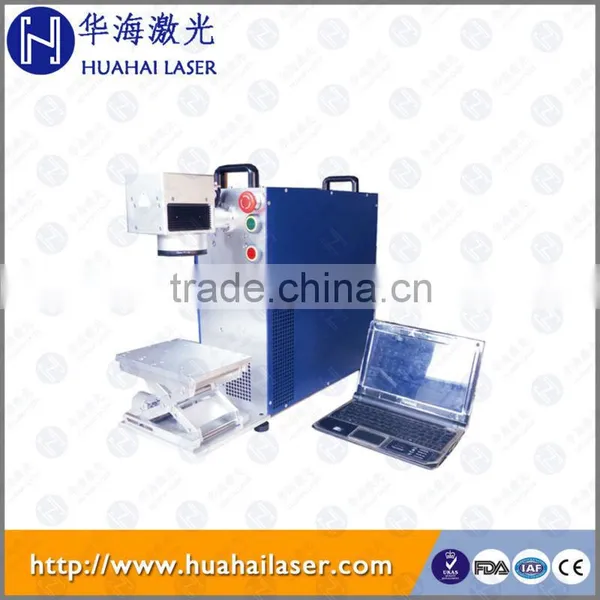

Huahai 20w mini fiber laser marking machine for bar code
laser marking machine for bar code
Technical Parameter:
Laser Power | 20W |
Laser Wavelength | 1064nm |
Laser beam quality | M2:1.5 |
Repeat Frequency | 20KHz-80KHz |
Repeat Positioning Accuracy | 0.005mm |
Min linear width | 0.01mm |
Marking Depth | 0.01-0.5mm |
Marking Speed | 7000mm/s |
Standard Marking Area | 110×110mm |
Optional Marking Area | 70×70mm/175×175mm |
Rated Power Consumption | <500W |
Operating Voltage | 220V/50Hz/15A |
Cooling | Air Cooling |

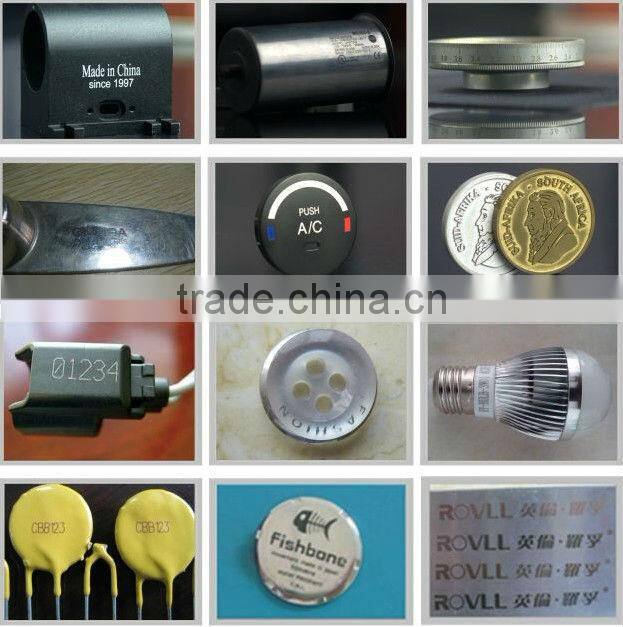

Application industries:
Gold,silver products----rings,earrings
Steel and Stainless steel products----bowl,cup,knife,mobile phone shell,locks,keys,cooking utensils,auto parts,dish
Copper products----turbine,copper plate,gear,copper bush
Aluminium alloy products--Anodised aluminum,Painted aluminum
Plastic products---- Keyboards,PVC tube
Other products---- ear tags,integrated circuits,moulds
Machine configuration:
Laser Power | Germany IPG |
Field and Beam Expander | Singapore |
Card and Software | Beijing,China |
Computer System | 19”LCD |
Training to Customer:
1.We will supply with the machine operation manual in English version.
2.For installation and operation, including introduction for the composing of equipment, working principle of equipment, common knowledge of computer, controlling principle of electric devices, daily maintenance measures of equipment. Personal demonstration for installation and adjusting of equipment, operation of equipment, programming of computer.
3.User can dispatch representatives to our factory for 2-3days for training.We are responsible for training them free of charge. While all the charges including traveling charge and accommodation will be afford by the user.
Please feel free to contact me if you have any questions about laser marking machines.
Please give me the following information, then we can recommend you the most suitable model.
- The exact material you want to mark? (gold,silver,copper,steel,aluminum,rubber,plastic....)
- The working area you demand? (max dimension of material, width*length, 110*110 mm, 70*70 mm, 175*175 mm...)
